10-8

Troubleshooting > Regular Maintenance

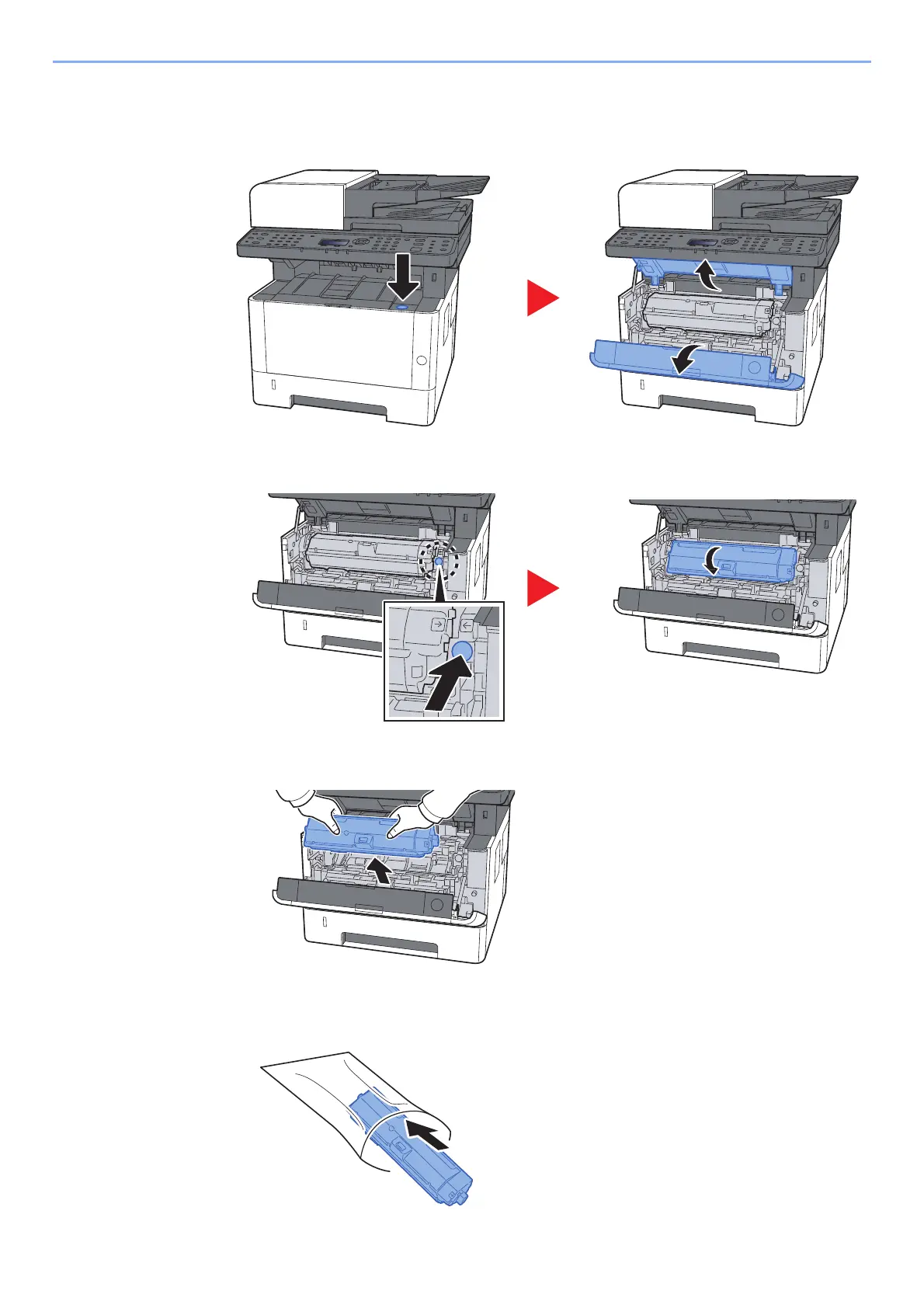

Replacing the Toner Container

Open the front cover.

Unlock the toner container.

Remove the toner container.

Put used toner containers into the plastic waste bag.
