Triumph Adler P-3521

To Next Page

To Previous Page

10-32

Troubleshooting > Clearing Paper Jams

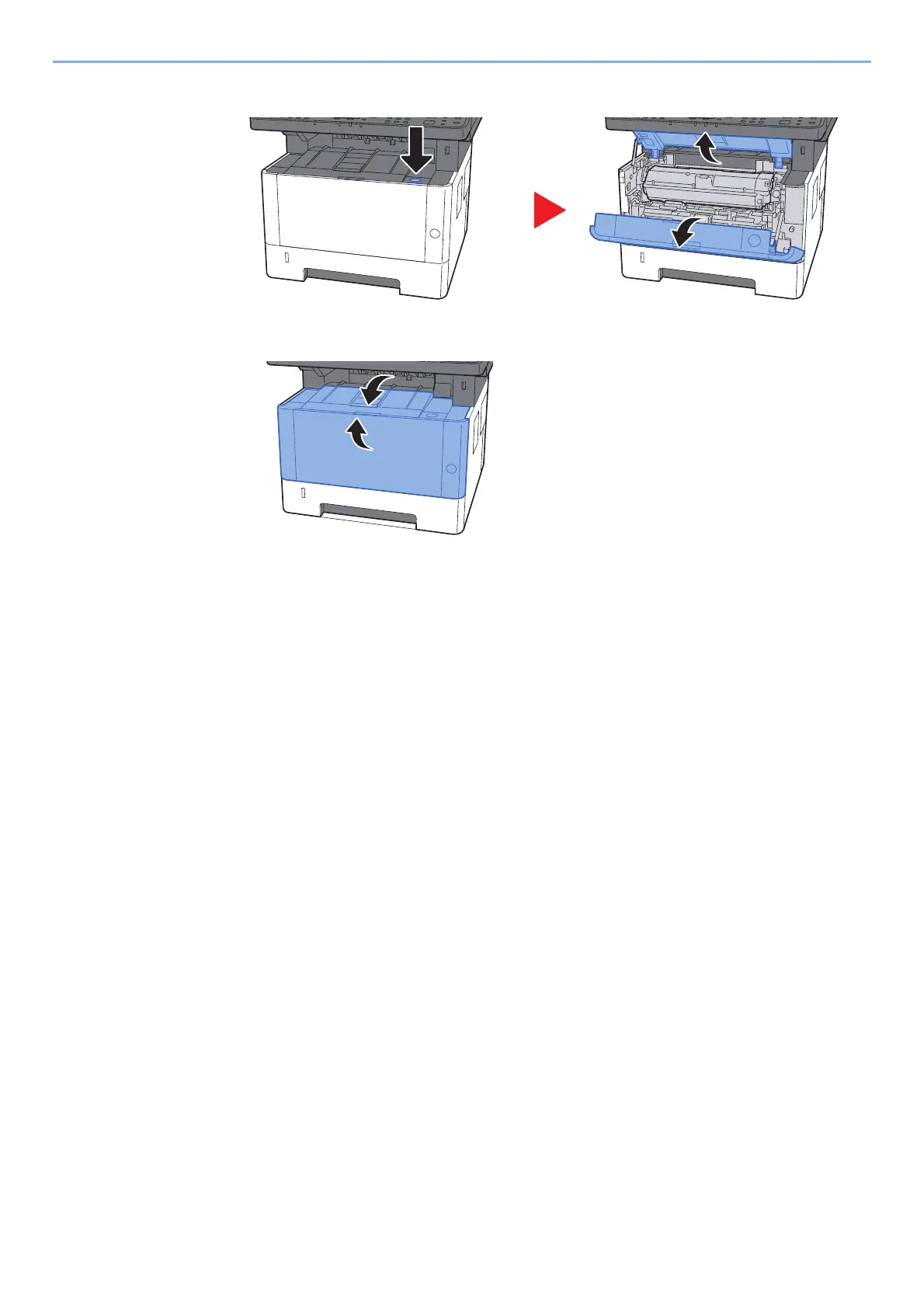

Open the front cover.

Close the front cover.
