Installing and Setting up the Machine > Embedded Web Server RX

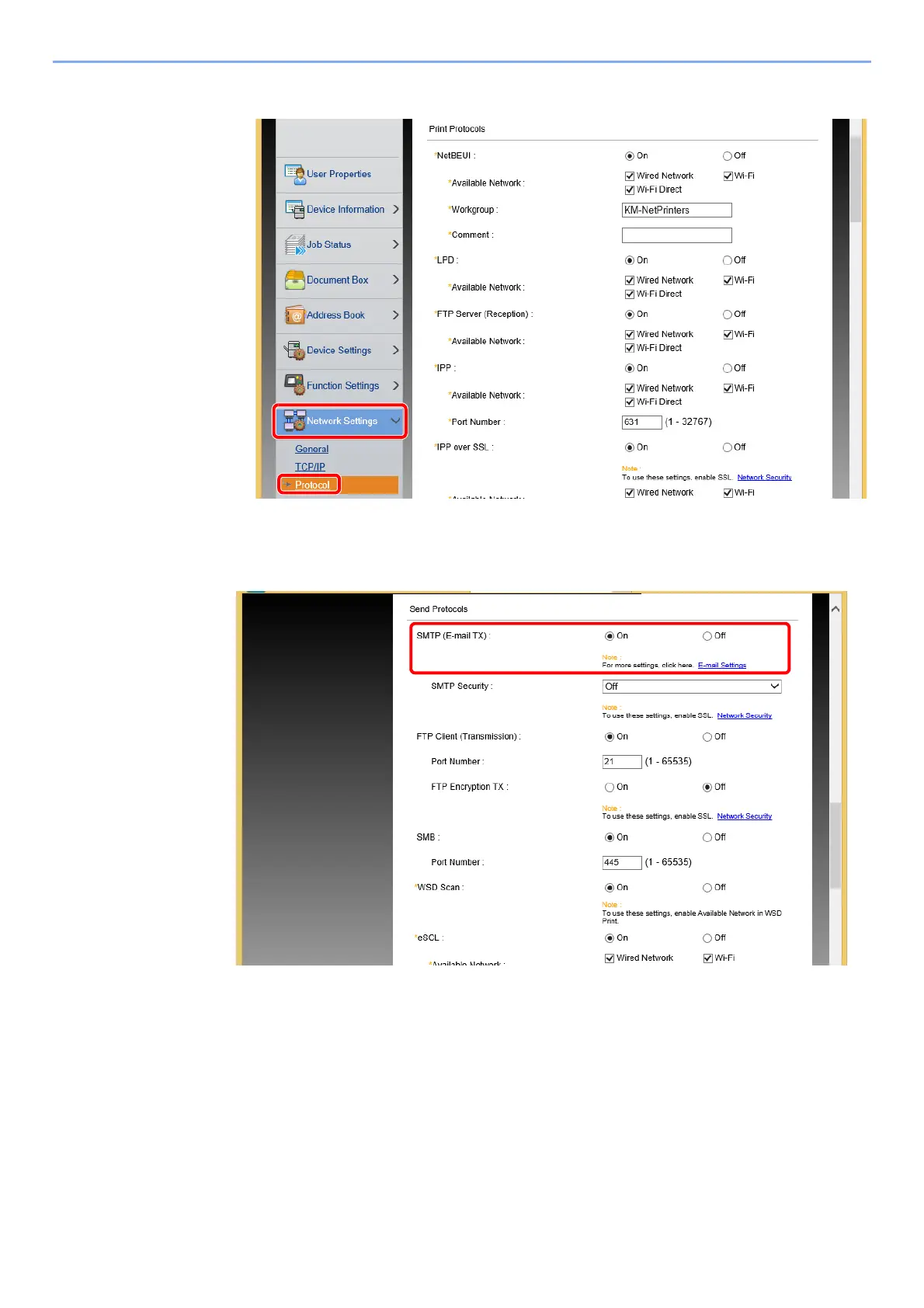

4 From the [Network Settings] menu, click [Protocol].

Configure the settings.

Set "SMTP (E-mail TX)" to [On] in the "Send Protocols".
