Trotec SP3000 User Manual

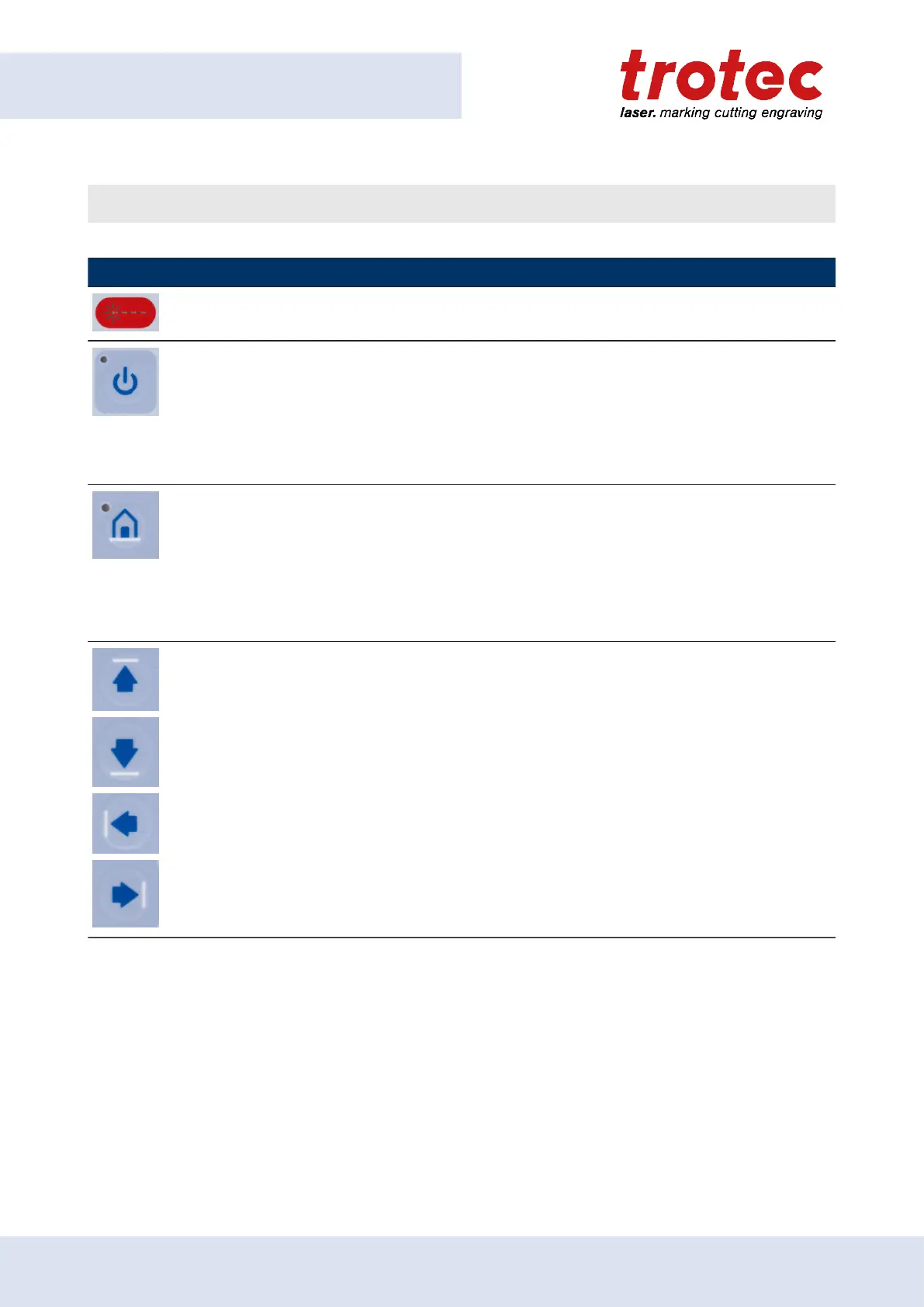

Control panel
8.2.1 Description
Image Button Description
Status indicator LED On: The machine is processing or receiving data.
Standby-button LED On: Standby-mode
•
Press this button to switch to the Standby-mode.
•
Press the Standby-button while the laser head is moving up
or down (e.g. by focus automatically).
The machine enters Standby-mode only after finishing the
movement.
Home-button LED On: Temporary change of home position.
•
Press the Home-button for 3 seconds to temporarily define
the position of the laser head as home position (Marker in
JobControl®).
To deactivate the temporary home position press the shortcut
Shift-button + Home-button.
Laser head control button X/
Y
•
Press one of these buttons to manually move the laser
head to the right, left, front or back (travel distance in X/Y-
direction).
•
Press two of the for Laser head control buttons X/Y
simultaneously in diagonal direction to move the laser in
diagonal direction (X+/Y+, X+/Y-, X-/Y-, X-/Y+).
•
Press the Shift-button together with one any desired Laser
head control button X/Y to move the laser head quickly to
the corresponding end position.
78 ENGLISH (Translation)
