Safety
2.7.1 Mechanical and electrical brake test of the x portal
The test described below applies to the axes of the machine in the y-direction and x-direction.
In this chapter, the axes are referred to as "portals".
The test must be carried out weekly by a person instructed by Trotec to ensure the correct functioning of all
safety-relevant components.
Should errors or functional deviations occur as a result of the test, the machine is deemed not to be ready for
operation and must not be put into operation until the cause has been clarified!
Non-observance can lead to injuries or damage to the machine!
If you have any questions, contact our experienced Technical Support in your local area.
Test setup
•
Reference the machine so that the portal is located in the y-direction at the reference point.
•
Position the test block approximately 100 cm in front of the rear edge of the working area.
The test block can be selected individually. A cardboard box was used in the illustration.

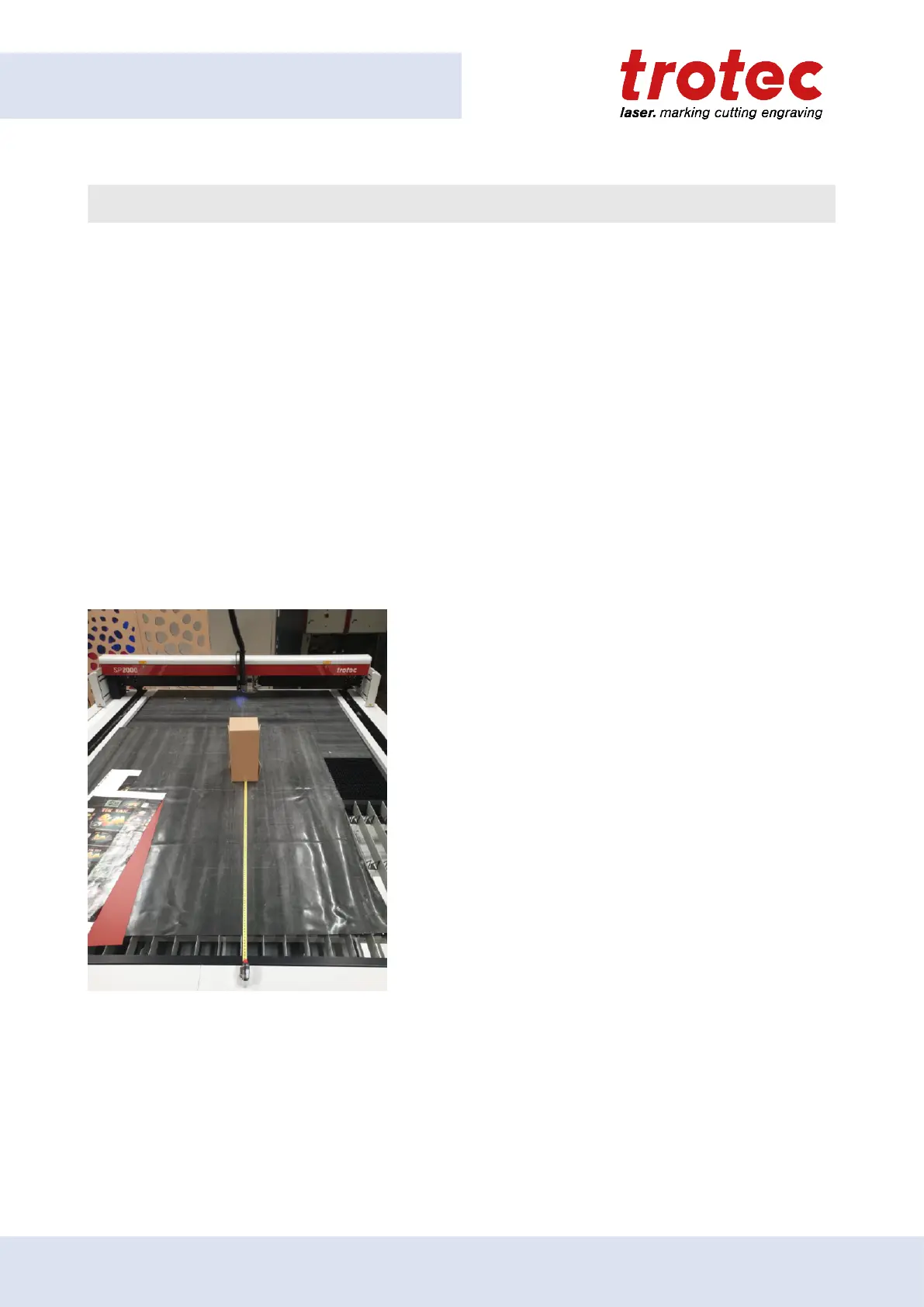

Figure 1: Positioning of the test block.
32 ENGLISH (Translation)
