7.13 Cladding, double layer, fire-resistant
Mortar-based installation into a shaft wall, FKR-EU and FK2-EU combined

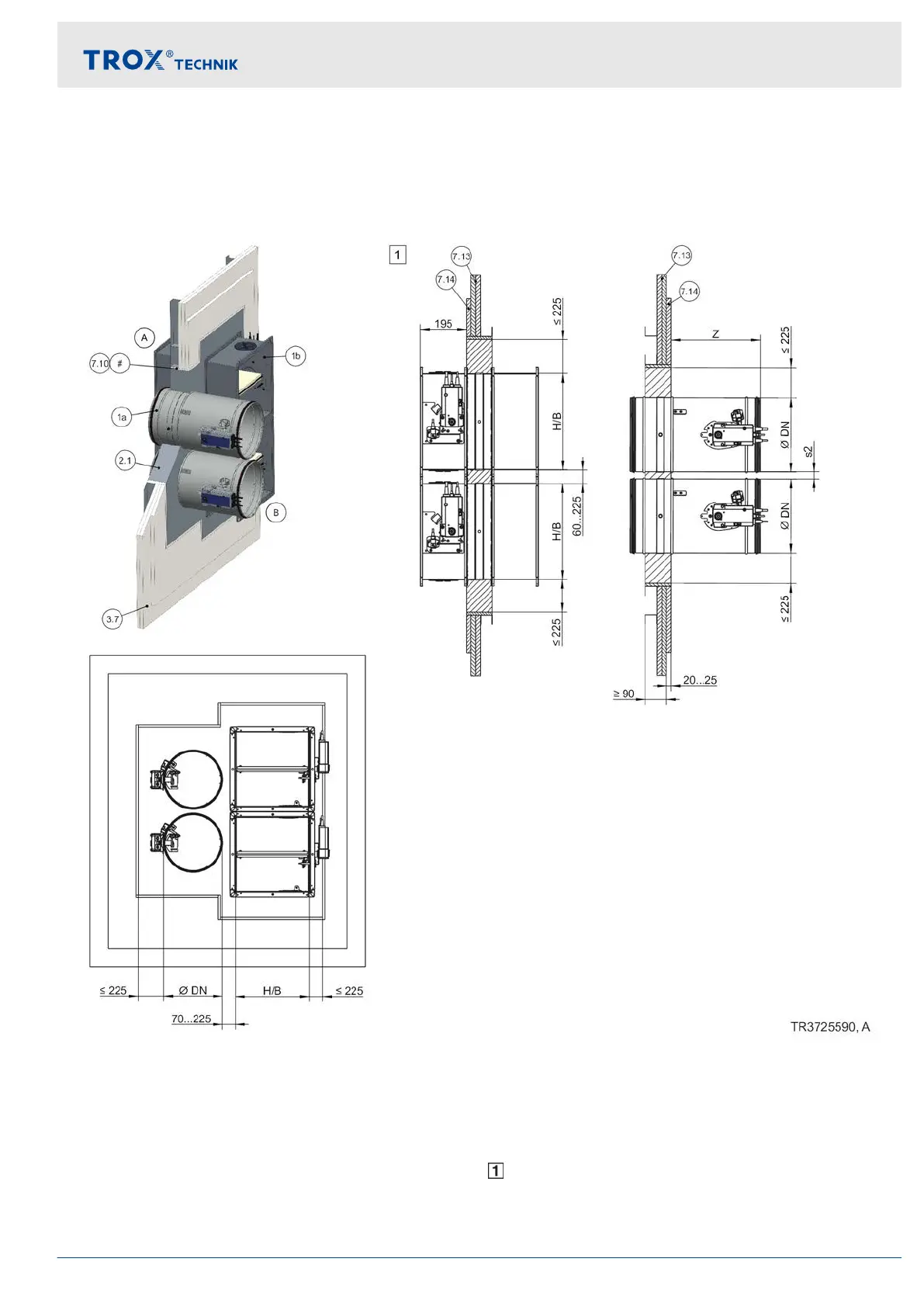

Fig. 76: Mortar-based installation into a shaft wall, FKR-EU and FK2-EU combined
1a FKR-EU
1b FK2-EU up to B × H ≤ 800 × 400 mm
2.1 Mortar
3.7 Shaft wall with metal support structure, cladding
on one side
7.10 Trim panels
7.13 Cladding
7.14 Reinforcing board of the same material as the
wall
# optional
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 225 mm
Flange construction 80 – 225 mm
Up to EI 90 S
Installation
Shaft walls with metal support structure > Mortar-based installation
Fire damper FKR-EU 101
