2.3 FKR-EU with spring return actuator
Dimensions and weight

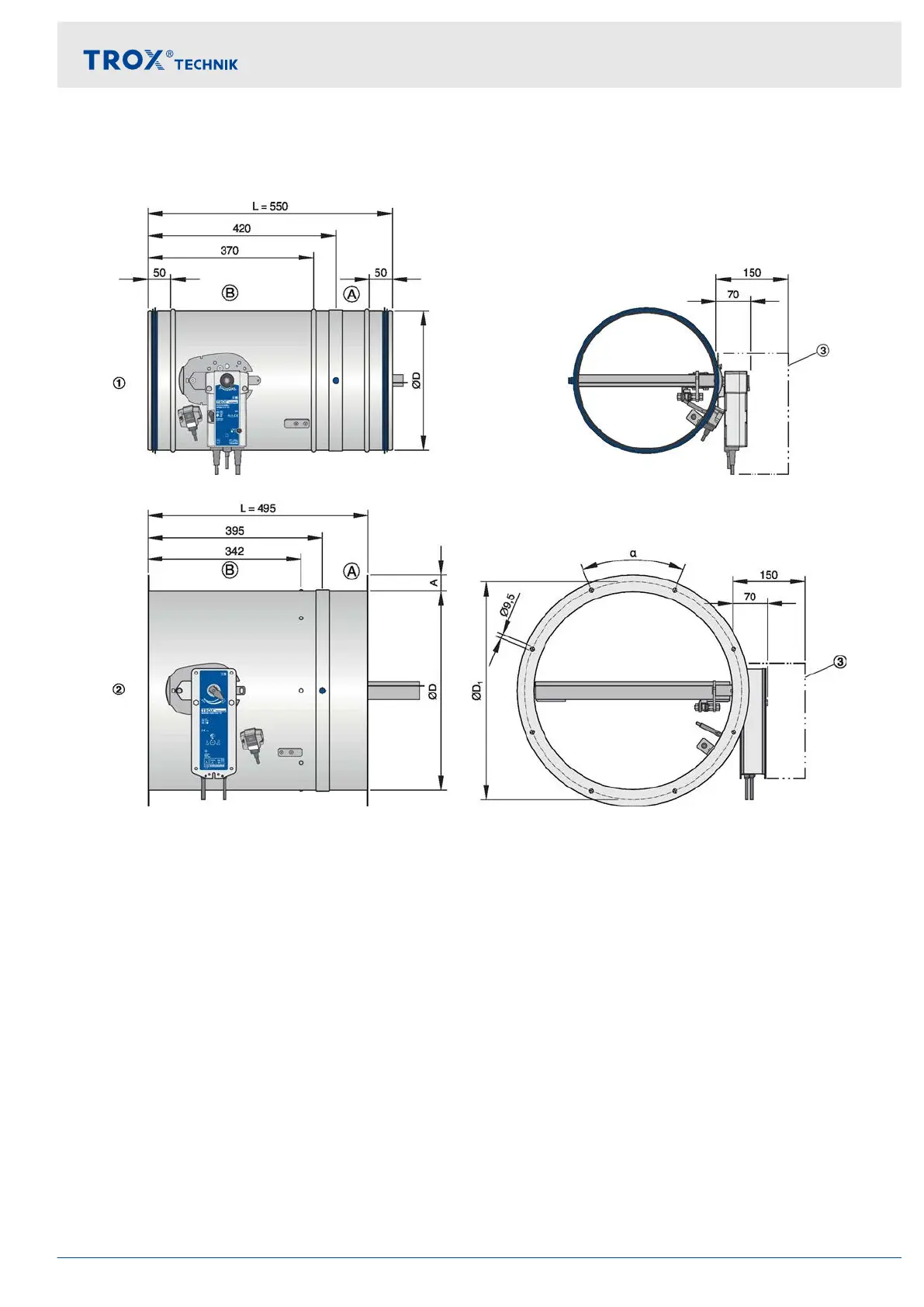

Fig. 3: FKR-EU with Belimo spring return actuator
1 Spigot construction
2 Flange construction
3 Keep clear to provide access for operation
A Installation side
B Operating side
 W
eight of FKR-EU with fusible link + approx. 1 kg (BFN...) or 3 kg (BF...), see table Ä 12 .
Technical data
FKR-EU with spring return actuator
Fire damper FKR-EU 13
