5.11 Solid ceiling slabs
5.1
1.1 General

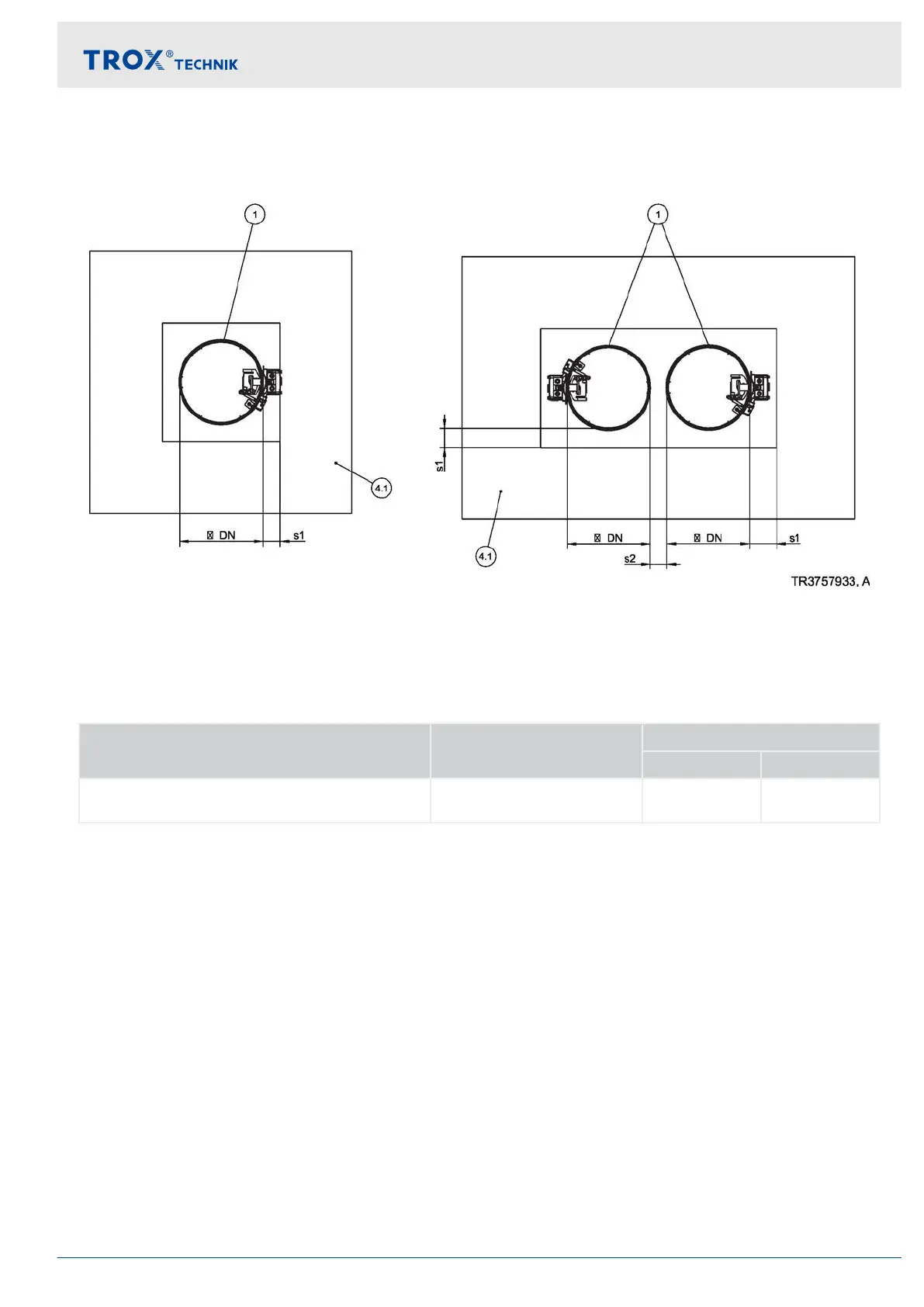

Fig. 79: Solid ceilings – arrangement / distances, side-by-side arrangement by way of example
1 FKR-EU
4.1 Solid ceiling slab
s1
Perimeter gap,
Ä on page 31
s2
Distance between the fire dampers,
Ä ‘Dis-
tances’ on page 29
Installation type Installation opening [mm] Distance [mm]
s1 s2
Mortar-based installation Ænominal width + max. 450
mm
≤ 225
40 – 225
1
1)
Spigot construction, with flange construction 80 – 225 mm
Additional requirements: solid ceiling slabs
 Solid ceiling slab,
Ä on page 36
 Distances and installation orientations,
Ä ‘Dis-
tances’ on page 29
Installation
Solid ceiling slabs > General
