5.8.4 Dry mortarless installation with fire batt

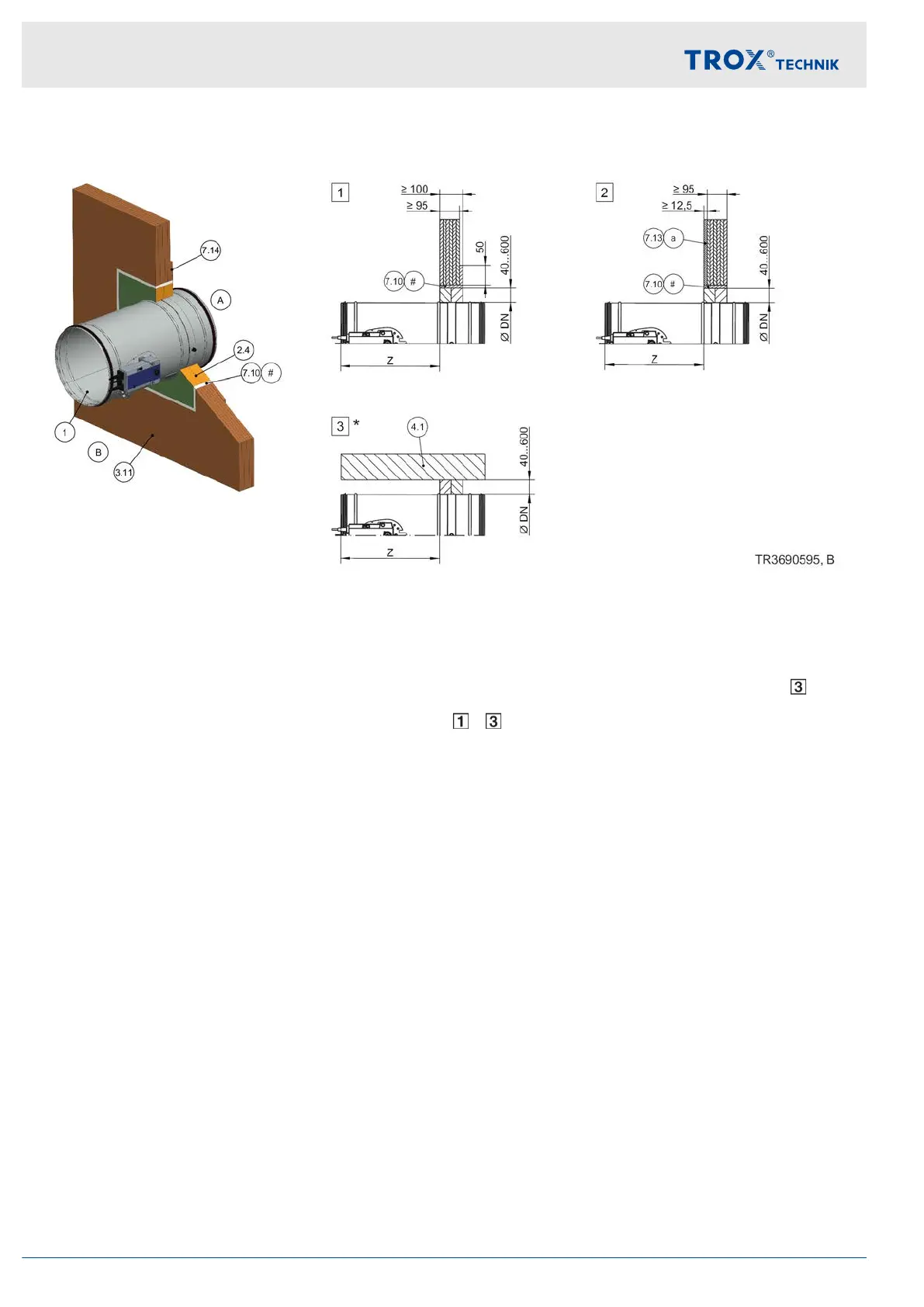

Fig. 72: Dry mortarless installation into a timber wall or CLT wall, with a fire batt
1 FKR-EU
2.4 Coated board system
3.11 Solid wood wall / CLT wall
4.1 Solid ceiling slab / solid floor
7.10 Trim panels (fire-resistant)
7.13a Cladding, single-layer, fire-resistant
7.14 Reinforcing board of the same material as the
wall
Z Spigot construction 370 mm
Flange construction 342 mm
*
Installation near the floor analogous to
# optional
–
Up to EI 60 S
Installation
Solid wood walls > Dry mortarless installation with fire batt
Fire damper FKR-EU96
