5.7.4 Dry mortarless installation with installation kit TQ
Timber studs

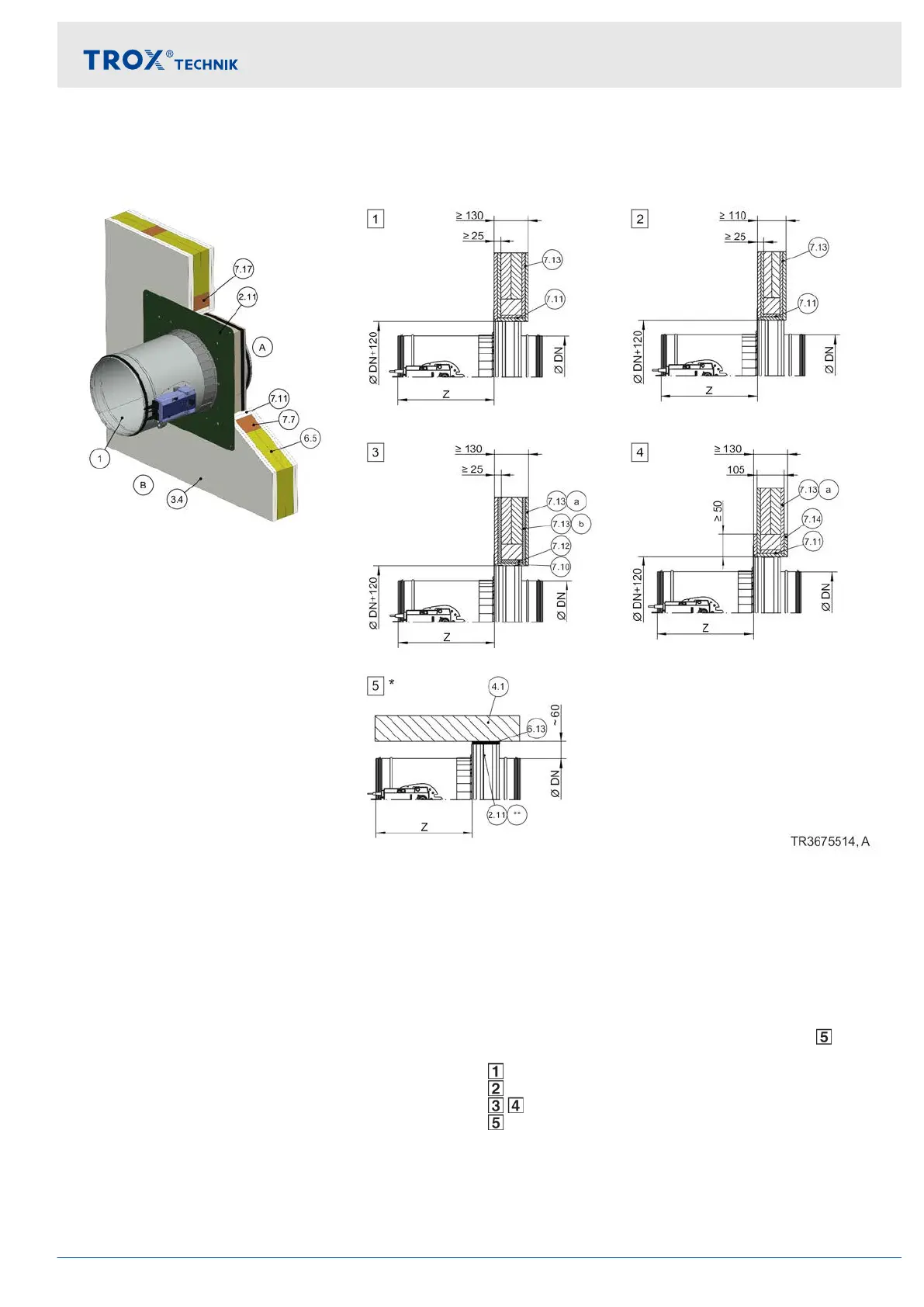

Fig. 62: Dry mortarless installation into a lightweight partition wall with timber support structure, with installation
kit TQ
1 FKR-EU
2.11 Installation kit TQ (factory assembled)
3.4 Timber stud wall (also timber panel construc-
tions), cladding on both sides
4.1 Solid ceiling slab / solid floor
6.5 Mineral wool (depending on wall construction)
6.13 Mineral wool strips A1, ≤ 5 mm thick, ≤ 1000°C,
filler as an alternative
7.7 Timber support structure / nogging,
at least 60 × 80 mm (at least 60 × 60 mm with
F60)
7.10 Trim panels, 12.5 mm, fire-resistant
7.11 Trim panels, double layer, 2 × 12.5 mm with
staggered joints, fire-resistant
7.12 Trim panels, wood sheet, max. 12.5 mm,
at least 600 kg/³
7.13 Cladding
7.13a Cladding, fire-resistant
7.13b Cladding, wood sheet, at least 600 kg/³
7.14 Reinforcing board of the same material as the
wall
7.17 Trimmers, timber support structure / nogging,
at least 60 × 80 mm (min. 60 × 60 mm with F60)
Z Spigot construction 370 mm
Flange construction 342 mm
*
Installation near the floor analogous to
** Cover plate, shortened by others
Up to EI 90 S
Up to EI 60 S
EI 30 S
EI 30 to EI 90 S
Installation
Lightweight partition walls with timber support ... > Dry mortarless installation with installation ...
Fire damper FKR-EU 85
