5.11.10 Mortar-based installation in conjunction with wooden beam ceilings

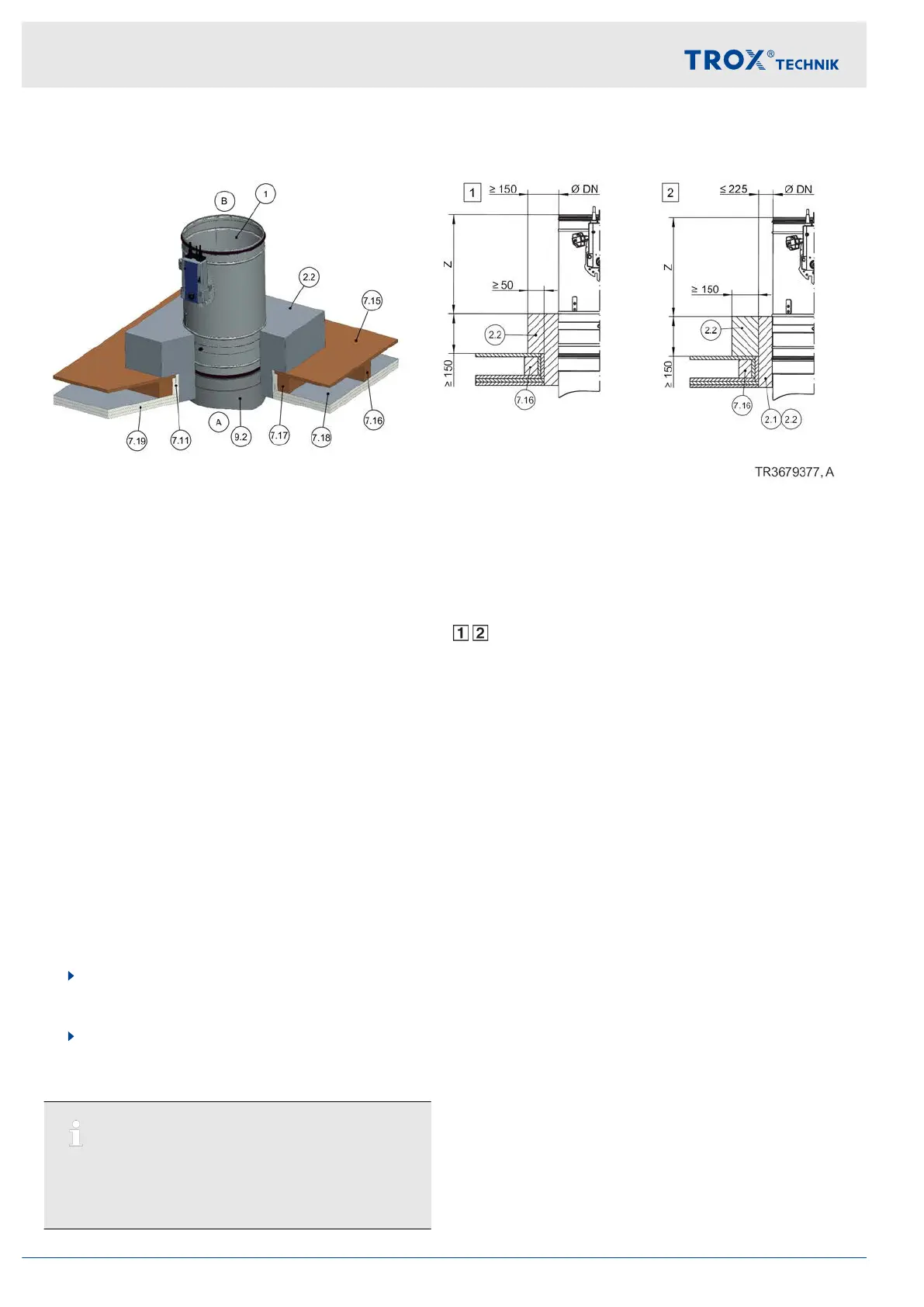

Fig. 95: Mortar-based installation into solid ceiling slab in conjunction with wooden beam / laminated beam ceilings,
shown upright (also applicable for suspended arrangement)
1 FKR-EU
2.1 Mortar
2.2 Reinforced concrete
7.11 Trim panel, same construction as 7.19
7.15 Wooden floorboard / floor tiles (different ceiling
construction may be possible)
7.16 Wooden beam / gluelam (reduce distances
between wooden beams to the size of the instal-
lation opening)
7.17 Trimmers, wooden beam / gluelam
7.18 Formwork
7.19 Fire-resistant cladding (ceiling-dependent)
9.2 Extension piece or duct
Z Spigot construction 370 mm
Flange construction 342 mm
Up to EI 90 S
Additional requirements: mortar-based installation
into solid ceiling slabs in conjunction with wooden
beam / laminated beam ceilings
Wooden beam ceiling,
Ä
on page 36
≥ 40 mm distance from fire damper to load-bearing
structural elements
Distance of ≥ 40 mm between two fire dampers
(80 mm for flange construction). When you install
two fire dampers next to each other into the same
opening, the concrete bed between the two fire
dampers must not exceed 225 mm.
1. Create the installation opening so that a sur-
rounding concrete cover of at least 50 mm is
ensured. Professionally connect the trimmers.
2. Create a partial concrete ceiling around the fire
damper, ≥ 150 mm, ≥ 150 mm thick.
Note:
Structural and fire resistance properties of the ceiling
construction, including the attachment to the con-
crete or any required reinforcement, have to be eval-
uated and ensured by others.
Installation
Solid ceiling slabs > Mortar-based installation in conjunction with ...
Fire damper FKR-EU124
