5.8.2 Mortar-based installation

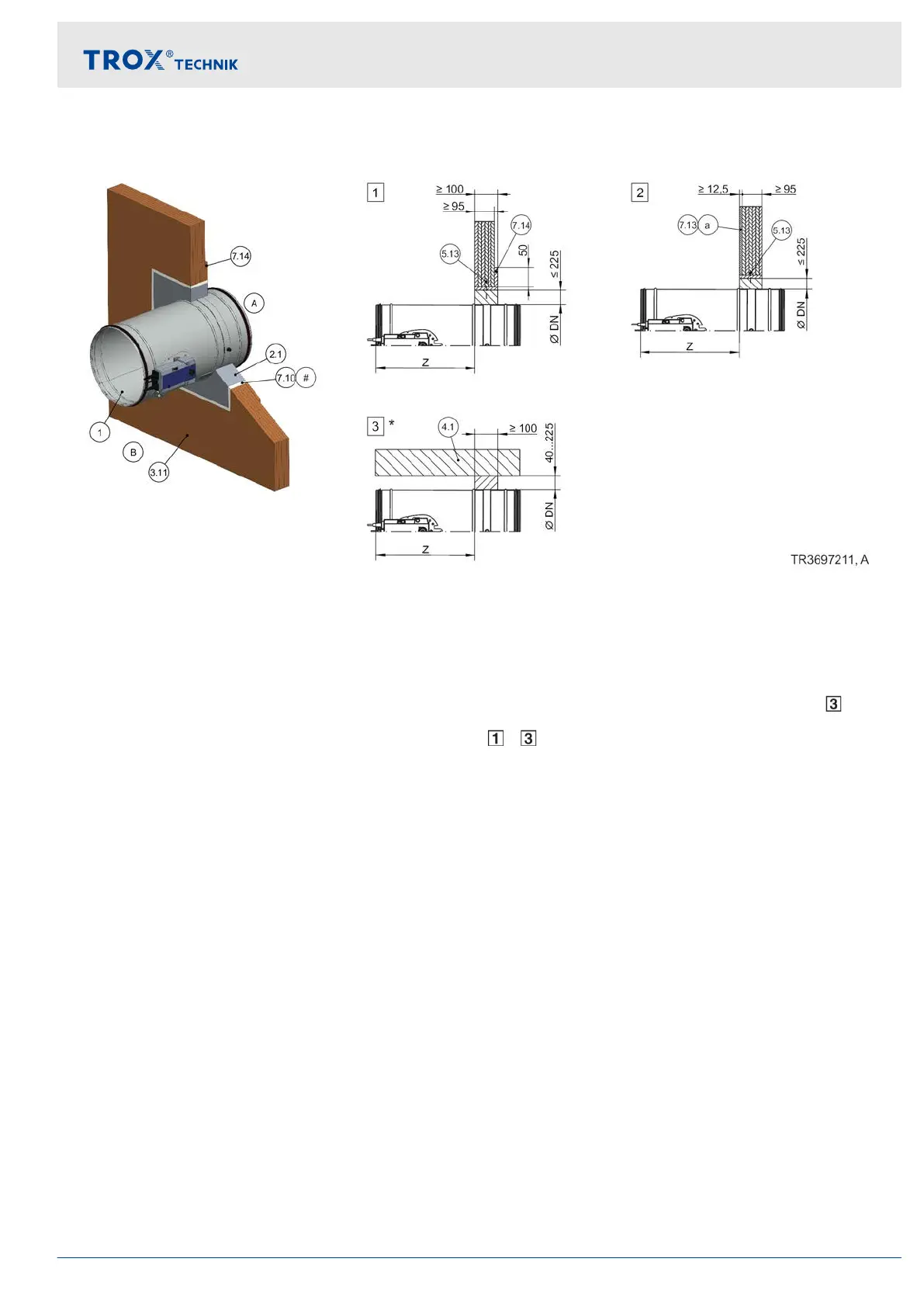

Fig. 69: Mortar-based installation into a solid wood wall or CLT wall
1 FKR-EU
2.1 Mortar
3.11 Solid wood wall / CLT wall
4.1 Solid ceiling slab / solid floor
5.13 Wood screw or pin
7.10 Trim panels
7.13a Cladding, single-layer, fire-resistant
7.14 Reinforcing board of the same material
(required for W < 100 mm, optionally on the
operating or installation side)
Z Spigot construction 370 mm
Flange construction 342 mm
*
Installation near the floor analogous to
# optional
–
Up to EI 90 S
Installation
Solid wood walls > Mortar-based installation
Fire damper FKR-EU 93
