Solid wood wall/CLT wall, "flange to flange"

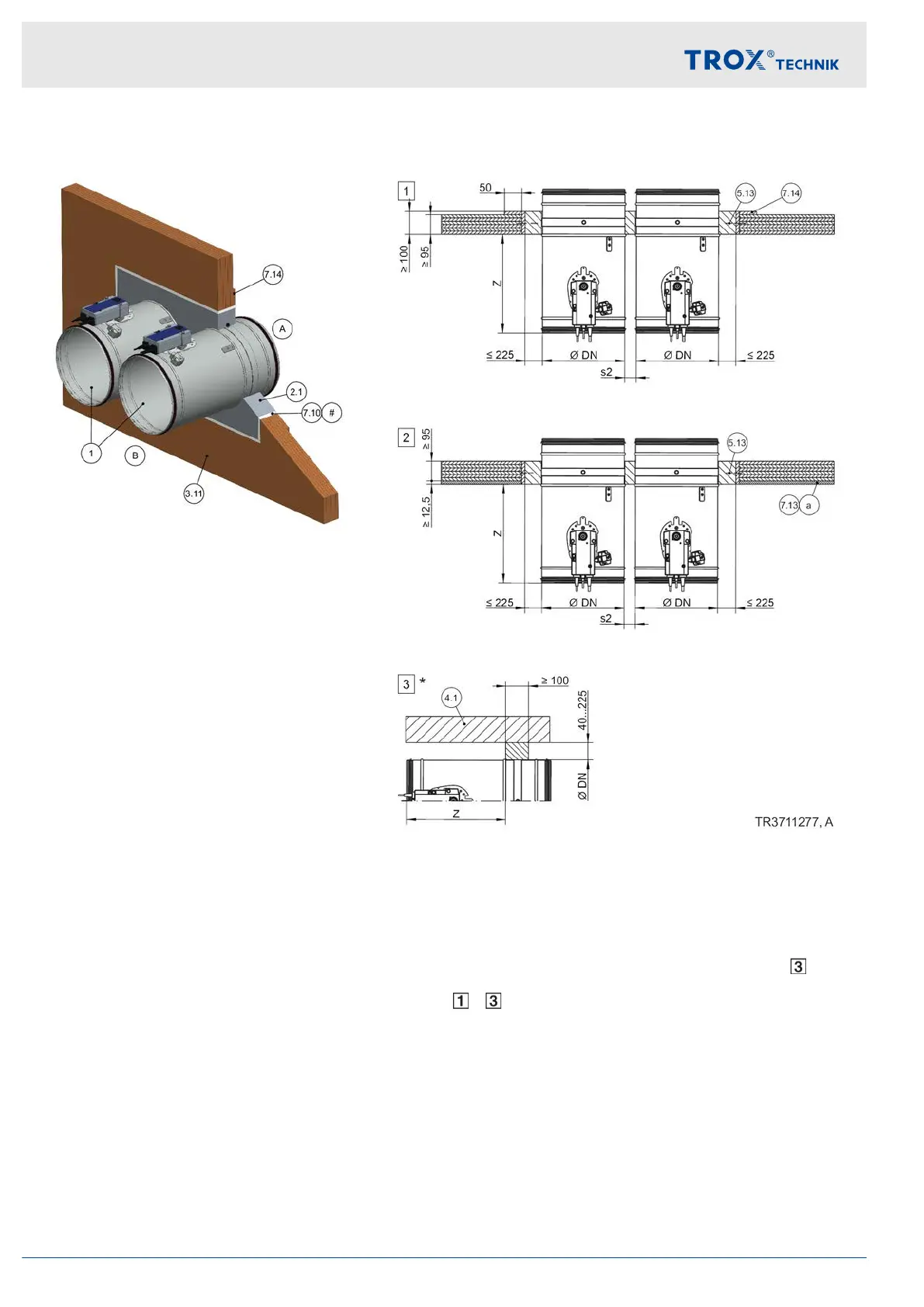

Fig. 70: Mortar-based installation into a solid wood wall or CLT wall, flange to flange, illustration shows side by side
installation (applies also to installation of dampers on top of each other)
1 FKR-EU
2.1 Mortar
3.11 Solid wood wall / CLT wall
4.1 Solid ceiling slab / solid floor
5.13 Wood screw or pin
7.10 Trim panels
7.13a Cladding, single-layer, fire-resistant
7.14 Reinforcing board of the same material
(required for W < 100 mm, optionally on the
operating or installation side)
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 225 mm
Flange construction 80 – 225 mm
*
Installation near the floor analogous to
# optional
–
Up to EI 90 S
Additional requirements: mortar-based installation
into solid wood walls
Solid wood wall or CLT wall,
Ä
on page 35
Installation
Solid wood walls > Mortar-based installation
Fire damper FKR-EU94
