5.7.2 Mortar-based installation
Timber studs

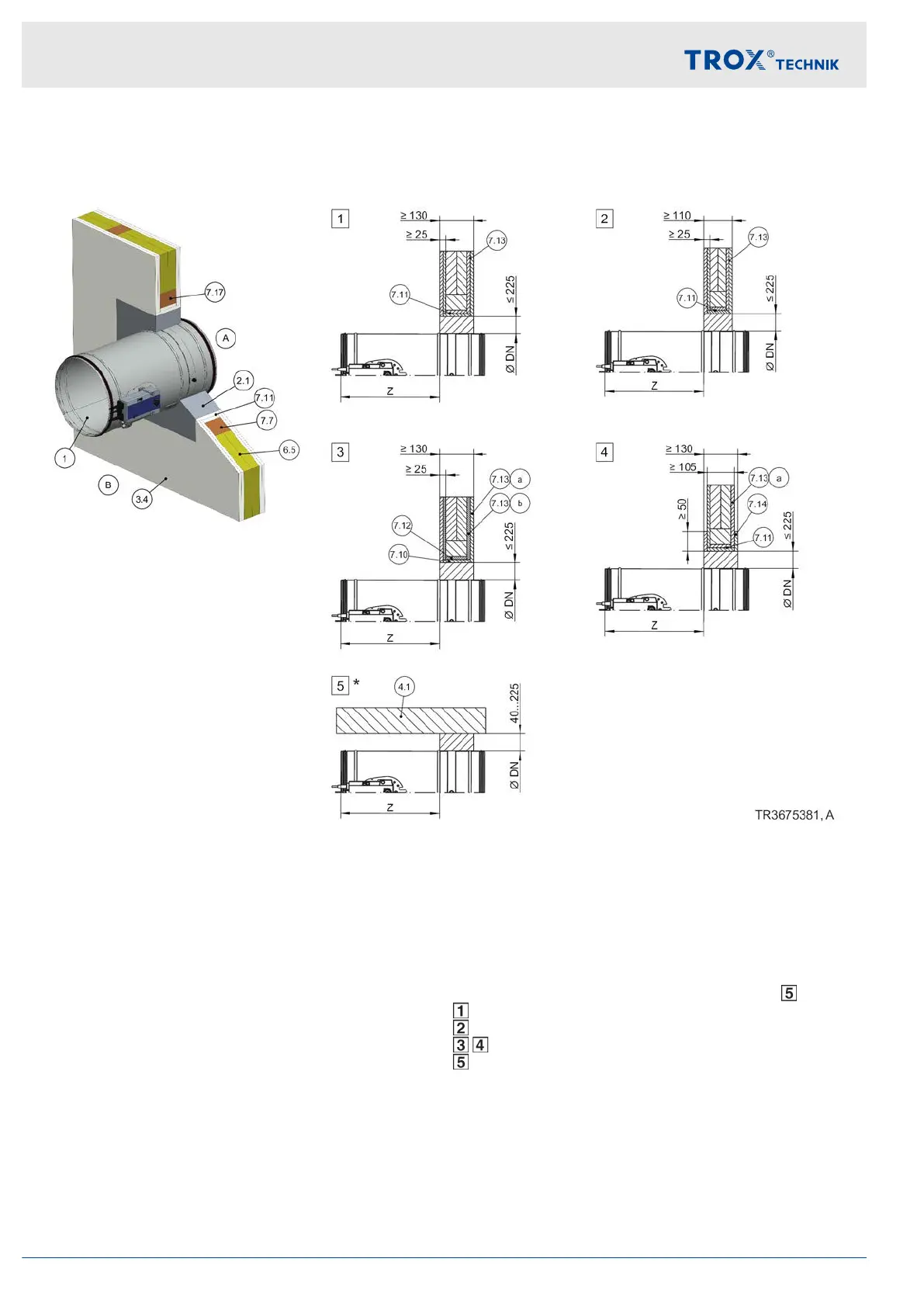

Fig. 53: Mortar-based installation into a lightweight partition wall with timber support structure
1 FKR-EU
2.1 Mortar
3.4 Timber stud wall (also timber panel construc-
tions), cladding on both sides
4.1 Solid ceiling slab / solid floor
6.5 Mineral wool (depending on wall construction)
7.7 Timber support structure, min. 60 × 80 mm
(min. 60 × 60 mm with F60)
7.10 Trim panels (fire-resistant)
7.11 Trim panels, double layer with staggered joints,
fire-resistant
7.12 Trim panels, wood sheet, at least 600 kg/³
7.13 Cladding
7.13a Cladding, fire-resistant
7.13b Cladding, wood sheet, at least 600 kg/³
7.14 Reinforcing board of the same material as the
wall
7.17 Trimmers, timber support structure / nogging,
at least 60 × 80 mm (min. 60 × 60 mm with F60)
Z Spigot construction 370 mm
Flange construction 342 mm
*
Installation near the floor analogous to
Up to EI 90 S
Up to EI 60 S
EI 30 S
EI 30 to EI 90 S
Installation
Lightweight partition walls with timber support ... > Mortar-based installation
Fire damper FKR-EU74
