Lightweight partition wall, half-timbered construction with cladding on both sides

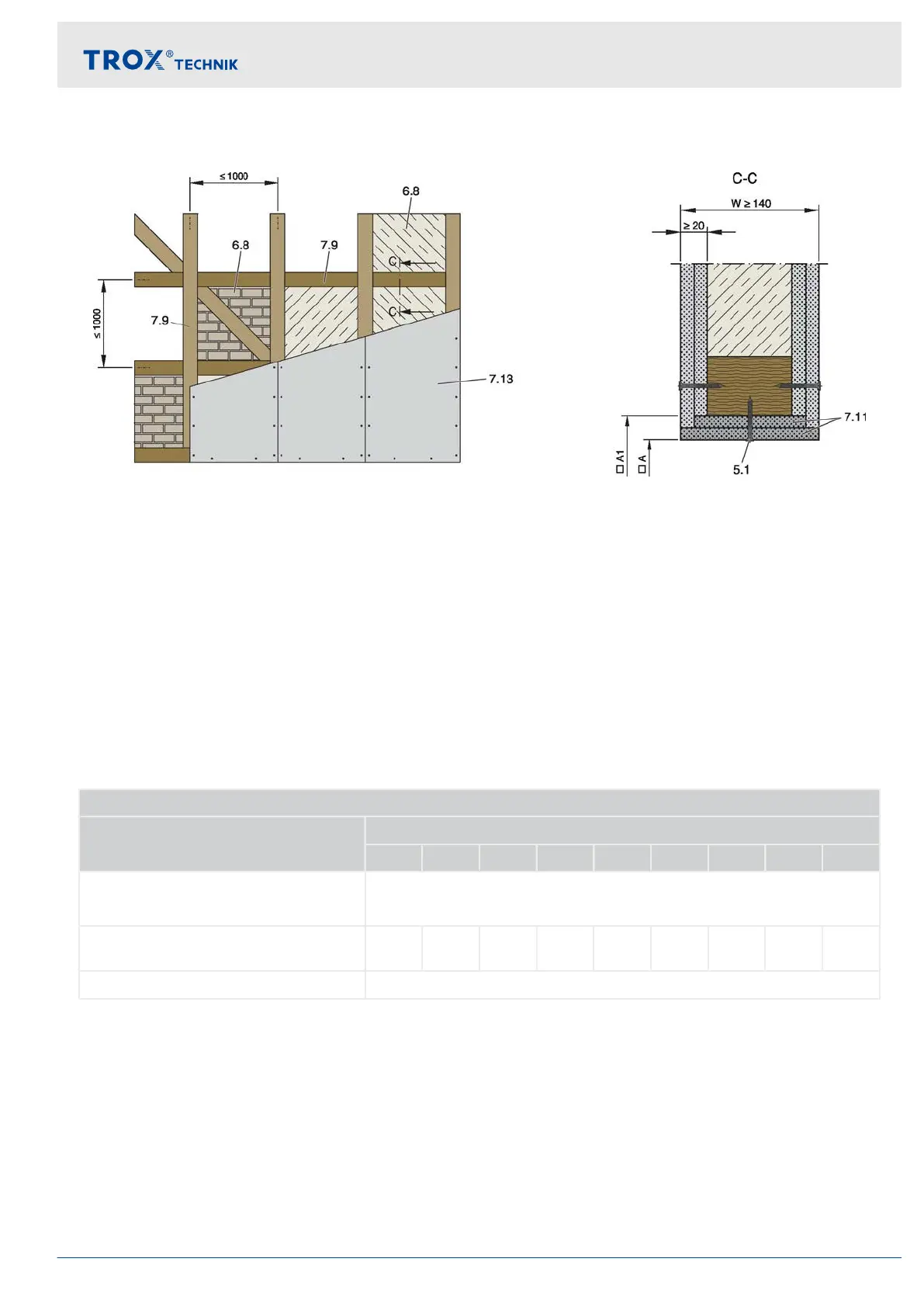

Fig. 52: Lightweight partition wall, half-timbered construction with cladding on both sides
5.1 Dry wall screw
6.8 Infill*
7.9 Timber structure
7.11 Trim panels, double layer, staggered joints
7.13 Cladding
*
Cavities completely filled with mineral wool
≥ 50 kg/m³, bricks, aerated concrete, lightweight
concrete, reinforced concrete or clay
☐A Clear installation opening
☐A1 Opening in the half-timbered construction,
☐A1 = ☐A + (4 × trim panels)
Additional requirements: lightweight partition walls with timber support structure / half-timbered construc-
tion
T
imber stud wall or half-timbered construction,
Ä
on page 35
Installation opening ☐A [mm]
Installation type Nominal size Ænominal width
315 355 400 450 500 560 630 710 800
Mortar-based installation ☐A = Ænominal width + max. 450 mm
☐A1 = ☐A + (4 × trim panels)
Dry mortarless installation with installa-
tion kit TQ
1, 2
435 475 520 570 620 680 750 830 920
Dry mortarless installation with fire batt ☐A = Ænominal width + 80 – 1200 mm
1)
Installation opening tolerance ± 2 mm
2)
Installation kit TQ is available only for FKR-EU with spigot
Installation
Lightweight partition walls with timber support ... > General
Fire damper FKR-EU 73
