5.11.9 Mortar-based installation into composite ceilings

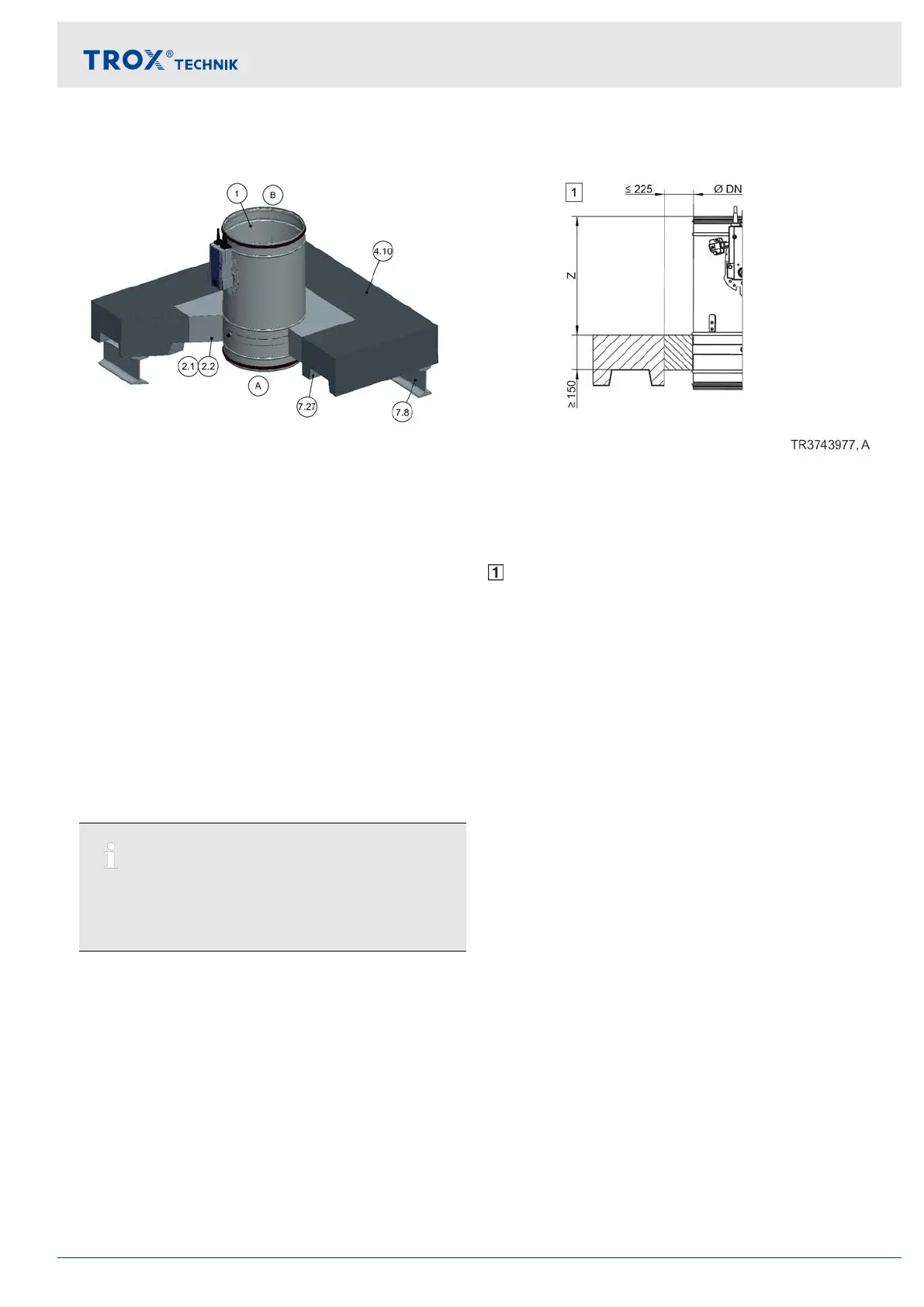

Fig. 94: Mortar-based installation into composite ceilings, shown upright (also applicable for suspended arrange-
ment)
1 FKR-EU
2.1 Mortar
2.2 Concrete
4.10 Composite ceiling* (concrete)
7.8 Steel girder
7.27 Profile sheet metal
Z Spigot construction 370 mm
Flange construction 342 mm
Up to EI 90 S
* Illustration representative, other ceiling construc-
tions possible according to local conditions and
ceiling manufacturers
Additional requirements: mortar-based installation
into composite ceilings
Composite ceiling,
Ä
on page 36
≥ 40 mm distance from fire damper to load-bearing
structural elements
≥ 200 mm distance between two fire dampers in
separate installation openings
Note:
Structural and fire resistance properties of the ceiling
construction, including the attachment to the con-
crete or any required reinforcement, have to be eval-
uated and ensured by others.
Installation
Solid ceiling slabs > Mortar-based installation into composite ceili...
Fire damper FKR-EU 123
