5.13 Wooden beam ceilings
5.13.1 Mortar-based installation into wooden beam ceilings
Mortar-based installation in wooden beam / laminated beam ceiling, upright

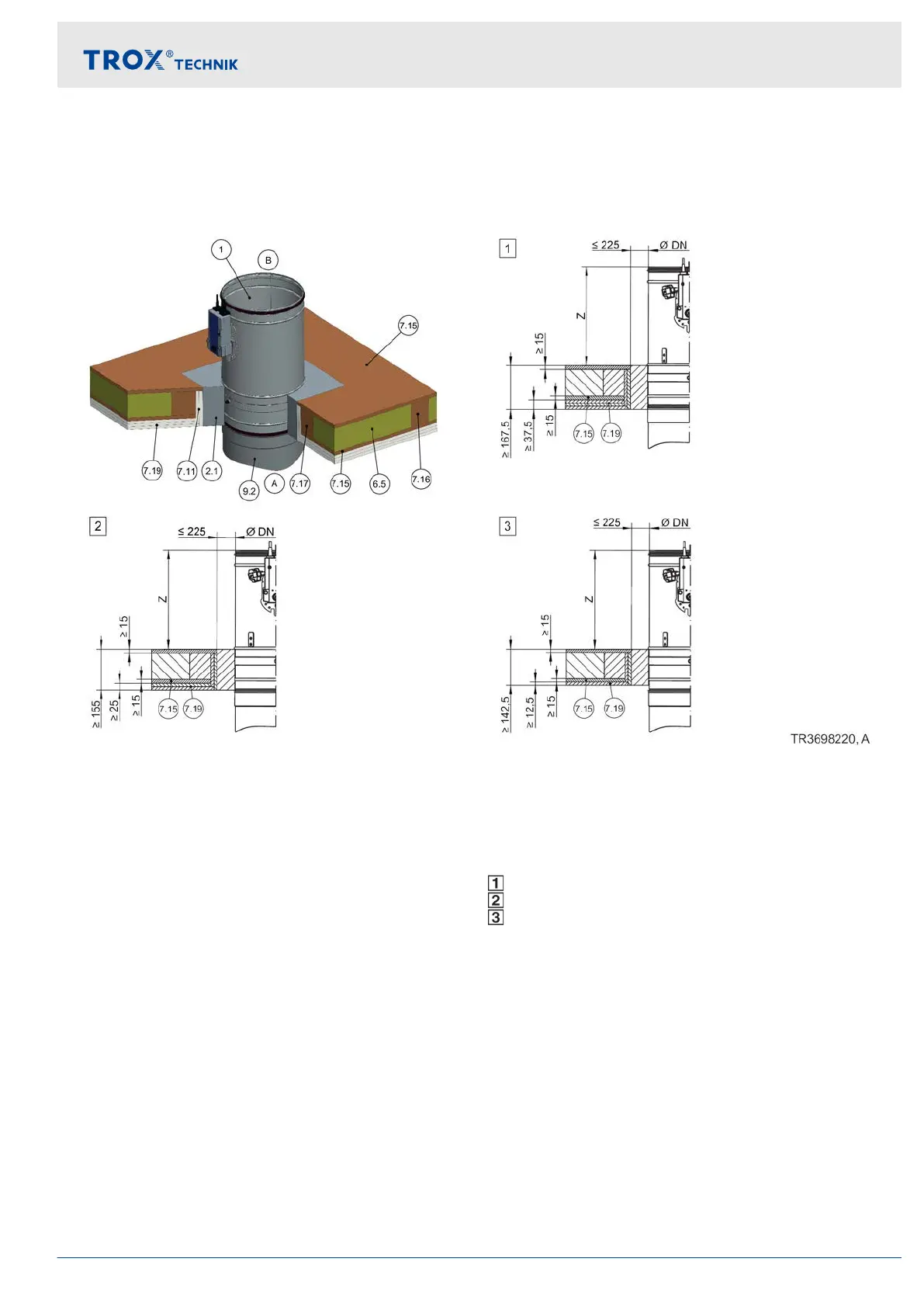

Fig. 100: Mortar-based installation into wooden beam / laminated beam ceiling, upright (illustration representative,
alternative ceiling construction possible on request)
1 FKR-EU
2.1 Mortar
6.5 Mineral wool fill if required
7.11 Trim panel, same construction as 7.19
7.15 Wood sheet, min. 600 kg/m³
7.16 Wooden beam / gluelam min. 100 × 80 mm
(reduce distances between wooden beams to the
size of the installation opening)
7.17 Trimmers, wooden beam / glued laminated
timber min. 100 × 80 mm
7.19 Fire-resistant cladding (ceiling-dependent)
9.2 Extension piece or duct
Z Spigot construction 370 mm
Flange construction 342 mm
Up to EI 90 S
Up to EI 60 S
EI 30 S
Installation
