5.6.4 Dry mortarless installation with installation kit TQ
Dry mortarless installation into a lightweight partition wall, with installation kit TQ

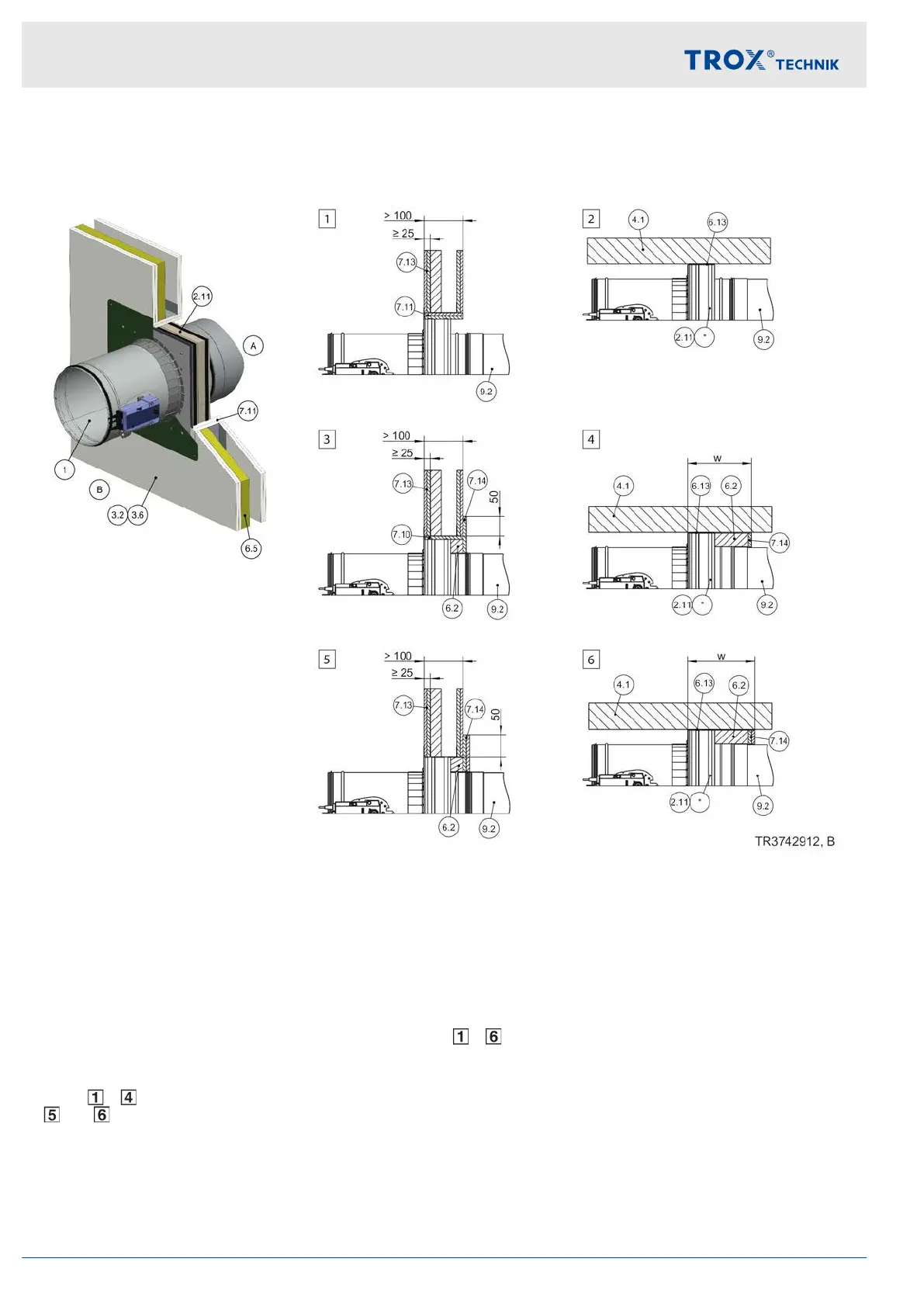

Fig. 42: Dry mortarless installation into a lightweight partition wall, with installation kit TQ
1 FKR-EU
2.11 Installation kit TQ (factory assembled)
3.2 Lightweight partition wall with metal support
structure, cladding on both sides
3.6 Compartment wall or safety wall with metal sup-
port structure, cladding on both sides
4.1 Solid ceiling slab
6.2 Mineral wool, ≥ 1000 °C, ≥ 80 kg/m³
6.5 Mineral wool (depending on wall construction)
6.13 Mineral wool strips A1, ≤ 5 mm thick, ≤ 1000°C,
filler as an alternative
7.10 Trim panels
7.11 Trim panels, fire-resistant, 2-ply, max. 25 mm
(alternative to 6.2 and 7.14)
7.13 Cladding
7.14 Reinforcing board, made of wall panels (up to
the fire damper casing)
9.2 Extension piece or duct
* Cover plate, shortened by others
–
Up to EI 90 S
Note:
– valid for all wall constructions and wall thicknesses.
and valid for all wall thicknesses with a single stud frame.
Installation
Lightweight partition walls > Dry mortarless installation with installation ...
Fire damper FKR-EU62
