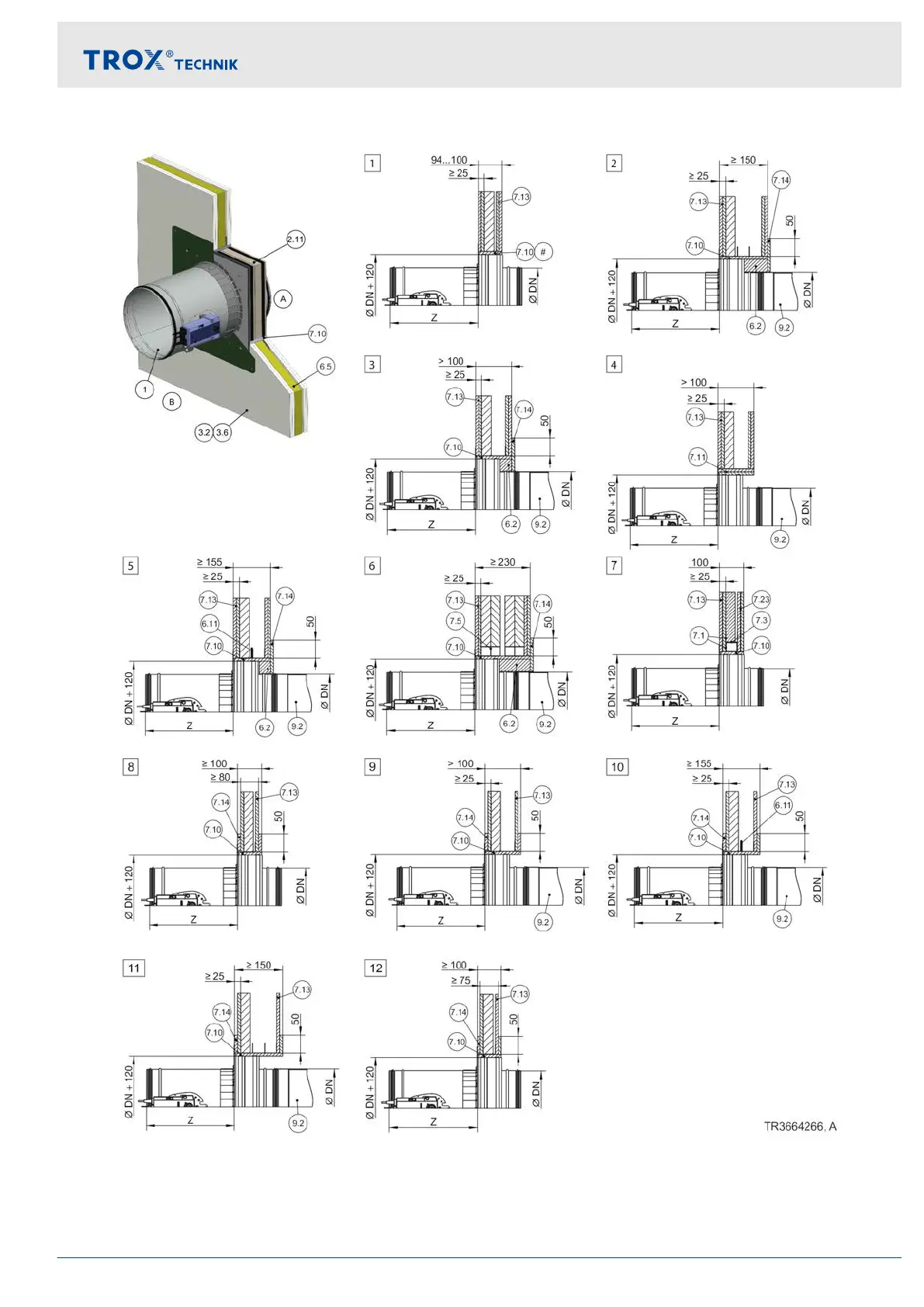

Fig. 43: Dry mortarless installation into a lightweight partition wall, with installation kit TQ
1 FKR-EU
2.11 Installation kit TQ (factory assembled)
3.2 Lightweight partition wall with metal support
structure, cladding on both sides
7.13 Cladding
7.14 Reinforcing board made of wall panels (rein-
forcing board or alternatively wall cladding on
the back, up to the fire damper casing)
Installation
Lightweight partition walls > Dry mortarless installation with installation ...
Fire damper FKR-EU 63
