5.12.2 Dry mortarless installation with installation kit TQ into solid wood ceilings

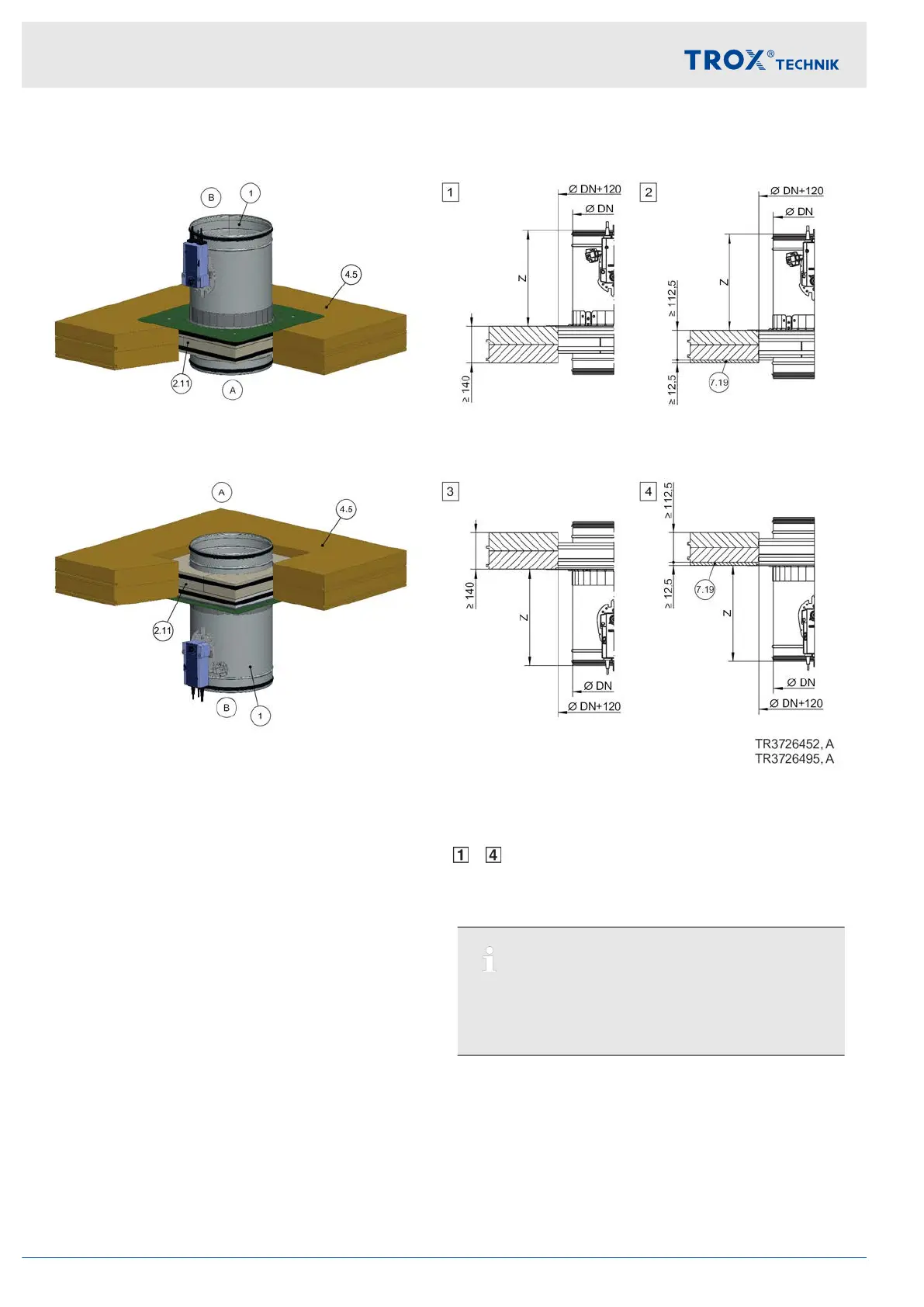

Fig. 99: Dry mortarless installation with installation kit TQ into solid wood ceiling, upright and suspended
1 FKR-EU
2.11 Installation kit TQ (factory assembled)
4.5 Solid wood ceiling
7.19 Fire-resistant cladding
Z Spigot construction 370 mm
Flange construction 342 mm
–
Up to EI 90 S
Additional requirements: dry mortarless installation
with installation kit TQ in solid wood ceilings
Solid wood ceiling,
Ä
on page 36
Installation kit TQ,
Ä
on page 32
≥ 75 mm distance from the fire damper to load-
bearing structural elements (structure 100 mm)
≥ 200 mm distance between two fire dampers in
separate installation openings
Fasten the cover plate to the solid wood ceiling with
4 (for nominal widths up to 400 mm) or 12 (for nom-
inal widths from 450 mm) dry wall screws
Æ ≥ 4.2 mm
Note:
Structural and fire resistance properties of the ceiling
construction, including the attachment to the con-
crete or any required reinforcement, have to be eval-
uated and ensured by others.
Installation
Solid wood ceilings > Dry mortarless installation with installation ...
Fire damper FKR-EU128
