5.10 Shaft walls without metal support structure
5.10.1
General
Shaft wall without metal support structure and with cladding on one side

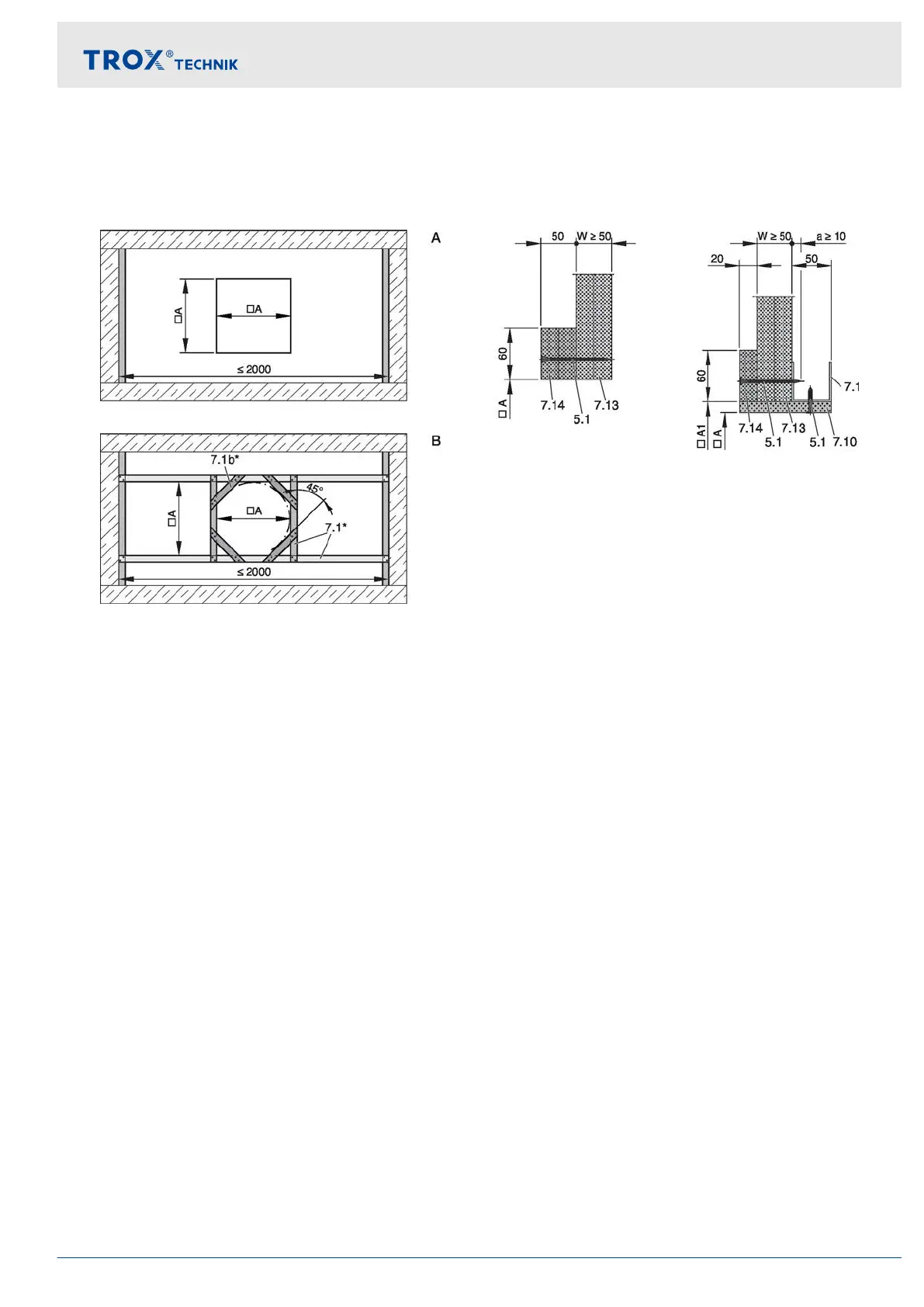

Fig. 77: Shaft wall without metal support structure and with cladding on one side
A Wall construction for nominal sizes Æ 315 – 400
mm
B Wall construction for nominal sizes Æ 450 – 800
mm
5.1 Dry wall screw
7.1 UW section
7.1b UW section, for nominal sizes Ænominal width
450 - 800
7.10 Optional trim panels
7.13 Double layer cladding, on one side of the metal
stud system
7.14 Reinforcing strip
☐A Installation opening
☐A1 Opening (without trim panels: ☐A =☐A1)
* Closed side of metal section must face the
installation opening
Additional requirements: shaft walls without metal support structure
 Shaft wall without metal support structure,
Ä on page 35
Installation
Shaft walls without metal support structure > General
Fire damper FKR-EU 103
