5.11.6 Mortar-based installation into hollow stone ceilings

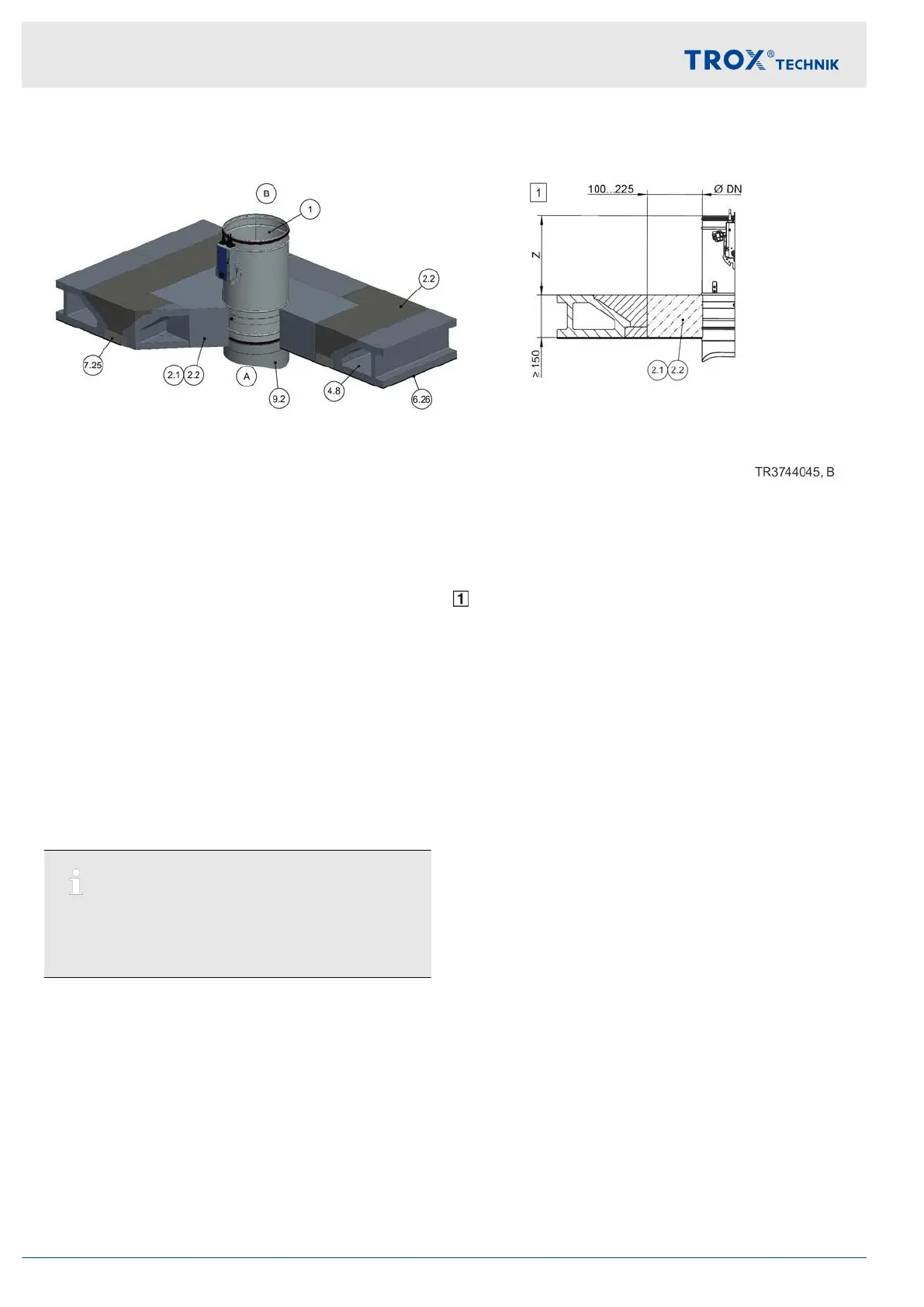

Fig. 91: Mortar-based installation into hollow stone ceilings, shown upright (also applicable for suspended arrange-
ment)
1 FKR-EU
2.1 Mortar
2.2 Concrete
4.8 Hollow stone ceiling*
6.26 Plaster*
7.25 Reinforced concrete support*
9.2 Extension piece or duct
Z Spigot construction 370 mm
Flange construction 342 mm
Up to EI 90 S
* Illustration representative, other ceiling construc-
tions possible according to local conditions and
ceiling manufacturers
Additional requirements: mortar-based installation
into hollow stone ceilings
Hollow stone ceiling,
Ä
on page 36
≥ 40 mm distance from fire damper to load-bearing
structural elements
≥ 200 mm distance between two fire dampers in
separate installation openings
Note:
Structural and fire resistance properties of the ceiling
construction, including the attachment to the con-
crete or any required reinforcement, have to be eval-
uated and ensured by others.
Installation
Solid ceiling slabs > Mortar-based installation into hollow stone ce...
Fire damper FKR-EU120
