5.13.3 Mortar-based installation into historical wooden beam ceilings

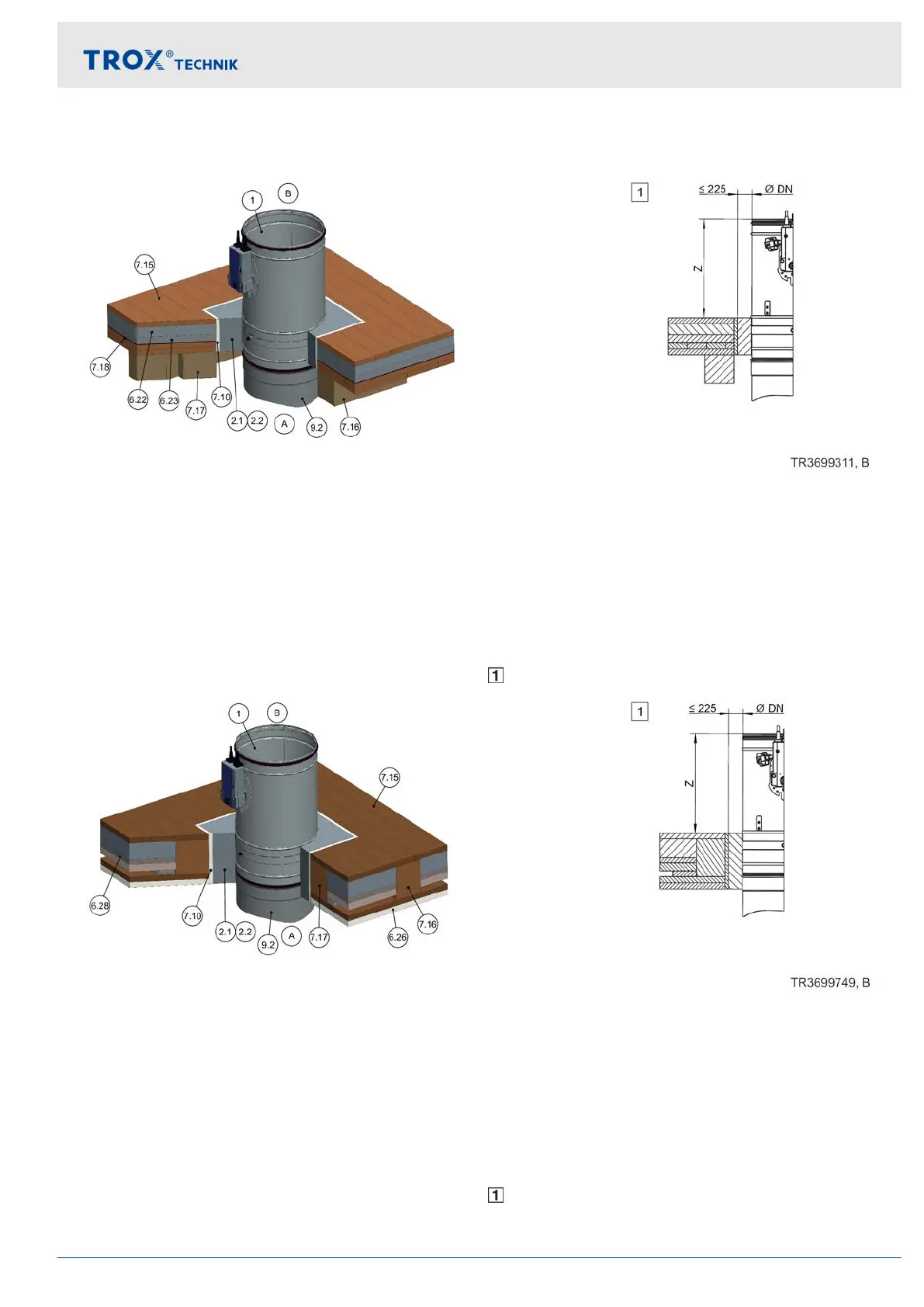

Fig. 104: Mortar-based installation into historical wooden beam ceilings, shown upright (also applicable for sus-

pended arrangement)

1 FKR-EU

2.1 Mortar

2.2 Concrete

6.22 Screed*

6.23 Footfall sound insulation*

7.10 Trim panels (fire-resistant)

7.15 Wooden floorboard / floor covering*

7.16 Wooden beam

7.17 Trimmers, wooden beam

7.18 Formwork*

9.2 Extension piece or duct

Z Spigot construction 370 mm

Flange construction 342 mm

* Illustration representative, other ceiling construc-

tions possible according to local conditions and

ceiling manufacturers

EI 30 S

Fig. 105: Mortar-based installation into historical wooden beam ceilings, shown upright (also applicable for sus-
