Mortar-based installation in wooden beam / laminated beam ceiling, suspended

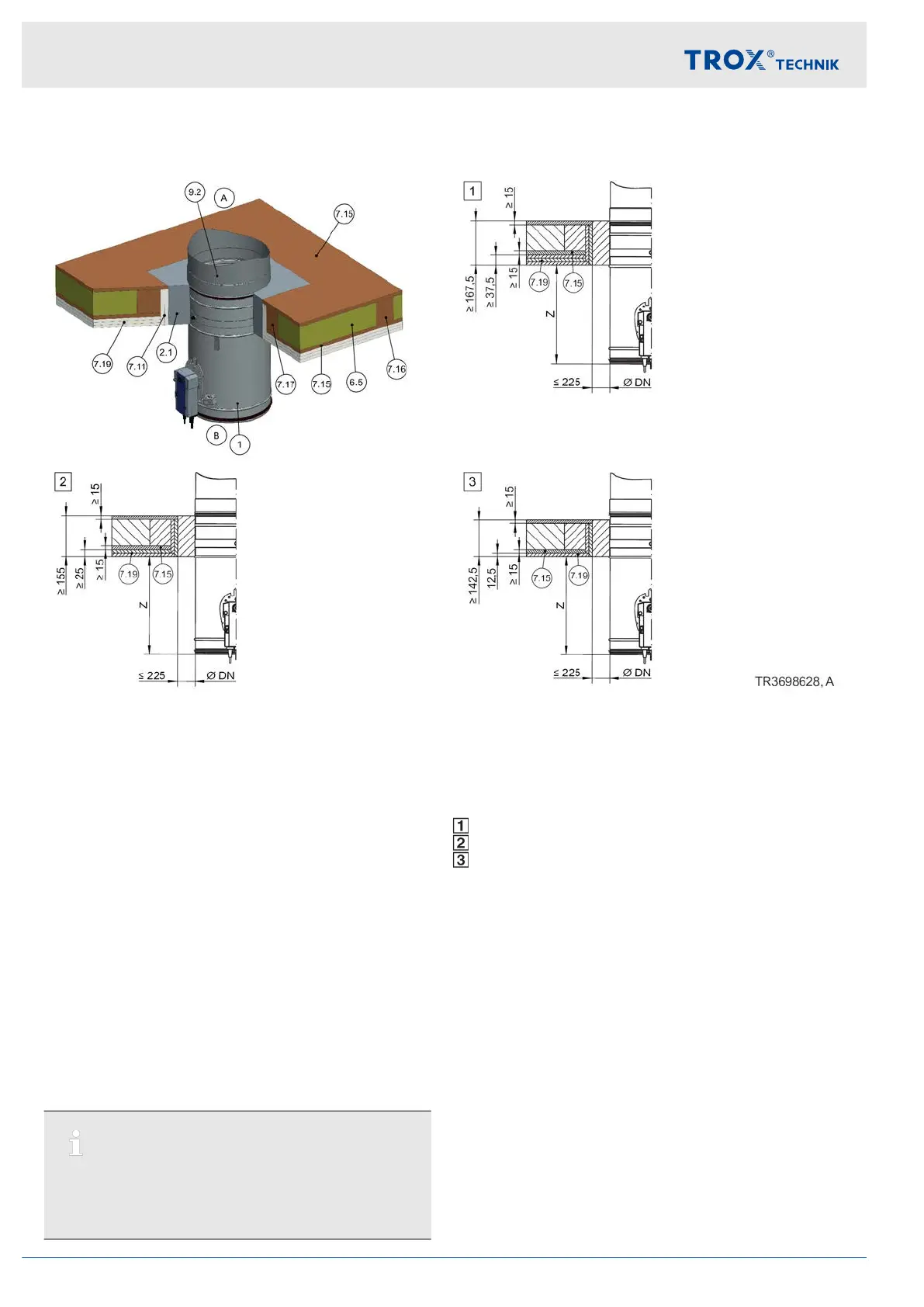

Fig. 101: Mortar-based installation into wooden beam / laminated beam ceiling, suspended (illustration representa-
tive, alternative ceiling construction possible on request)
1 FKR-EU
2.1 Mortar
6.5 Mineral wool fill if required
7.11 Trim panel, same construction as 7.19
7.15 Wood sheet, min. 600 kg/m³
7.16 Wooden beam / gluelam min. 100 × 80 mm
(reduce distances between wooden beams to the
size of the installation opening)
7.17 Trimmers, wooden beam / glued laminated
timber min. 100 × 80 mm
7.19 Fire-resistant cladding (ceiling-dependent)
9.2 Extension piece or duct
Z Spigot construction 370 mm
Flange construction 342 mm
Up to EI 90 S
Up to EI 60 S
EI 30 S
Additional requirements: mortar-based installation
into wooden beam / laminated beam ceilings
Wooden beam ceiling,
Ä
on page 36
≥ 75 mm distance from fire damper to load-bearing
structural elements
≥ 200 mm distance between two fire dampers in
separate installation openings
Note:
Structural and fire resistance properties of the ceiling
construction, including the attachment to the con-
crete or any required reinforcement, have to be eval-
uated and ensured by others.
Installation
Wooden beam ceilings > Mortar-based installation into wooden beam cei...
Fire damper FKR-EU130
