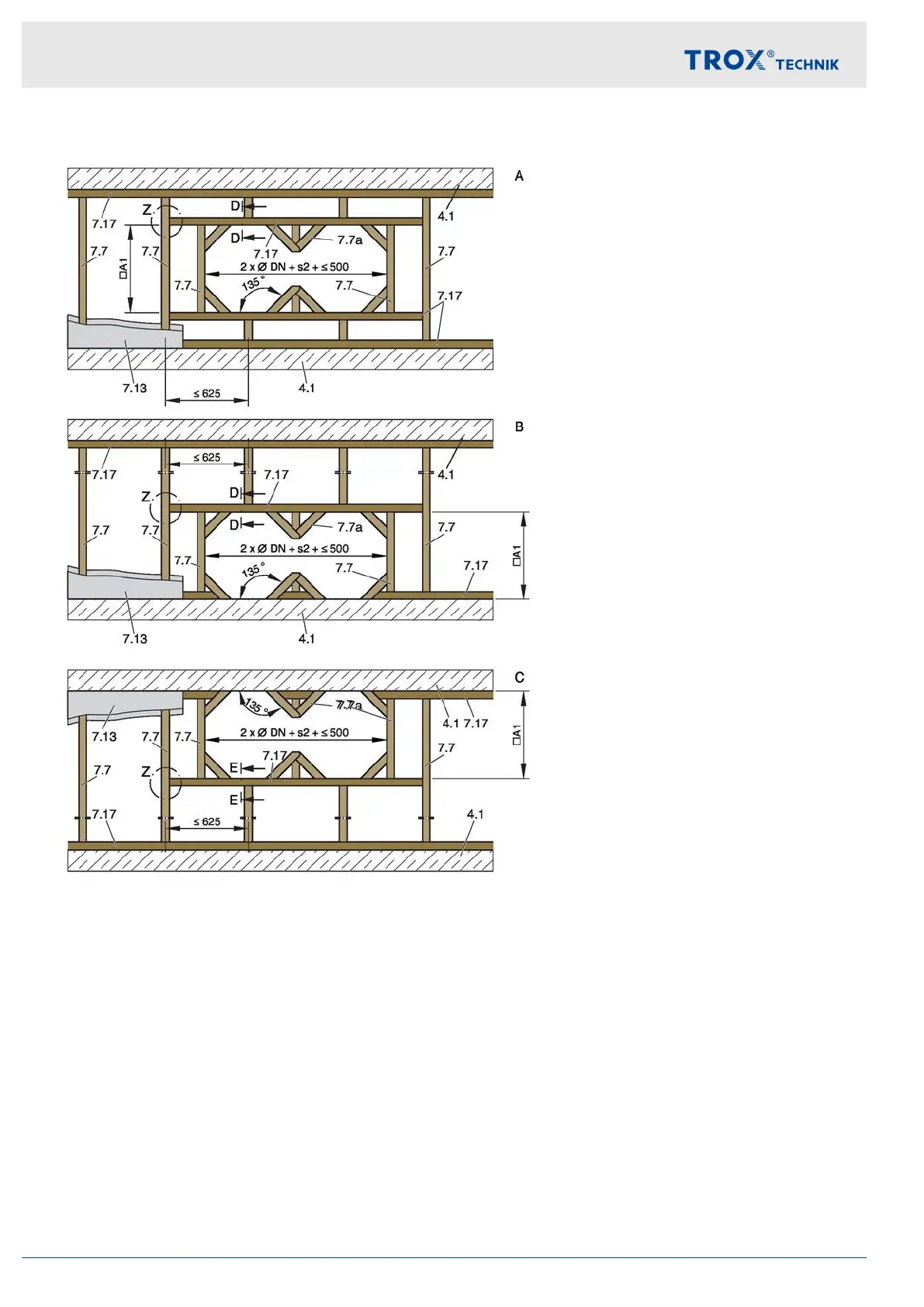

Fig. 51: Lightweight partition wall with timber support structure and cladding on both sides, flange to flange,
nominal sizes:
Æ
nominal width 450 – 800
A Timber stud wall
B Timber stud wall, installation near the floor
C Timber stud wall, installation near the ceiling
4.1 Solid ceiling slab / solid floor
5.1 Dry wall screw
5.13 Wood screw or pin
6.5 Mineral wool (depending on wall construction)
7.7 Timber stud, at least 60 × 80 mm
7.7a Timber support structure, min. 60 × 80 mm, only
for mortar-based installation, nominal sizes:
Æ nominal width 450 – 800
7.11 Trim panels, double layer, staggered joints
7.13 Cladding
7.17 Trimmers, timber stud / nogging,
at least 60 × 80 mm
☐A Clear installation opening
☐A1 Opening in the timber support structure,
☐A1 = ☐A + (4 × trim panels)
For details see Fig. 49
Installation
Lightweight partition walls with timber support ... > General
Fire damper FKR-EU72
