Solid wood wall/CLT wall, "flange to flange"

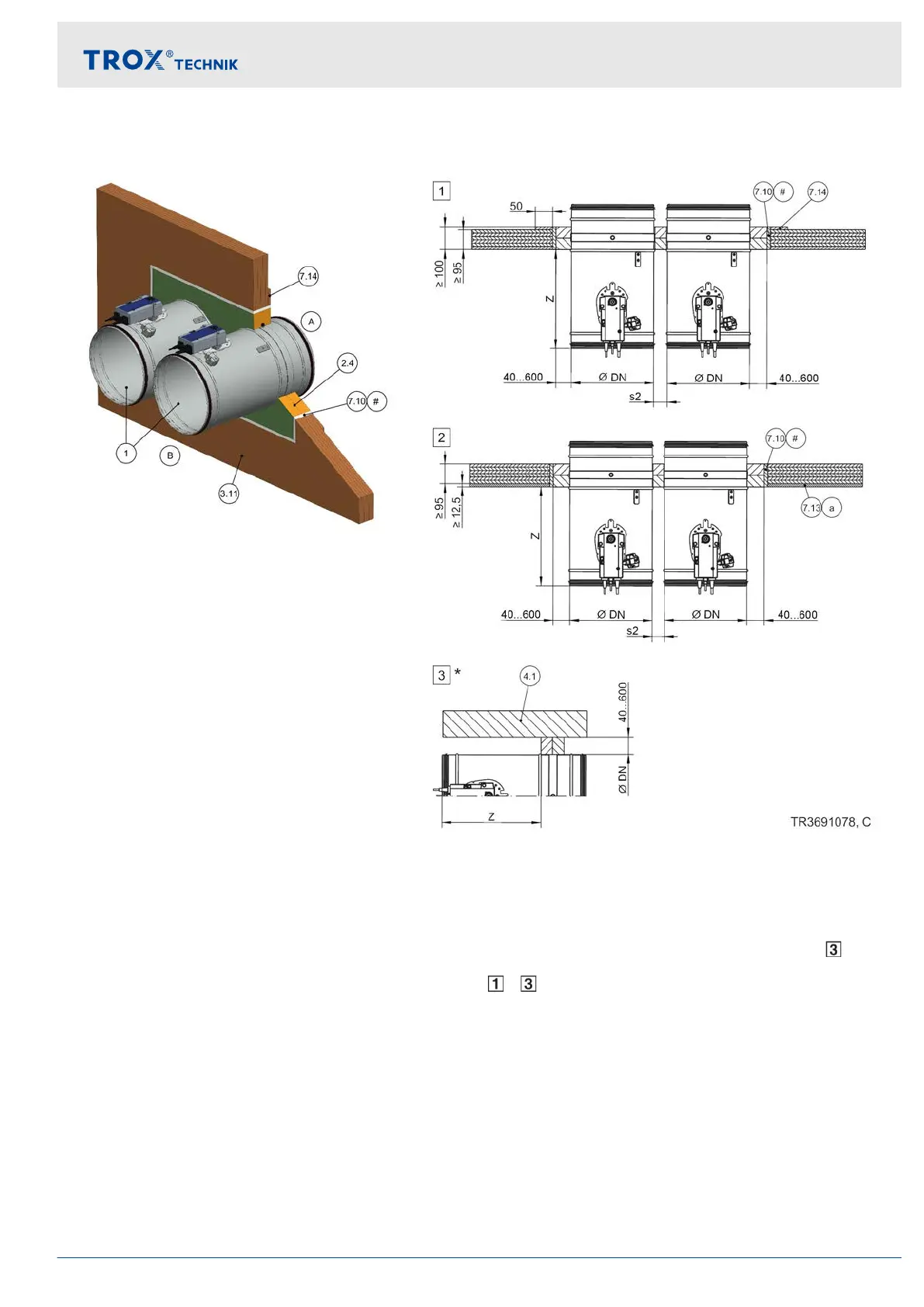

Fig. 73: Dry mortarless installation into a solid wood wall or CLT wall, with a fire batt, "flange to flange"
1 FKR-EU
2.4 Coated board system
3.11 Solid wood wall / CLT wall
4.1 Solid ceiling slab / solid floor
7.10 Trim panels (fire-resistant)
7.13a Cladding, single-layer, fire-resistant
7.14 Reinforcing board of the same material as the
wall
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 600 mm
Flange construction 80 – 600 mm
*
Installation near the floor analogous to
# optional
–
Up to EI 60 S
Additional requirements: dry mortarless installation
with fire batt in solid wood walls
Solid wood wall or CLT wall,
Ä
on page 35
Fire batt systems, installation details, distances /
dimensions,
Ä
on page 32 f
Suspension and fixing
Ä
Chapter 5.14 ‘Fixing the
fire damper’ on page 135
Installation
Solid wood walls > Dry mortarless installation with fire batt
Fire damper FKR-EU 97
