Flexible connectors
Flexible connectors are used to avoid both tension and
compression.

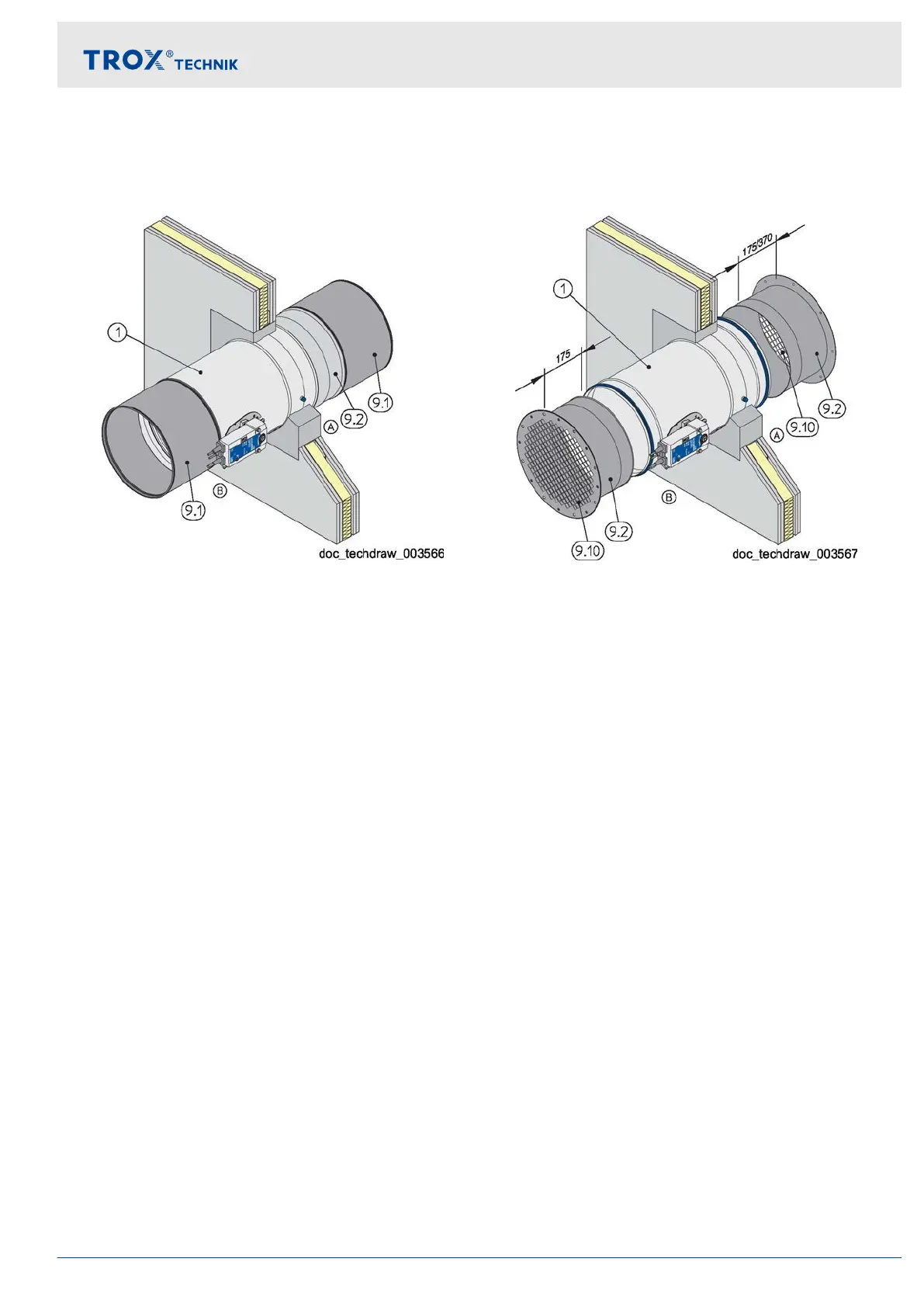

Fig. 110: Fire damper with flexible connectors
1 FKR-EU
9.1 Flexible connector
9.2 Extension piece or duct
Cover grilles
Cover grilles are used on non-ducted ends of fire
dampers.
Fig. 111: Fire damper with cover grille
1 FKR-EU
9.2 Extension piece or duct
9.10 Cover grille, galvanised steel, mesh aperture
10 mm, optionally on installation or operating side
If only one end is to be ducted on site, the other end
must have a cover grille.
Accessories
Fire damper FKR-EU 139
