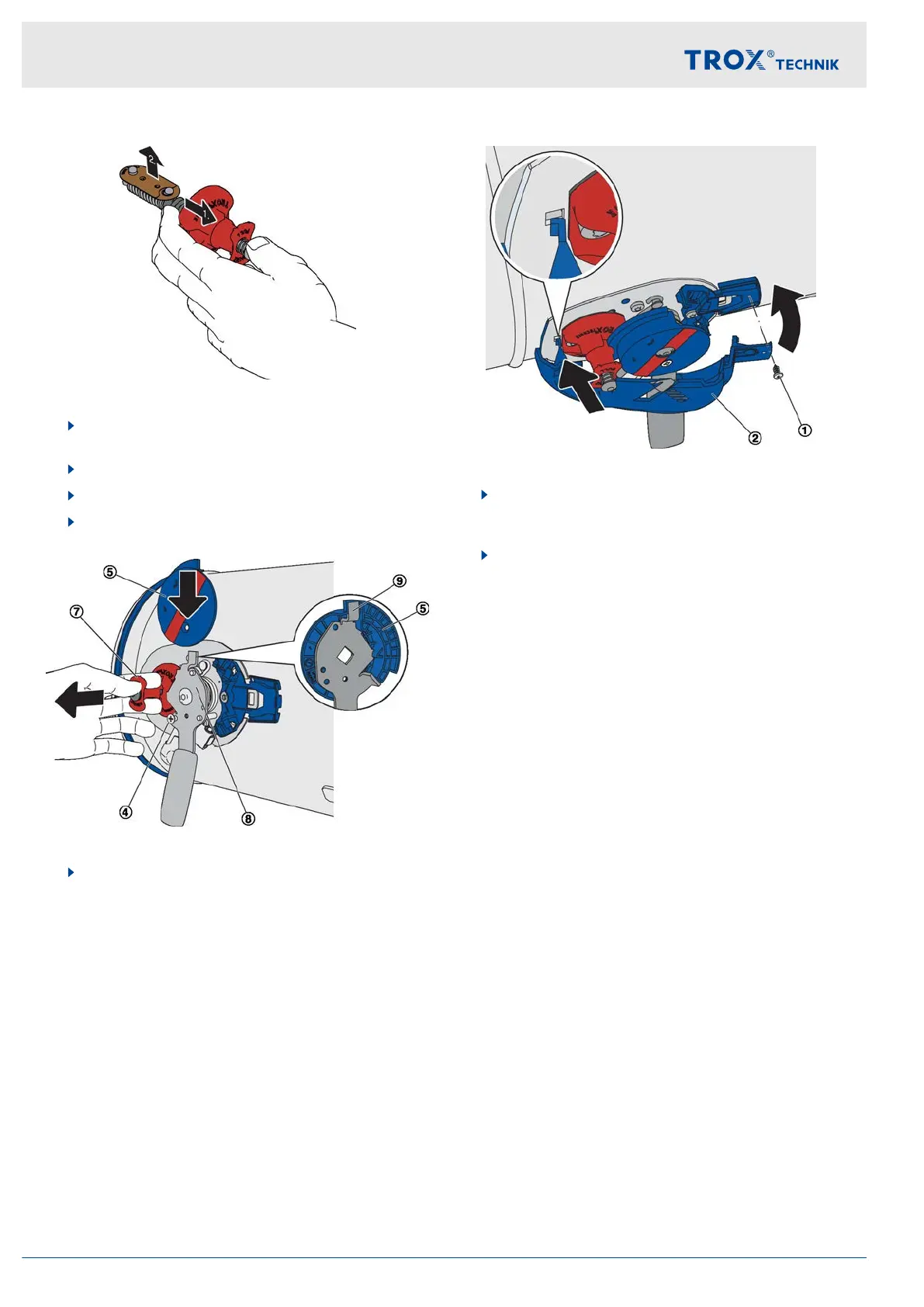

Fig. 131: Replacing the fusible link
6. Grasp the release mechanism as shown. Move
your middle fingers into the direction of the arrow
.
7. Remove the used fusible link.
8. Insert the new fusible link.
9. Push the release mechanism back into the fire
damper and fix it with the screws (6).
Fig. 132: Mounting the indicator disc
10. Pull the release mechanism (7) towards you and
hold it. Slide the indicator disc (5) from above onto
the lever (8). Make sure that the indicator disc
engages in the tab (9). Fix the indicator disc with
the screw (4).
Fig. 133: Mounting the cover
11. Hook the cover (2) into place and turn it into the
direction of the arrow
. The cover locks into place.
Fix the cover with the screw (1).
12. Carry out functional test.
Maintenance
Replacing the fusible link
Fire damper FKR-EU150
