Dimensions and weight

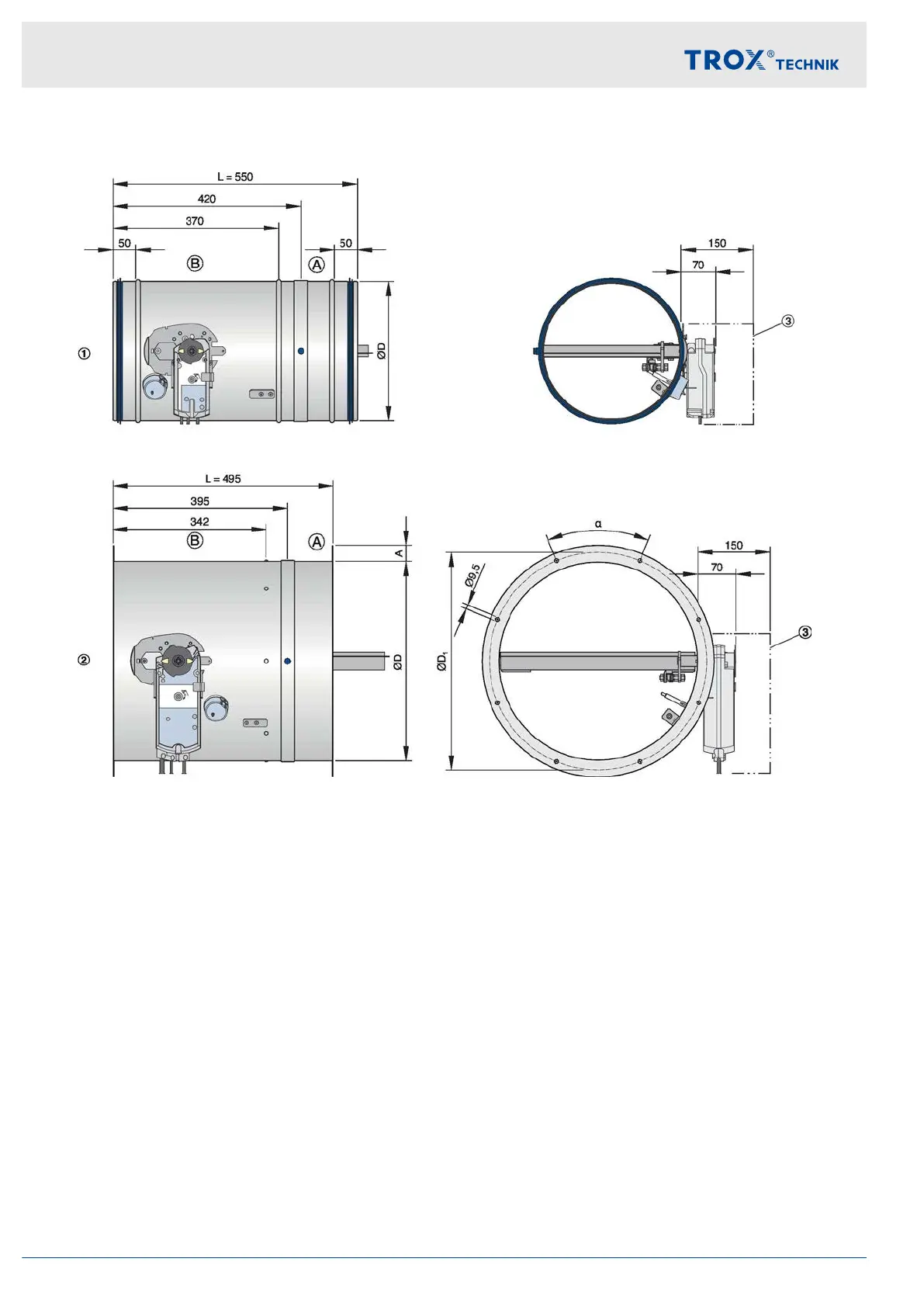

Fig. 4: FKR-EU with Siemens spring return actuator
1 Spigot construction
2 Flange construction
3 Keep clear to provide access for operation
A Installation side
B Operating side
 W
eight of FKR-EU with fusible link + approx. 1.4 kg (GNA...) or 2.5 kg (GGA...), see table Ä 12 .
Technical data
FKR-EU with spring return actuator
Fire damper FKR-EU16
