Mortar-based installation into a solid wall with flexible ceiling joint

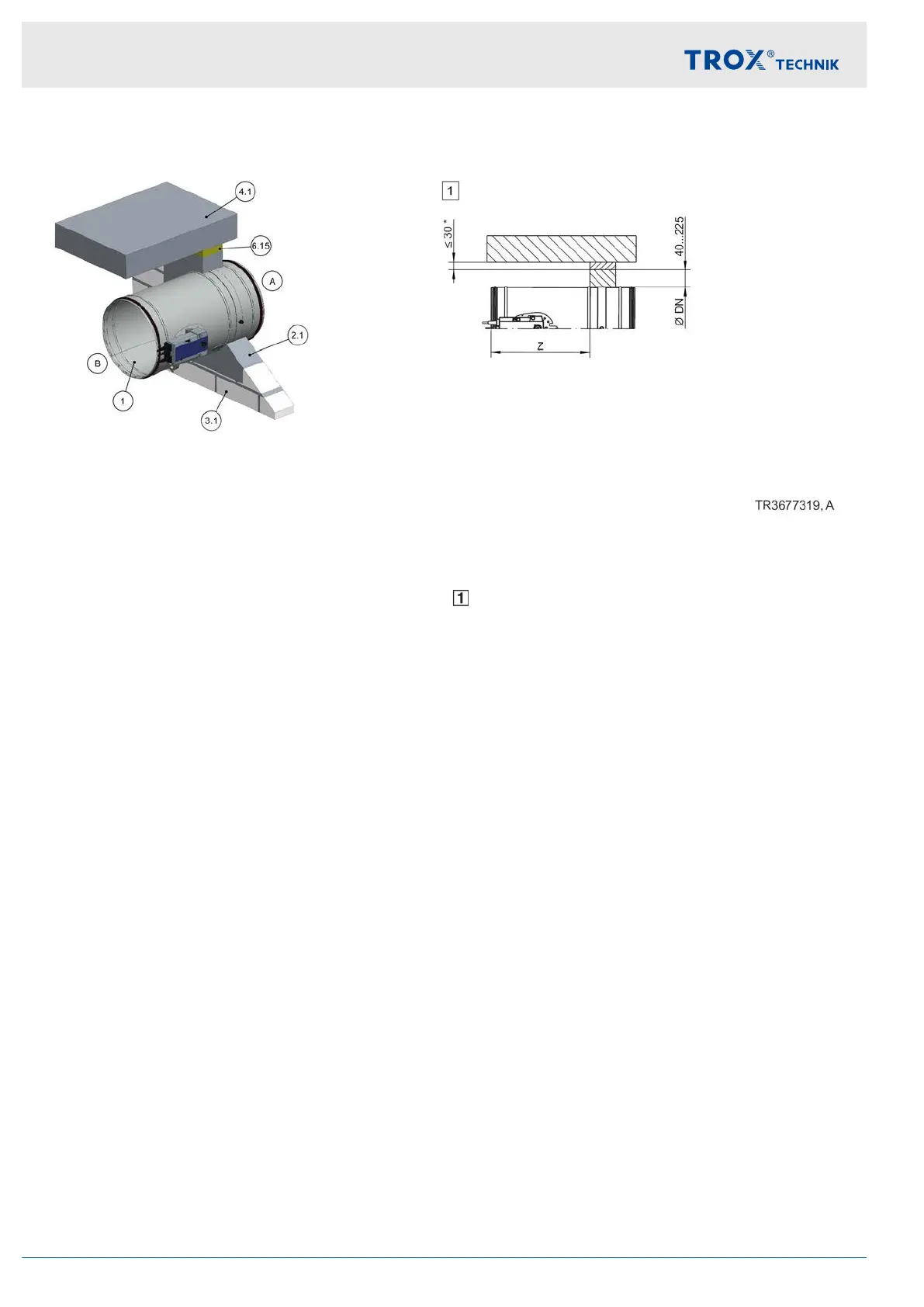

Fig. 25: Mortar-based installation into a solid wall with flexible ceiling joint
1 FKR-EU
2.1 Mortar
3.1 Solid wall
4.1 Solid ceiling slab
6.15 Mineral wool, depending on the flexible ceiling
joint
Z Spigot construction 370 mm
Flange construction 342 mm
Up to EI 120 S
* After subsidence of the ceiling slab
Note on flexible ceiling joint: representative illustration. The distance to the ceiling depends on the design of the
flexible ceiling joint, the expected ceiling subsidence and the specifications of the wall manufacturer.
Additional requirements: mortar-based installation
into solid walls
Solid wall
Ä
on page 34
Installation
Solid walls > Mortar-based installation
