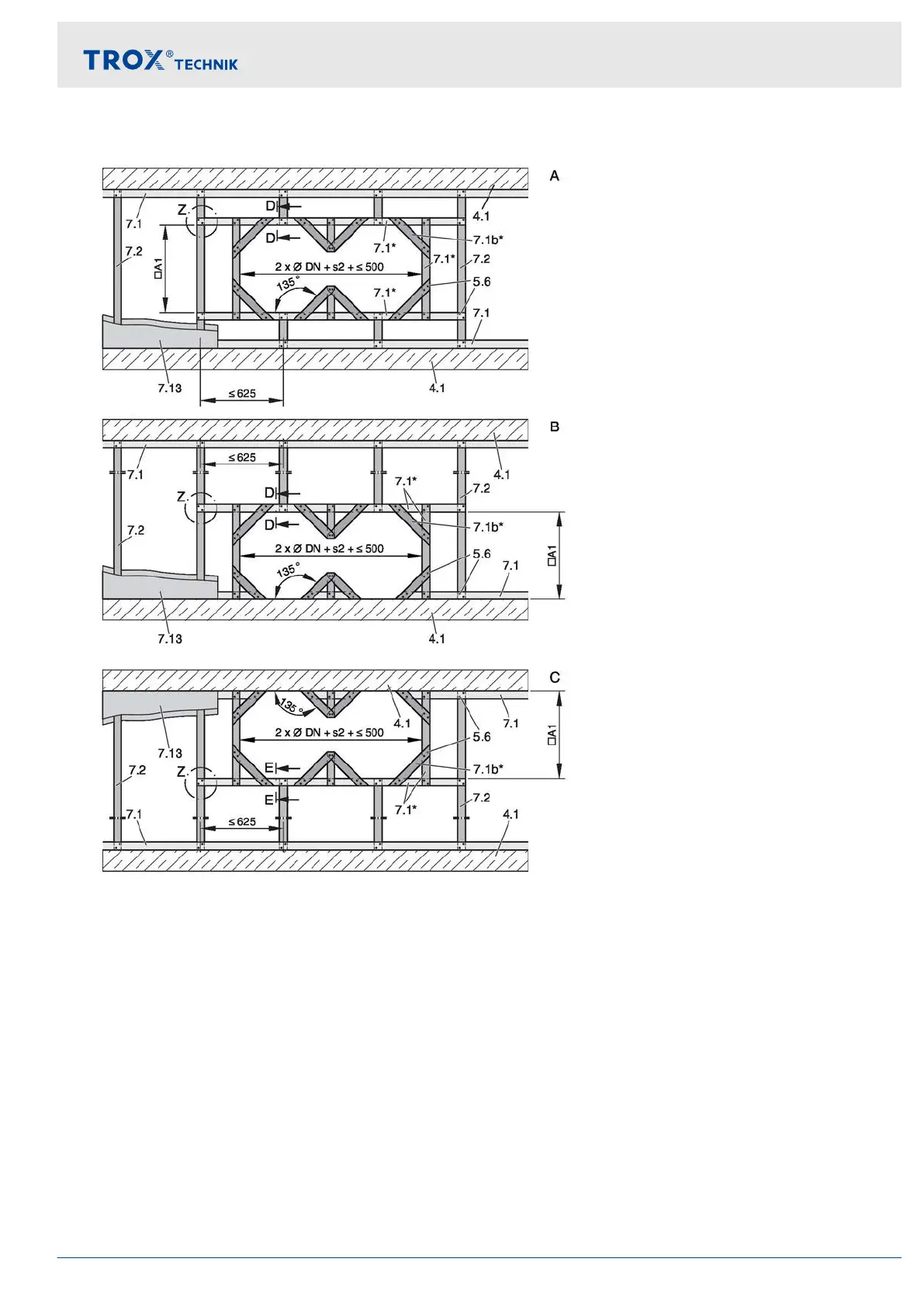

Fig. 32: Lightweight partition wall with metal support structure and cladding on both sides, flange to flange,
Æ nominal width 450 – 800, caption Ä Fig. 33
For details see Fig. 30
Installation
Lightweight partition walls > General
Fire damper FKR-EU 49
