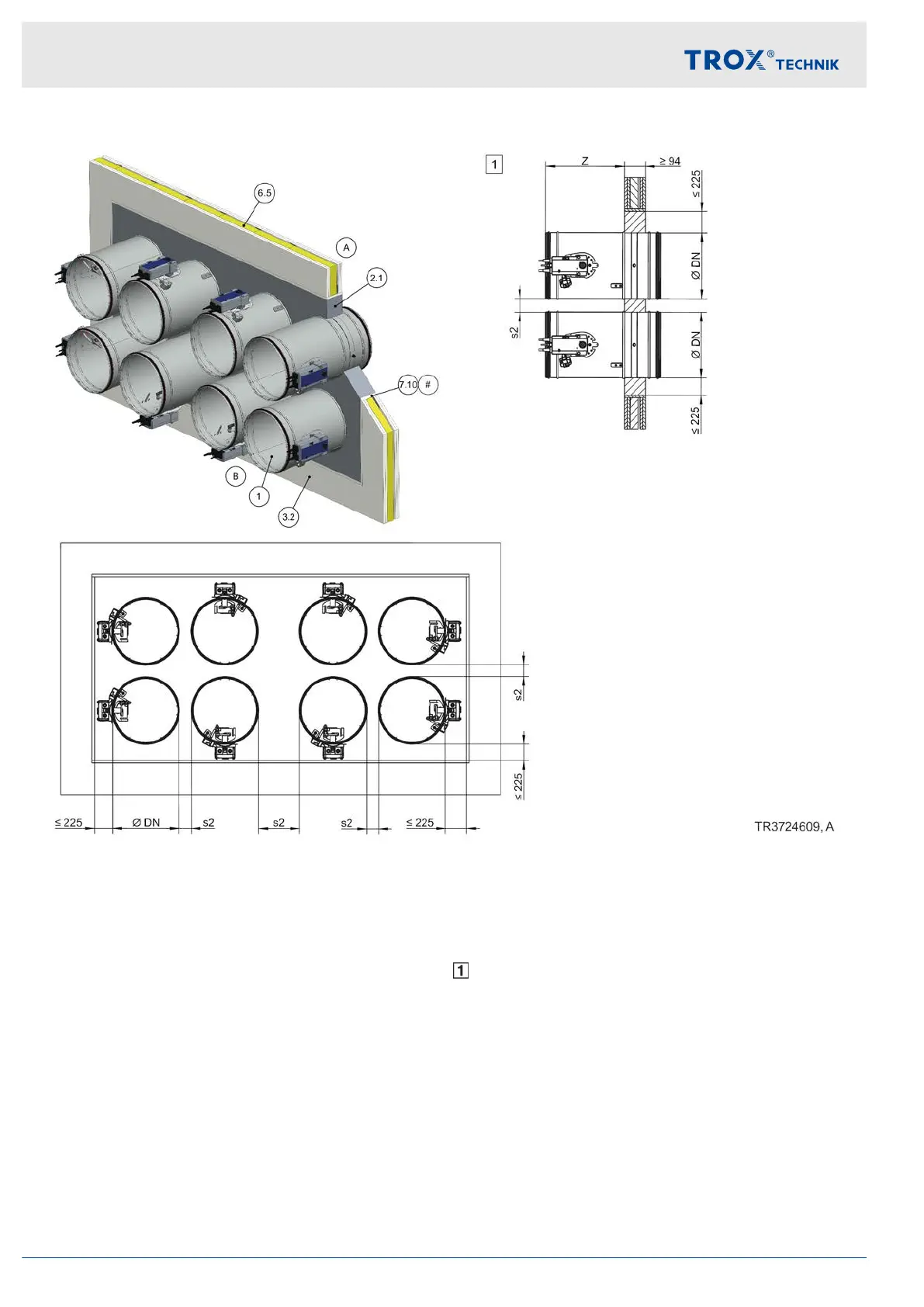

Fig. 41: Mortar-based installation – multiple occupancy of an installation opening
1 FKR-EU
2.1 Mortar
3.2 Lightweight partition wall with metal support
structure, cladding on both sides
3.6 Compartment wall or safety wall with metal sup-
port structure, cladding on both sides
6.5 Mineral wool (depending on wall construction)
7.10 Trim panels
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 225 mm
Flange construction 80 – 225 mm
# Depending on the wall structure
Up to EI 90 S
Installation
Lightweight partition walls > Mortar-based installation – multiple occupancy...
Fire damper FKR-EU60
