Half-timbered construction, combined, FKR-EU and FK2-EU

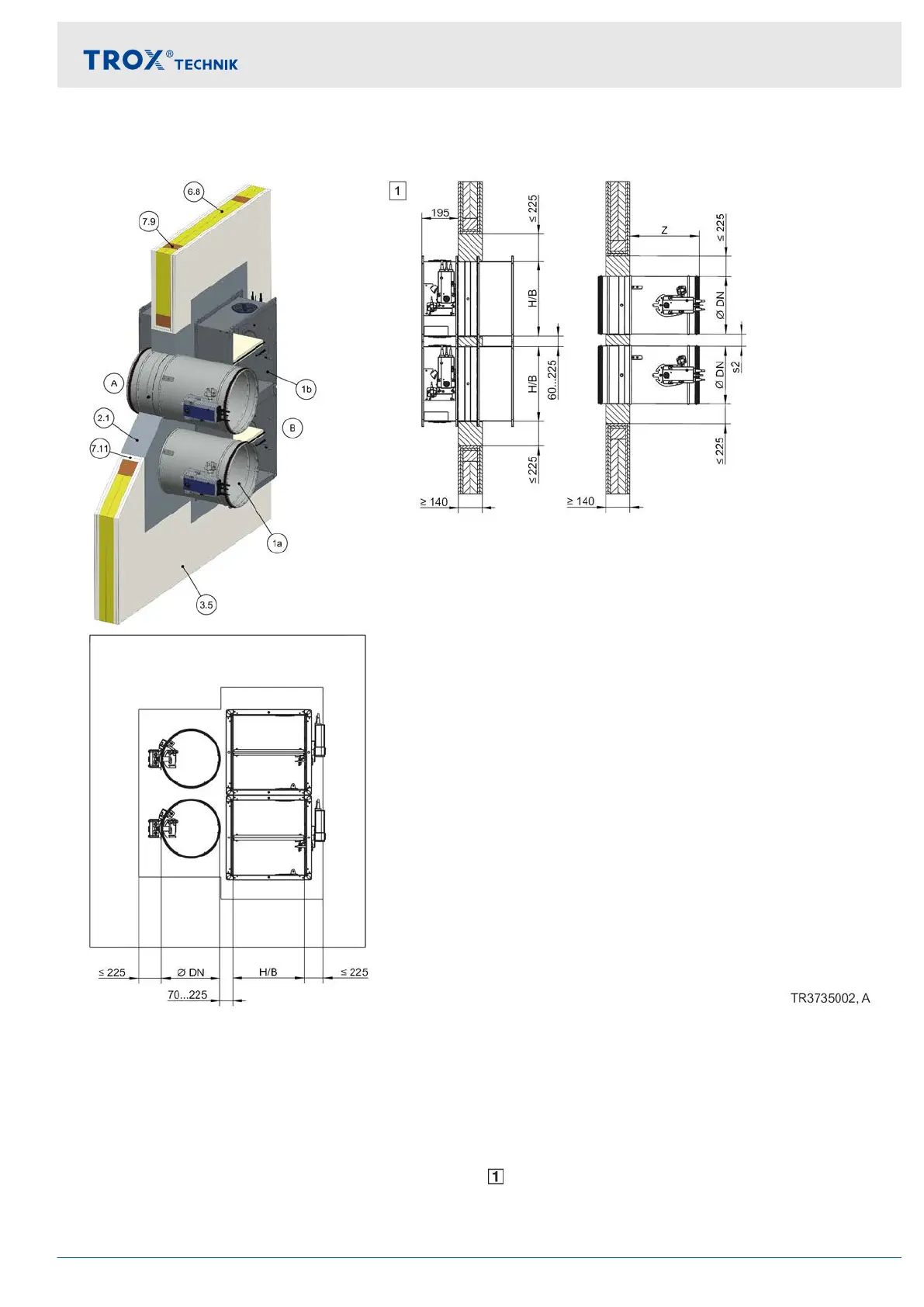

Fig. 58: Mortar-based installation into a lightweight partition wall with half-timbered construction, FK2-EU and FKR-
EU combined
1a FKR-EU
1b FK2-EU up to B × H ≤ 800 × 400 mm
2.1 Mortar
3.5 Half-timbered construction, cladding on both sides
6.8 Infill (cavities completely filled with mineral wool
≥ 1000 °C, ≥ 50 kg/m³, or bricks, aerated concrete,
lightweight concrete, reinforced concrete or clay)
7.9 Timber structure
7.11 Trim panels, double layer with staggered joints,
fire-resistant
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 225 mm
Flange construction 80 – 225 mm
Up to EI 90 S
Installation
Lightweight partition walls with timber support ... > Mortar-based installation
Fire damper FKR-EU 79
