Half-timbered wall

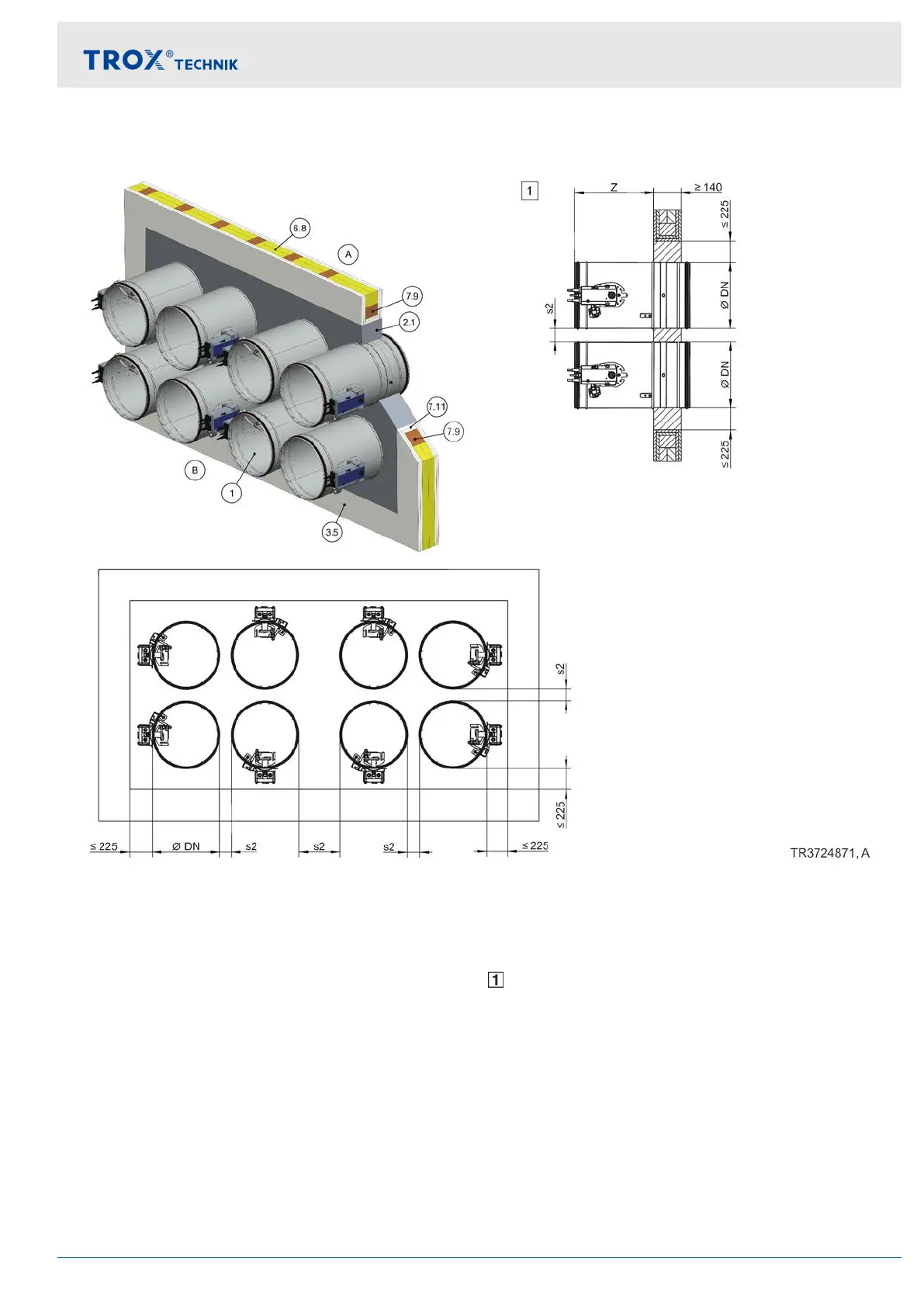

Fig. 61: Mortar-based installation – multiple occupancy of an installation opening in half-timbered construction
1 FKR-EU
2.1 Mortar
3.5 Half-timbered construction, cladding on both
sides
6.8 Infill (cavities completely filled with mineral wool
≥ 1000 °C, ≥ 50 kg/m³, or bricks, aerated con-
crete, lightweight concrete, reinforced concrete or
clay)
7.9 Timber structure
7.11 Trim panels, double layer with staggered joints,
fire-resistant
Z Spigot construction 370 mm
Flange construction 342 mm
s2 Spigot construction 40 – 225 mm
Flange construction 80 – 225 mm
Up to EI 90 S
Installation
Lightweight partition walls with timber support ... > Mortar-based installation – multiple occupancy...
Fire damper FKR-EU 83
