KEYPAD
The Model 2701-B keypad (Figure 2–1) allows the operator to
access the gauge software. Troxler designed the keypad for ease of
use, with large keys and an anti-glare coating. Note that the function
keys are available only when the Ready screen is displayed. Table
2–1 describes the function of each key.
0
1
4
7
2
5
8
3
6
9
ENTER
ALPHA
LOCK
REF
MODE
TARGET
OFFSET
ESC
RECALL
STORE
PROJ
STATUS
YES
NO LIGHT
BACK
SPACE
SPACE
START
+
-
SETUP
R
TM
-Ready- Offset:Y
04/08/2004 04:08 PM
Prj: MY PROJECT
Mode: Continuous

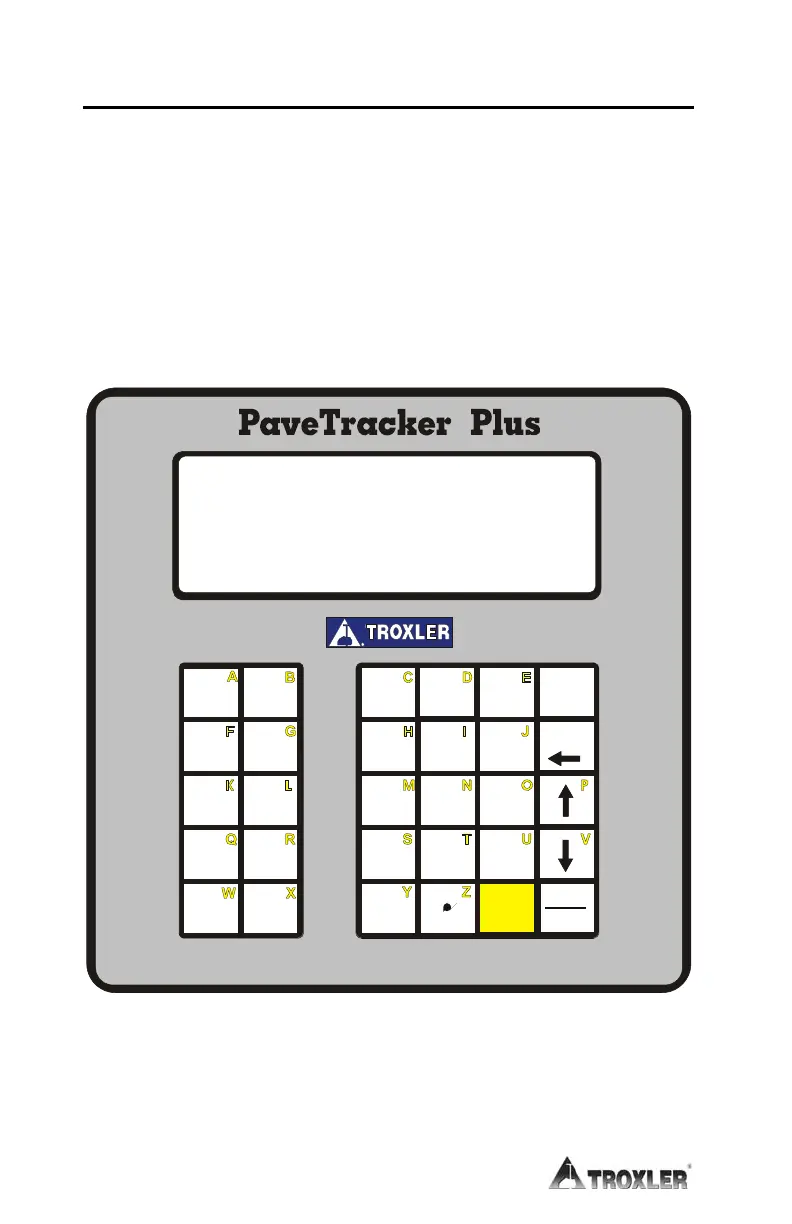

Figure 2–1. Model 2701-B Keypad
2–2
