13
Section A
Tread Belt Adjustment
Tread Belt Alignment (If Tread Belt is Not Centered)
Your treadmill’s tread belt has been properly aligned at the factory. It is important that the
treadmill be level from side to side. When the treadmill is used on an uneven surface, it
may require further adjustment. You may adjust it by the following method.
1. Unplug the treadmill and check the position of the tread belt.
NOTE:
Tread belt alignment does not have to be of equal distance
from both sides as long as the tread belt does not rub or cause
binding.

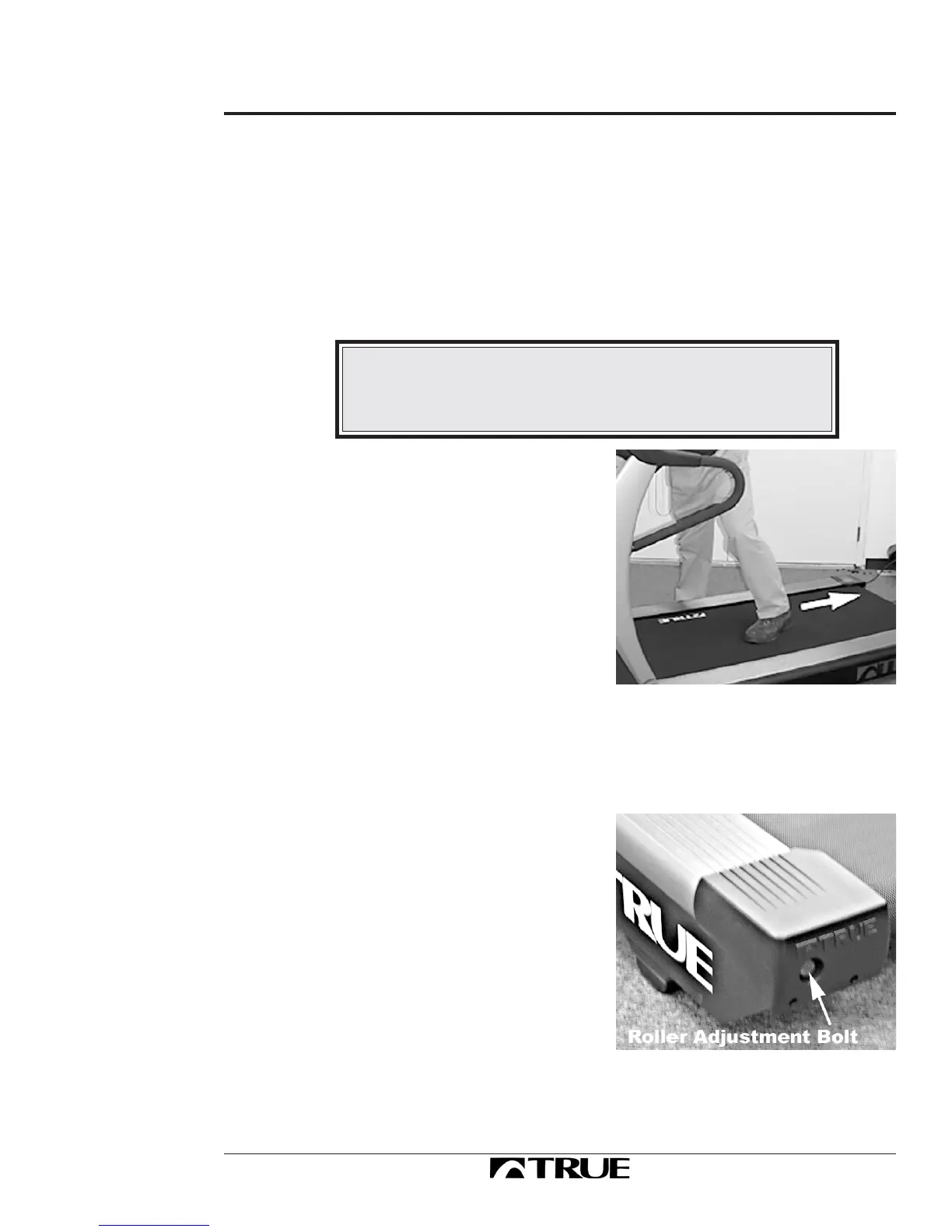

If the tread belt is rubbing on a straddle
cover use the following method to center
it:
a. Stand beside the treadmill on the side
you want to push the tread belt away
from.
b. Use one foot to push the tread belt
away from the straddle cover and
towards the back of the unit so that
the tread belt rotates.
2. Stand beside your treadmill and follow the operating
instructions for running the treadmill in Manual Mode at
5 MPH.
See the Manual Mode Section for your treadmill. Because you are not on the
tread belt you do not need to connect the SAFETY KEY lanyard clip.
3 Center the tread belt.
•
If the tread belt is off-center to the
right, use a 3/4” socket and driver
to turn the left roller adjustment
bolt 1/4 turn counterclockwise.
•
If the tread belt is off-center to the
left, use a 3/4” socket and driver
to turn the left roller adjustment
bolt 1/4 turn clockwise.
4. Let the machine run for several minutes to check the
alignment.
If more correction is needed, turn the adjustment bolt 1/4 turn and check again.
Continued on Next Page
