Tuttnauer ELARA - Technical Specifications

Page 9 of 56
3.4. Specifications
Overall Dimensions
Property Value
Max. Allowable Working Pressure (MAWP)
2.8 bar (40 psi)
Diameter
280 mm (11”)
Chamber
Depth
504 mm (19.8”)
Chamber volume
28.5 lit. (7.5 gal)
Width (A)
530 mm (20.8”)
Height (B)
444 mm (17.4”)
Length (C)
645 mm (25.4”)
External dimensions
Length with
open door (D)
950 cm (36.6”)
K
452 mm (17.8”)
F
315 mm (12.4”)
Distance between supporting legs
F - rear legs
F1 - front legs
F1
400 mm (15.7”)
Maximum load per item
0.5 kg (1.1 lb)
Maximum load per tray
2.0 kg (4.4 lb)
Maximum solid load
8.0 kg (17.6 lb)
Maximum textile load
2.0 kg (4.4 lb)
W
212 mm (8.3”)
H
21 mm (0.8”)
Tray dimensions
L
350 mm (13.7”)
No. of trays
5
IMS cassettes (optional)
4

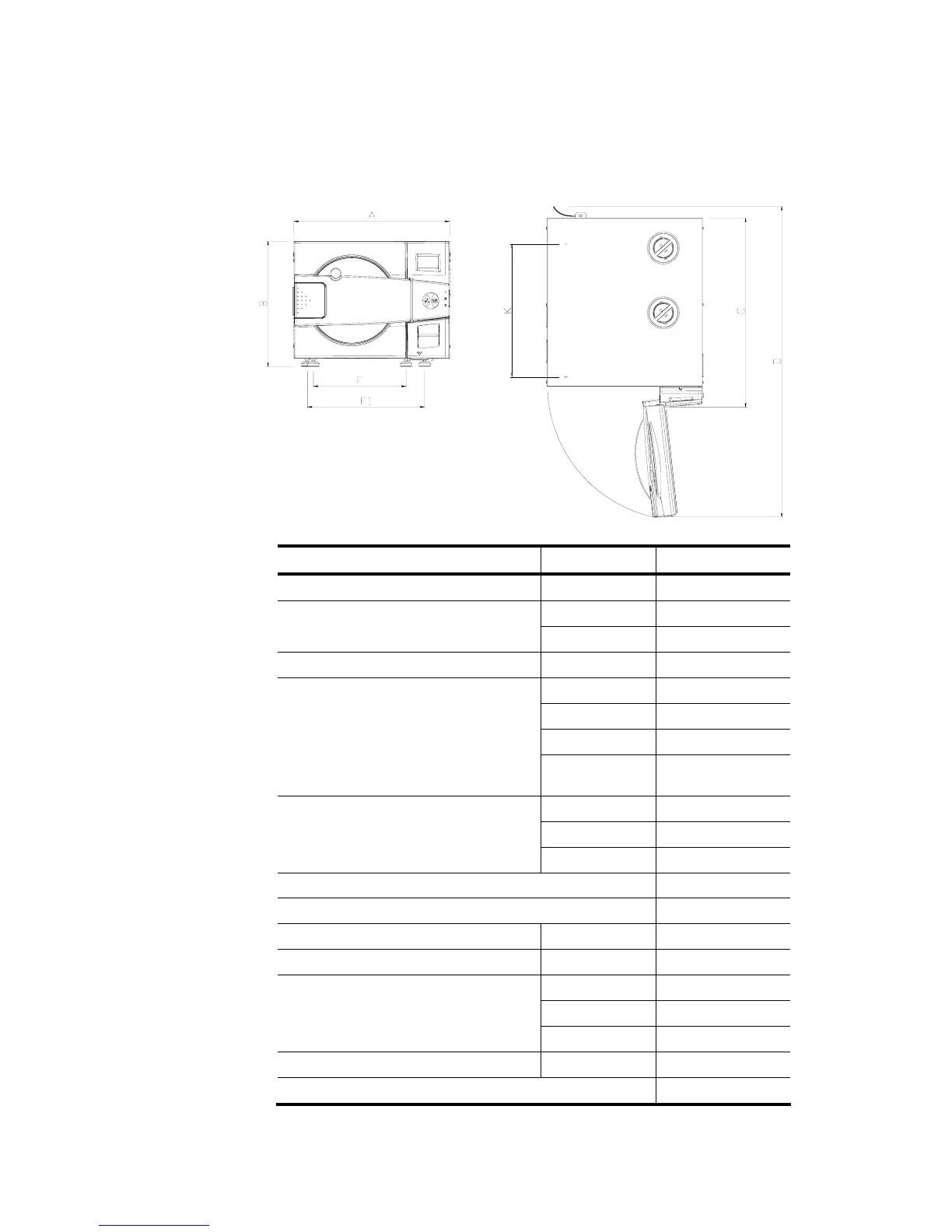

Top View Front View
