Tuttnauer ELV-D - Rear View

Page 14 of 83 Pages

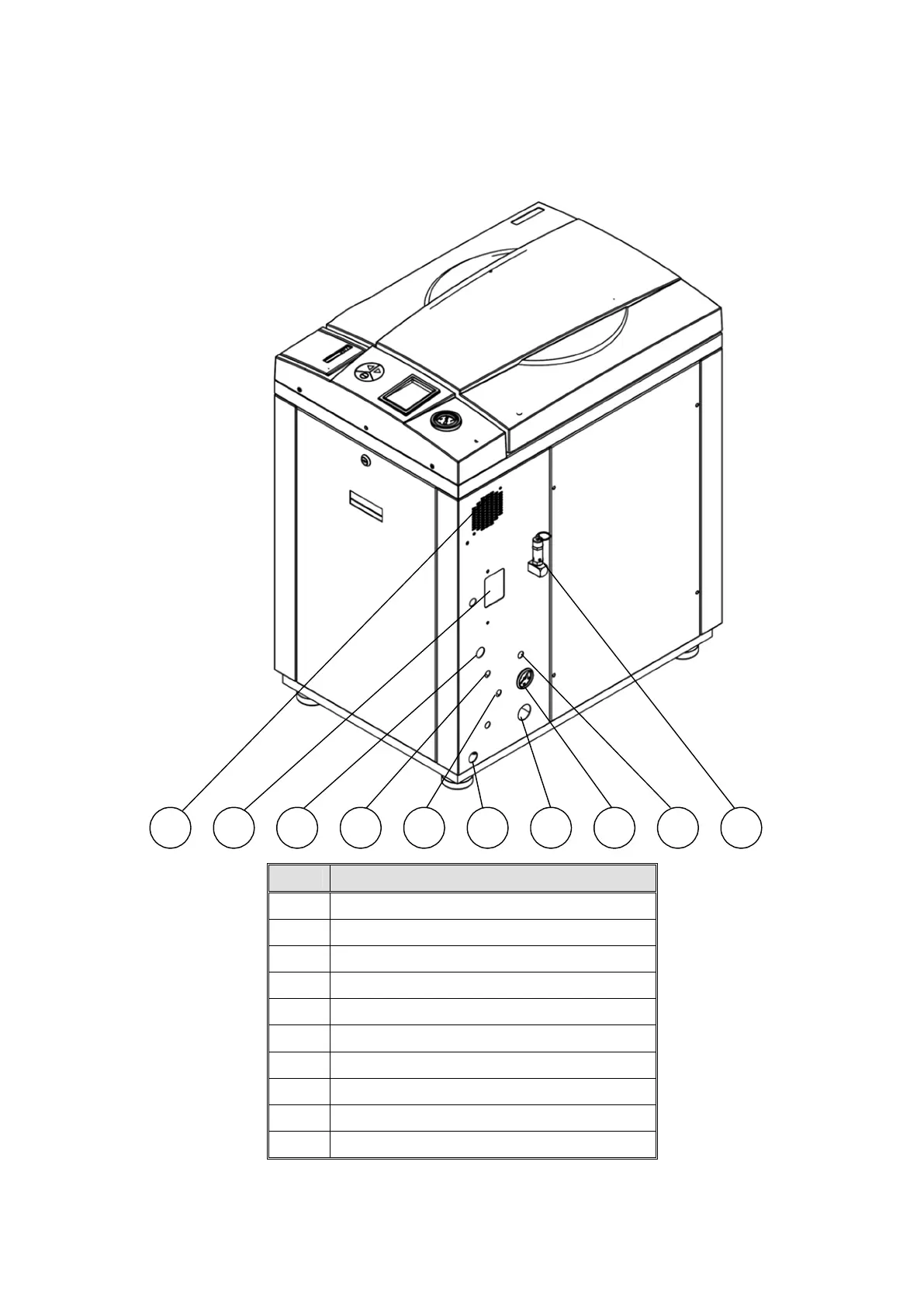

REAR VIEW
No. Description
1 Fan grill
2 Circuit breaker
3 Electrical cord
4 City (tap) water inlet
5 Compressed air inlet
6 Drain outlet
7 Air pressure regulator
8 Air pressure gauge
9 Mineral free water inlet
10 Safety relief valve
7
8
9
10
1
2
3
4
5
6
