Tuttnauer ELV-D - Front Panel Keyboard Overview

Page 20 of 83 Pages
4.1 Description and Functions of the Front Panel Keyboard
The front panel is composed of 3 sections:
1. Display screen.
2. Keypad.
3. Printer
4.1.1 Display screen

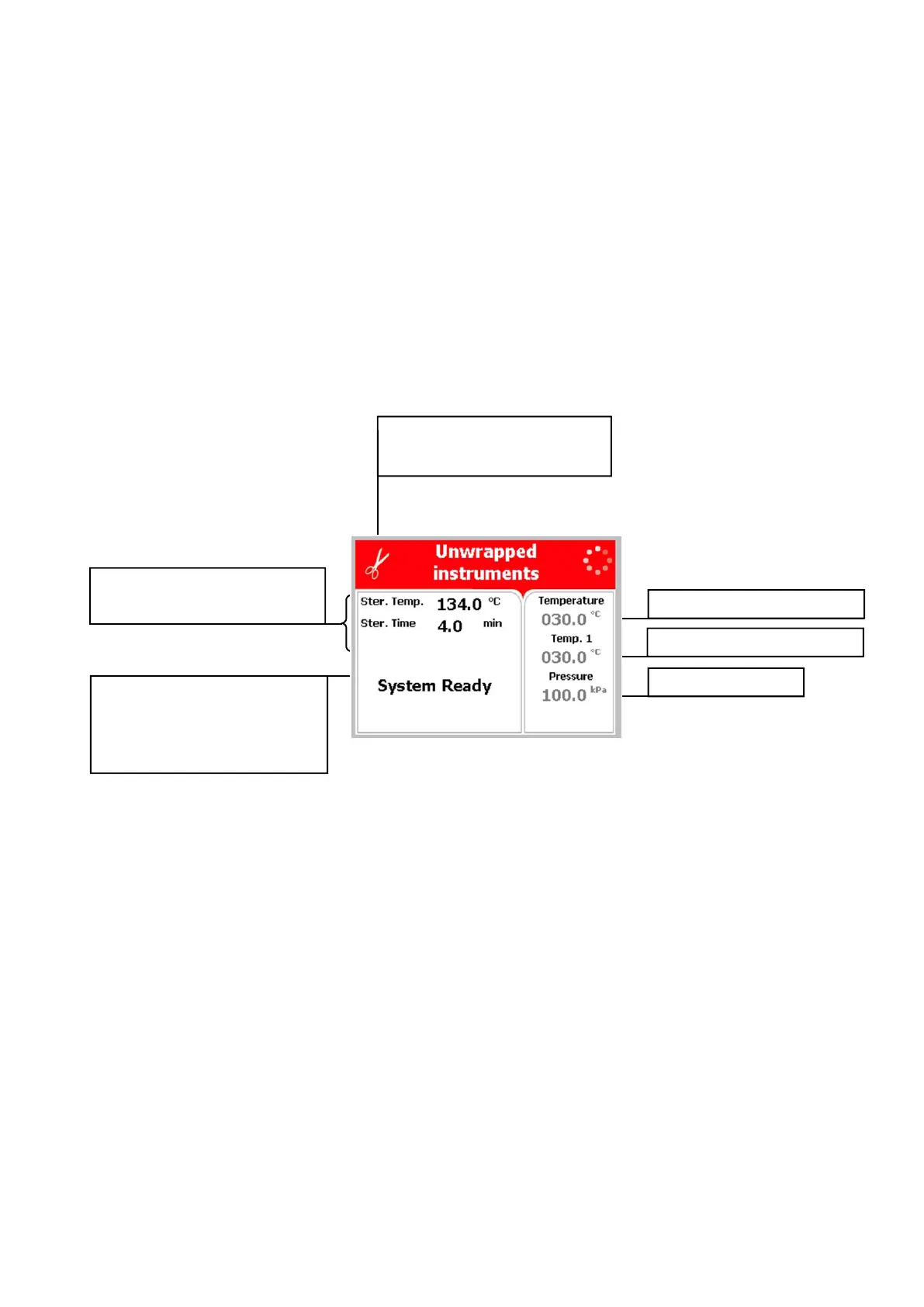

The display is a LCD panel used to display the current status of
the autoclave while using Operational Messages and Error
Messages.
Chamber temperature No. 1

System status
 Name of stage
 Error and operational
messages
Program description:
 Program icon and name

Sterilization temperature
 Sterilization time
Chamber pressure
Chamber temperature No. 2
