6.4.1 Create Pulse
6.4.1.1 Pulse A Count
Choose and enter Pulse A Count
SET PARAMETER
screen will be displayed
Set the required value, move to
Set and press UP or
DOWN keys to confirm the parameter value.
In order to exit move the cursor to
Exit and press UP
or DOWN keys
6.4.1.2 Pulse A Stay Time
Repeat the action mention in 6.2.1.1 Pulse A Count
6.4.1.3 Pulse A Low Pressure
Repeat the action mention in 6.2.1.1 Pulse A Count
6.4.1.4 Pulse A High Pressure
Repeat the action mention in 6.2.1.1 Pulse A Count
6.4.1.5 Pulse B Count
Repeat the action mention in 6.2.1.1 Pulse A Count
6.4.1.6 Pulse B Stay Time
Repeat the action mention in 6.2.1.1 Pulse A Count
6.4.1.7 Pulse B Low Pressure
Repeat the action mention in 6.2.1.1 Pulse A Count
6.4.1.8 Pulse B High Pressure
Repeat the action mention in 6.2.1.1 Pulse A Count

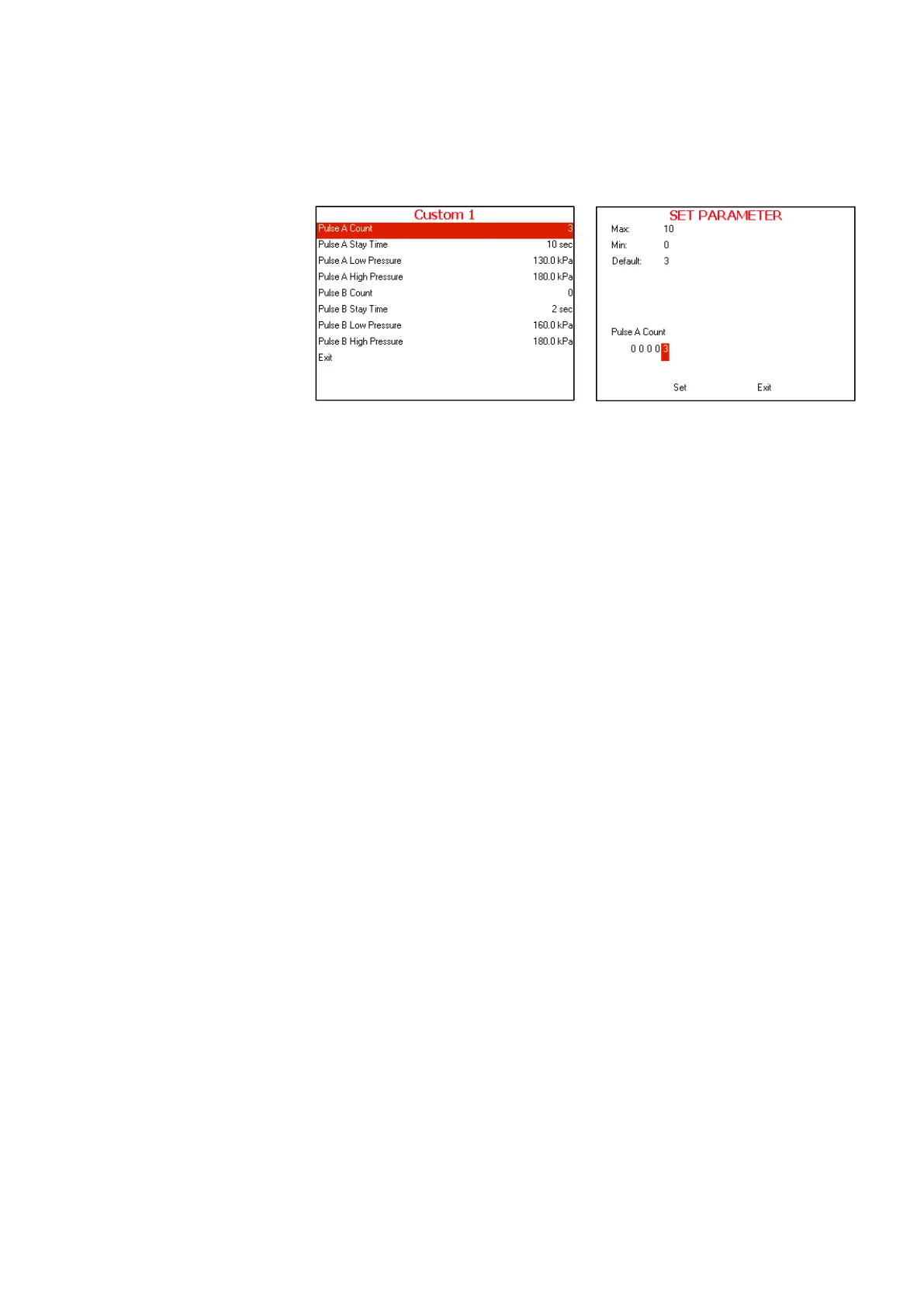

Typical display for
Create Pulse
subdirectory
