Step 3: Assembling the X and Y motor Assembling the frame 18

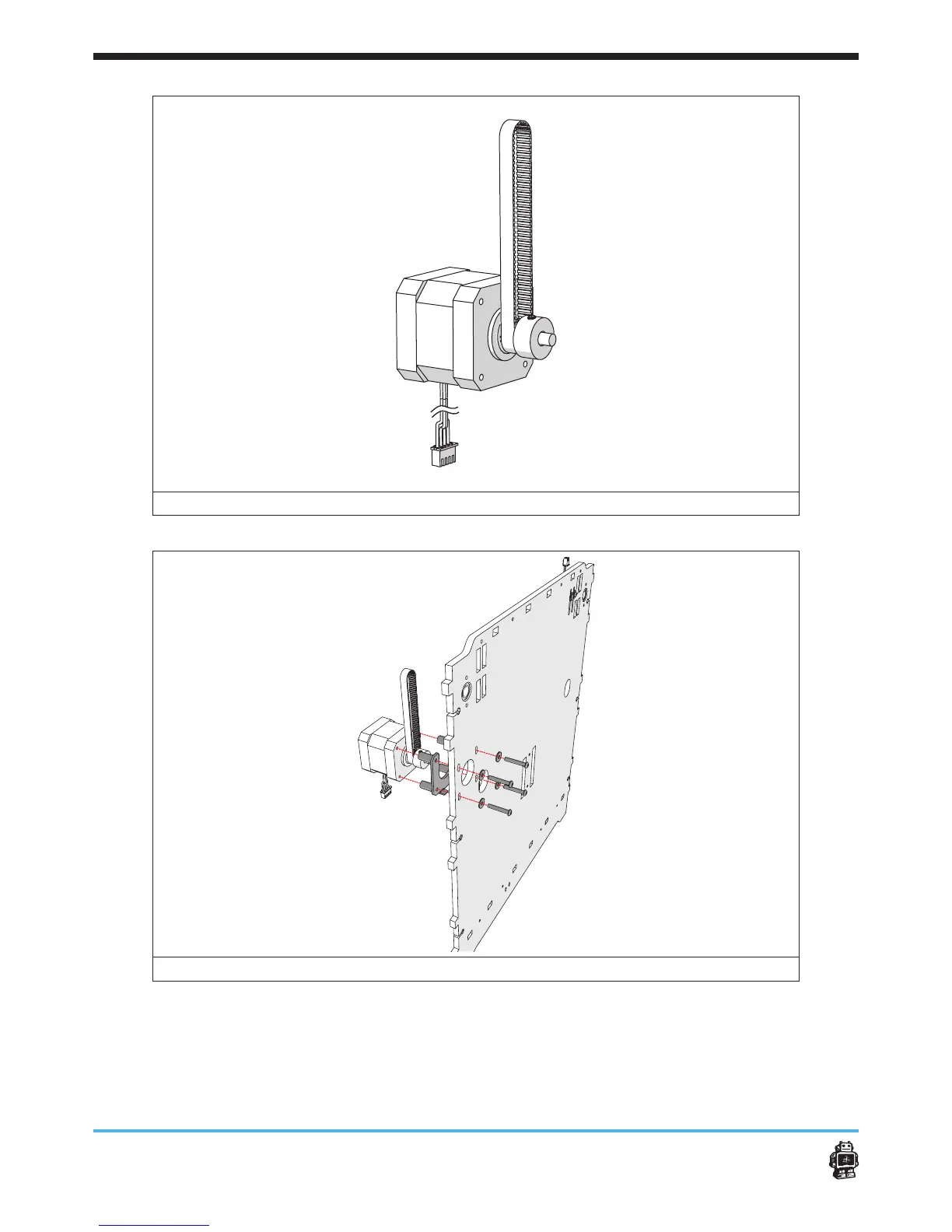

image 10: placing the timing belt around the pulley
image 11: attaching the Y motor on the BACK panel
