Step 4: Mounting the axes Assembling the X/Y axes 39
5 NOTICE: the clamp of the BACK slider block is facing downwards
along the BACK panel
- timing belt which is connected to axis SHORT (FRONT panel) with
ONE timing pulley.
5. Rotate the wooden end cap WITHOUT hole (RIGHT panel, BACK) back
to its normal position.
6. Attach the wooden end cap WITHOUT hole with ONE bolt M3 x 16mm
and ONE hex nut 3mm.
image 42: attaching the BACK axis
To attach the Axis Left (LONG) perform the following actions:
1. Get an Axis (LONG).
2. Rotate the wooden end cap WITHOUT hole (BACK panel, LEFT).
3. Put the pulleys on the timing belts.
Use ONE timing pulley for each timing belt.
5 NOTICE: the thinnest side of the timing pulley is facing to the outside.
4. Move the axis LONG from the BACK panel to the FRONT panel, see
image 43.
Place the following ve parts, in order, on the axis:
- timing belt with ONE timing pulleys.
- LEFT slider block.
5 NOTICE: the clamp of the LEFT slider block is facing upwards along
the LEFT panel.
- timing belt with ONE timing pulleys.

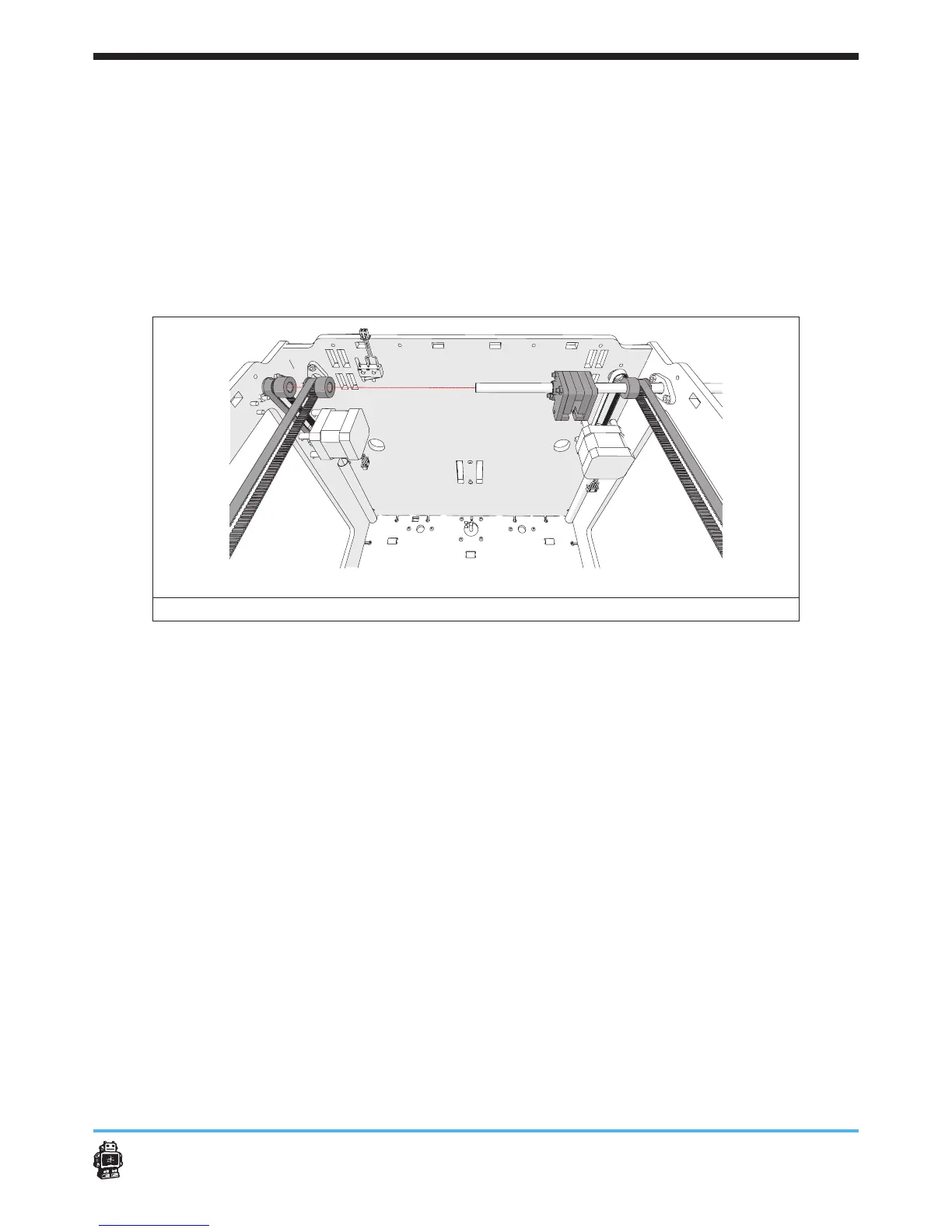

5. Put the timing belt in the FRONT slider block, see image 44.
6. Put the timing belt in the BACK slider block, see image 45.
7. Rotate the wooden end cap WITHOUT hole (BACK panel, LEFT) back
to its normal position.
8. Attach the wooden end cap WITHOUT hole with a bolt M3 x 16mm and
a hex nut 3mm.
