Step 4: Mounting the axes Assembling the X/Y axes 41
LONG (LEFT panel).
5 NOTICE: the thinnest side of the timing pulley is facing to the outside.
4. Move the axis LONG from the BACK panel to the FRONT panel, see
image 46.
Place the following ve parts, in order, on the axis LONG:
- timing belt which is connected to the motor with timing pulley.
- timing belt which is connected to axis LONG with ONE timing pulley.
- RIGHT slider block.
5 NOTICE: the clamp of the RIGHT slider block is facing upwards along
the RIGHT panel.
- timing belt which is connected to axis LONG (LEFT panel) with ONE
timing pulley.
5. Rotate the wooden end cap WITHOUT hole (BACK panel, LEFT) back
to its normal position.
6. Attach the wooden end ap WITHOUT hole with a bolt M3 x 16mm and
a hex nut 3mm.

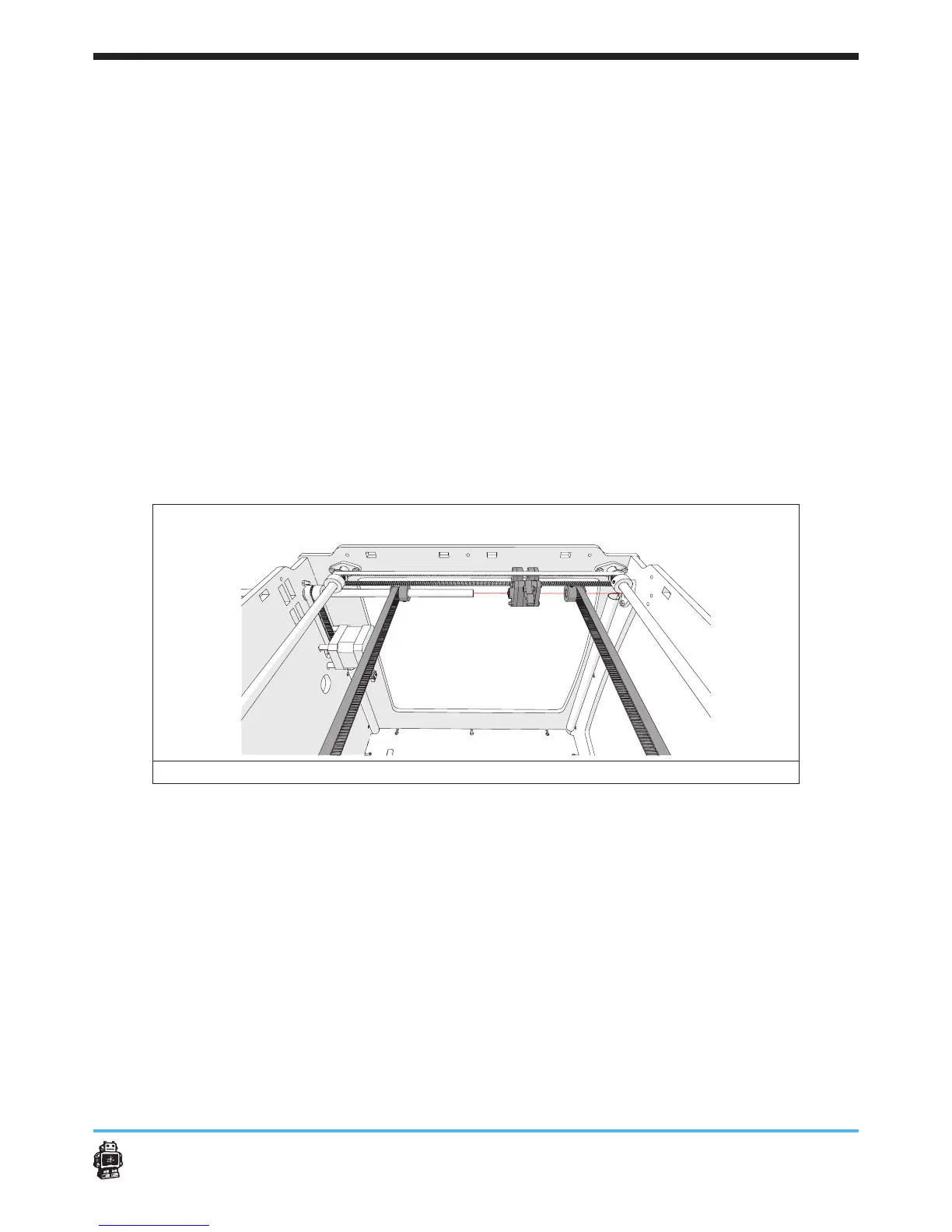

image 46: attaching the RIGHT axis
