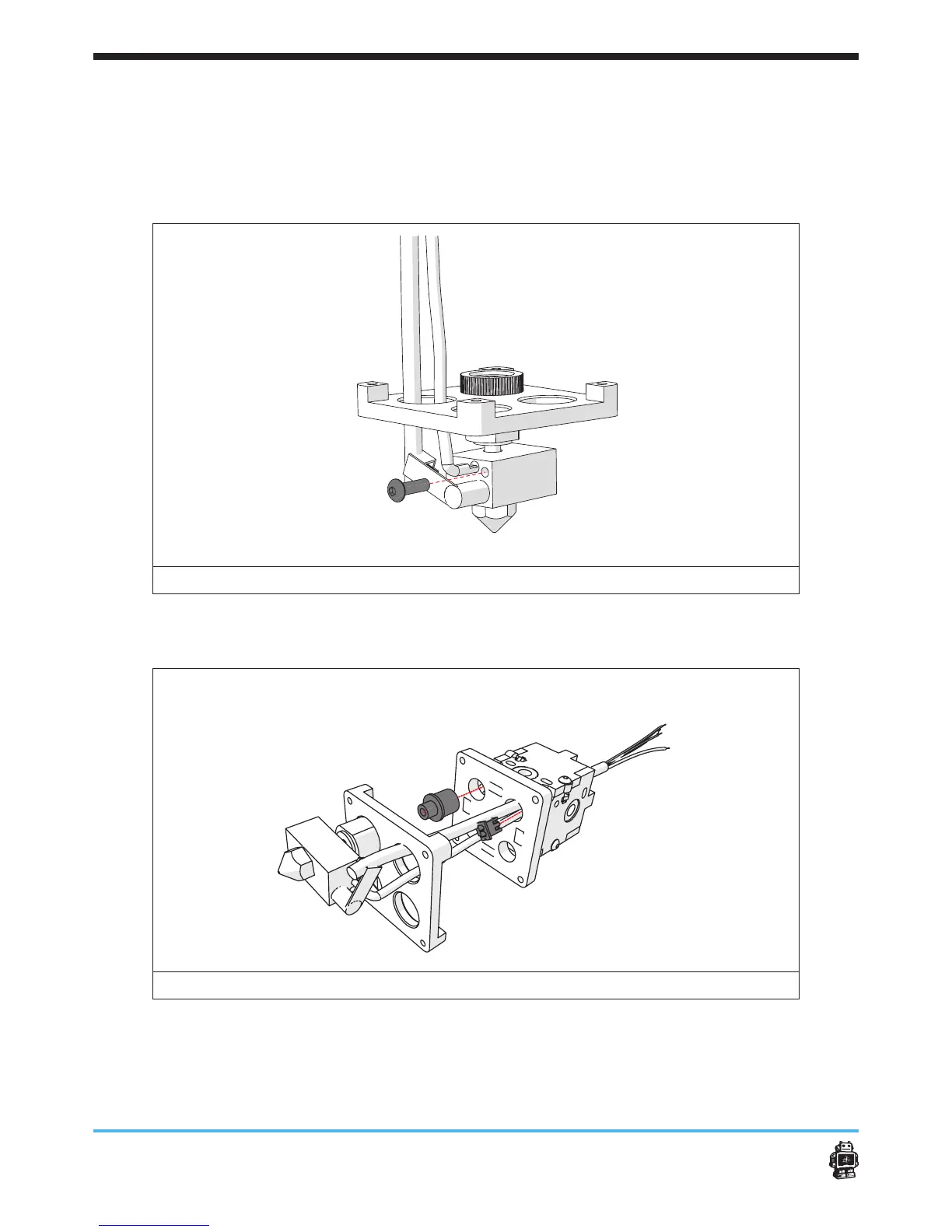

Step 1: Assemble the extrusion head housing Assembling the extrusion head48
9. Attach the PT100 and cartridge heater in the back of the aluminium
heater block, see image 54.
10. Lock the PT100 and cartridge heater.
Use ONE bolt M3 x 10mm.
image 54: attaching the thermocouple and the cartridge heater
11. Insert the teon tube in the wooden part 8B, see image 55.
image 55: attaching the teon tube
