Uponor c56

Refer to the installation preparation guidelines (see section
2.1 on previous page), and use the following guidelines when
positioning the controller:
• Position the controller just above the manifold. Check the
position of the 230 V power outlet.
• Check that the cover of the controller can be removed
easily.
• Check that connectors and switches are easily accessible.

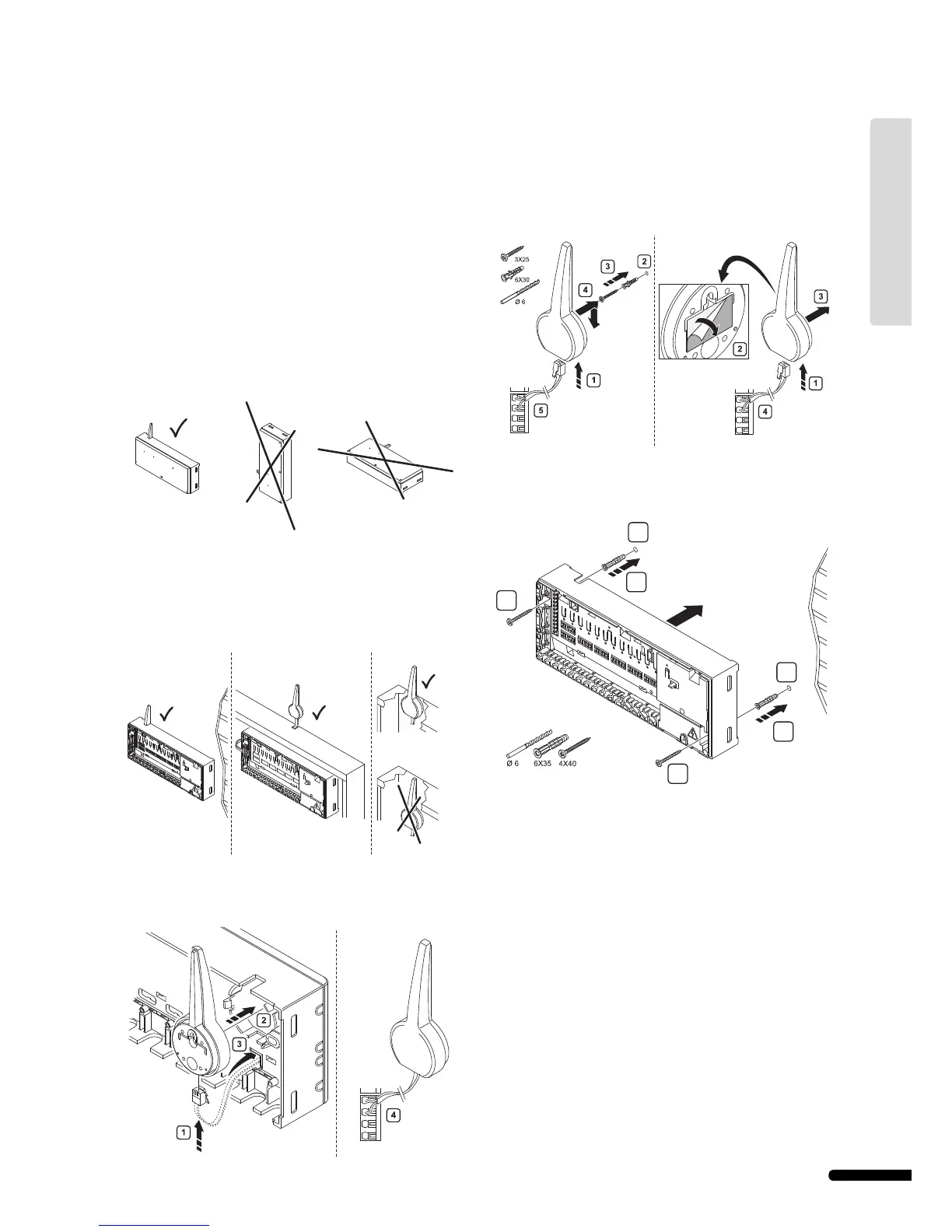

The controller must be attached horizontally on a wall. There is
a risk of overheating if there is a high ambient temperature or if
the controller is attached vertically or on a horizontal surface, as
shown in the illustration below.
3.1 Install controller antenna
The antenna can be attached to the back of the controller or
to the wall. If the controller is installed inside a metal cabinet,
the entire antenna must be outside the cabinet, as shown in the
illustration below.
Attach antenna to controller back
The illustration below shows the antenna attached to the back
of the controller using the 0.3 m antenna cable.
Attach antenna to wall
When attaching the antenna to the wall, the 3 m antenna cable
can be used. The illustration below shows the antenna attached
to the wall with screws or double-sided adhesive strips.
3.2 Attach controller to wall
The illustration below shows how to attach the controller to the
wall with screws.
9
10
11
12
9
10
11
12
9
10
11
12
1
3
2
1
3
2
3. Install Uponor Controller C-55/56
15
UPONOR CONTROL SYSTEM – INSTALLATION AND OPERATION MANUAL
