Upright TL33 - Page 27

TL33 Work Platform 4-10
Maintenance
SectIon
4.7

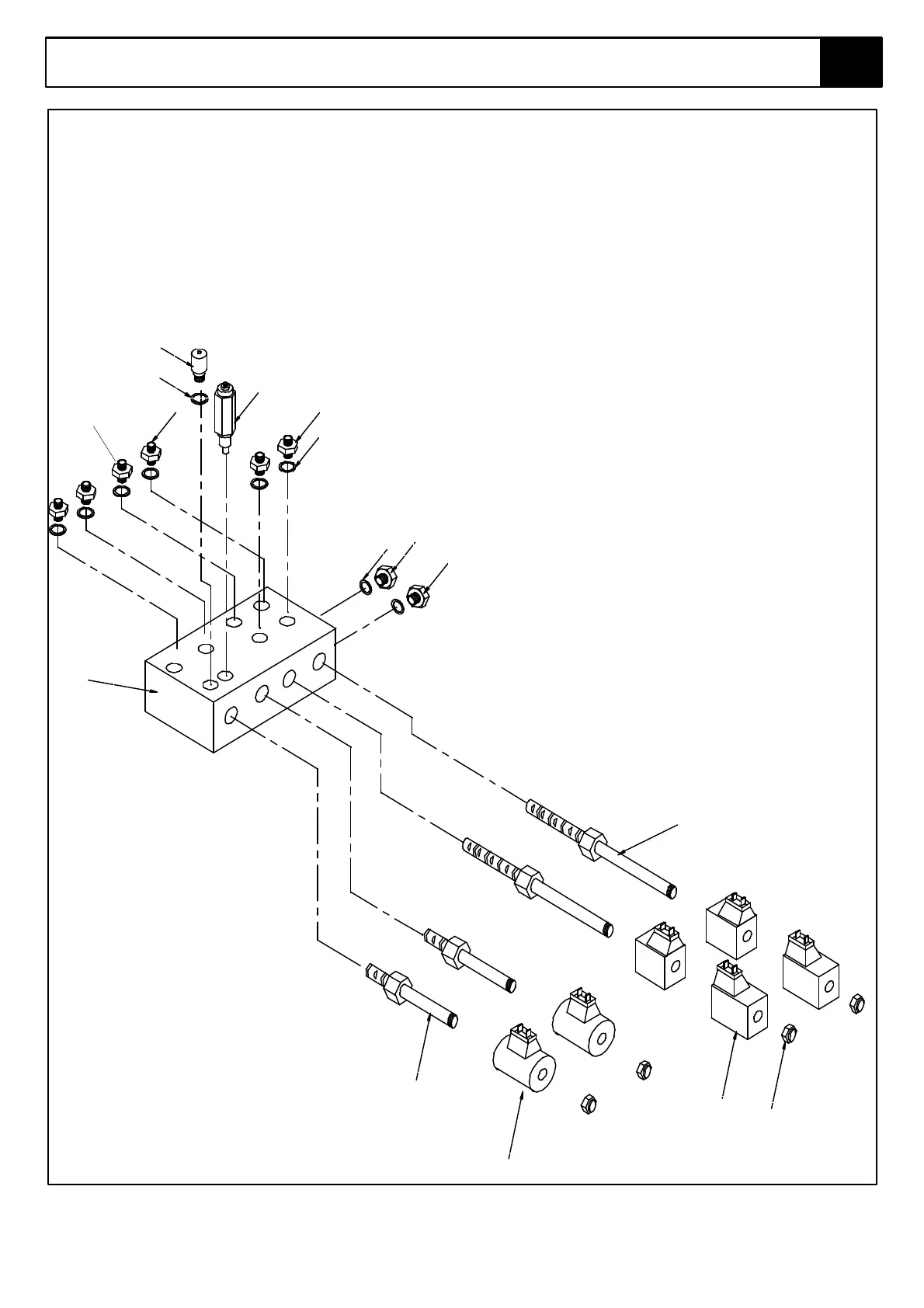

Figure 4-7: Main Manifold Block
11
10
7
3
5
6
2
4
1
8
9
9
9
13
8
12
1. Valve Block 8. Fitting (Straight 3/8” Male/Male)
2. Spool Assembly, Large (including O-Rings) 9. Bonded Seal (3/8”)
3. Coil, Large 10. Relief Valve
4. Spool Assembly, Small (including O-Rings) 11. Pressure Test Point Fitting
5. Coil Locking Nut 12. Fitting (Straight 3/8”Male - 1/2” Male)
6. Coil, Large 13. Fitting (Straight 3/8” Male - 1/4” Male)
7. Fitting (Straight 3/8” Male/Male)
