Upright TL33 - Upper Lift Cylinder; Lower Lift Cylinder; Hydraulic Cylinder Components

4-15
TL33 Work Platform
Maintenance
Section
4.12

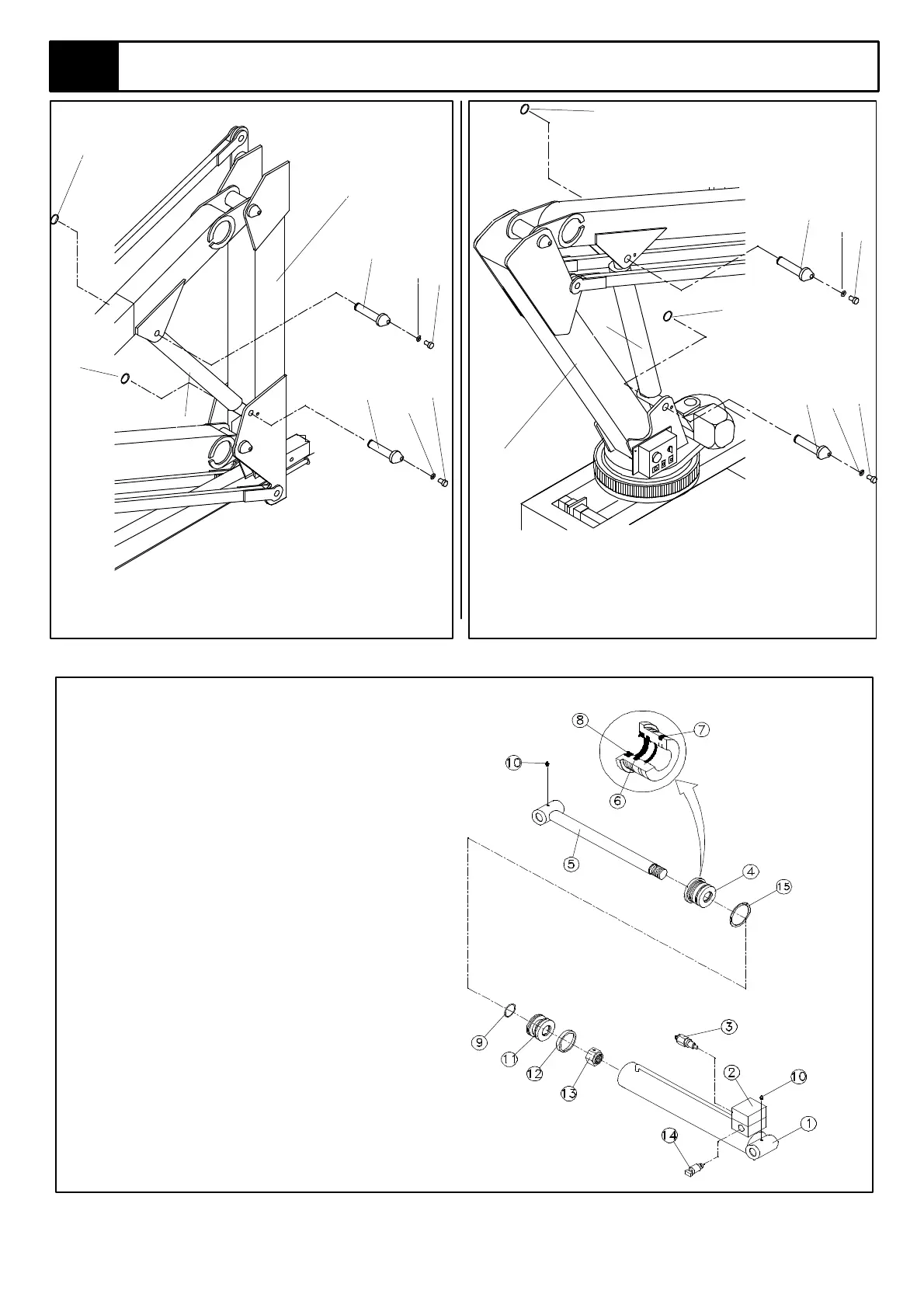

Figure 4-13: Upper Lift Cylinder
Figure 4-14: Lower Lift Cylinder
Figure 4-15: Hydraulic Cylinder Components
6
6
1
1
7
7
7
4
3
5
4
3
2
1. SECOND POST
2. ROD END PIVOT PIN
3. SPRING WASHER
4. RETAINING BOLT
5. BARRELL END PIVOT PIN
6. UPPER LIFT CYLINDER
7. CIRCLIP
1. FIRST POST
2. ROD END PIVOT PIN
3. SPRING WASHER
4. RETAINING BOLT
5.
BARRELL END PIVOT PIN
6. LOWER LIFT CYLINDER
7. CIRCLIP
4
3
2
4
3
5
7
1. CYLINDER BODY
2. VALVE BODY
3. OVERCENTRE CARTRIDGE
4. END CAP
5. ROD AND END PIVOT
6. ROD SEAL
7. O-RING
8. WIPER
9. PISTON O-RING
10. GREASE NIPPLE
11. PISTON HEAD
12. PISTON SEAL
13. PISTON LOCKNUT
14. EMERGENCY LOWERING CARTRIDGE
15. O-RING
