Upright TL33 - Page 29

TL33 Work Platform 4-12
Maintenance
SectIon
4.9
ITEM DESCRIPTION
1 Brake Assembly
2 Grease seal
3 Inner Bearing
4 Outer Bearing
5 Split Pin
6 Retaining Nut & Washer
7 Wheel Stud
8 Wheel Nut
9 Drum
10 Washer
11 Axle Nut
12 Hub Cap
Plug
Split Pin
Figure: 4.9.3
Figure: 4.9.2
Figure: 4.9.1
Figure: 4.9.4

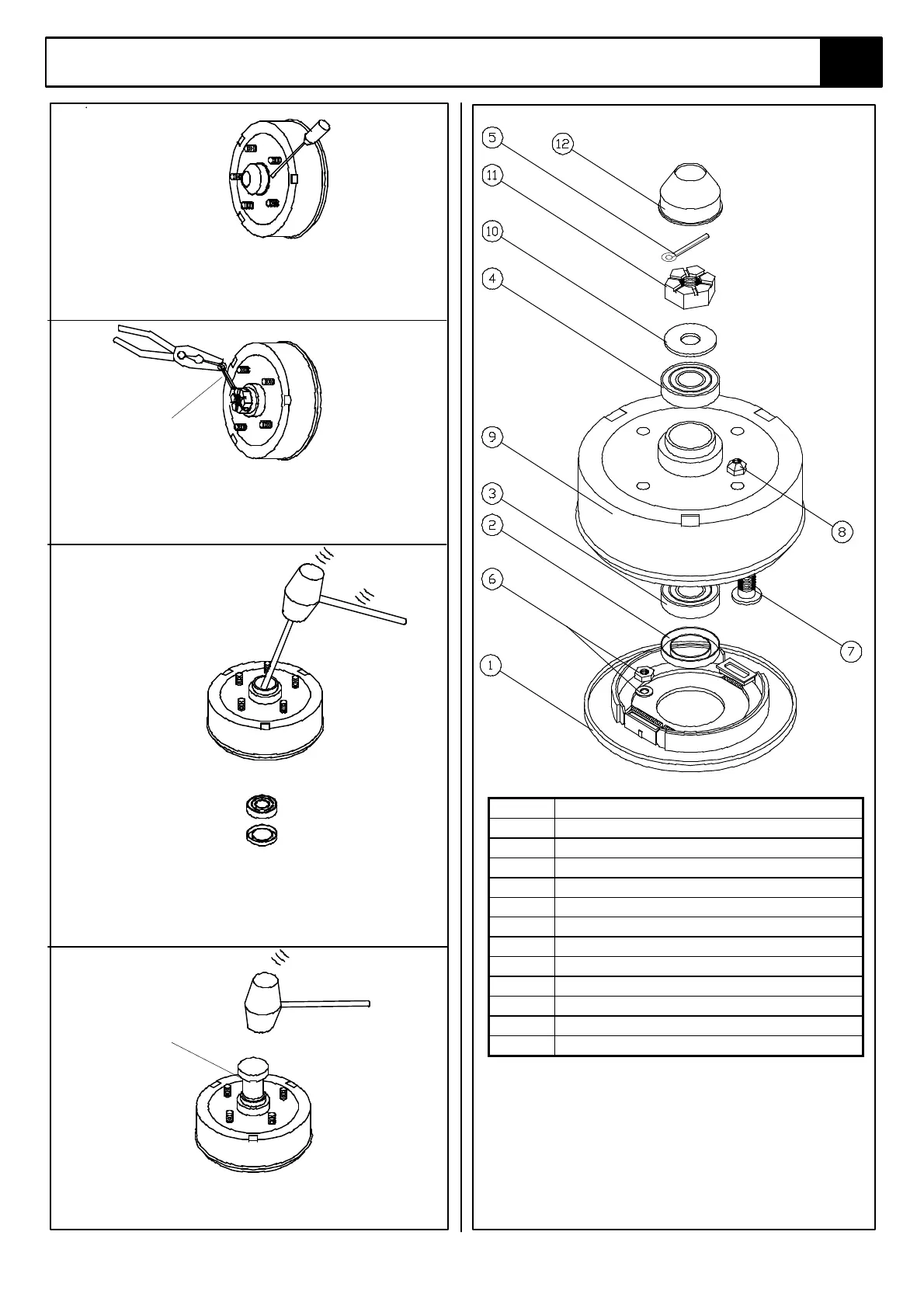

Figure: 4.10 Wheel Hub Assembly
