TL33 Work Platform
Maintenance
Section
4.13

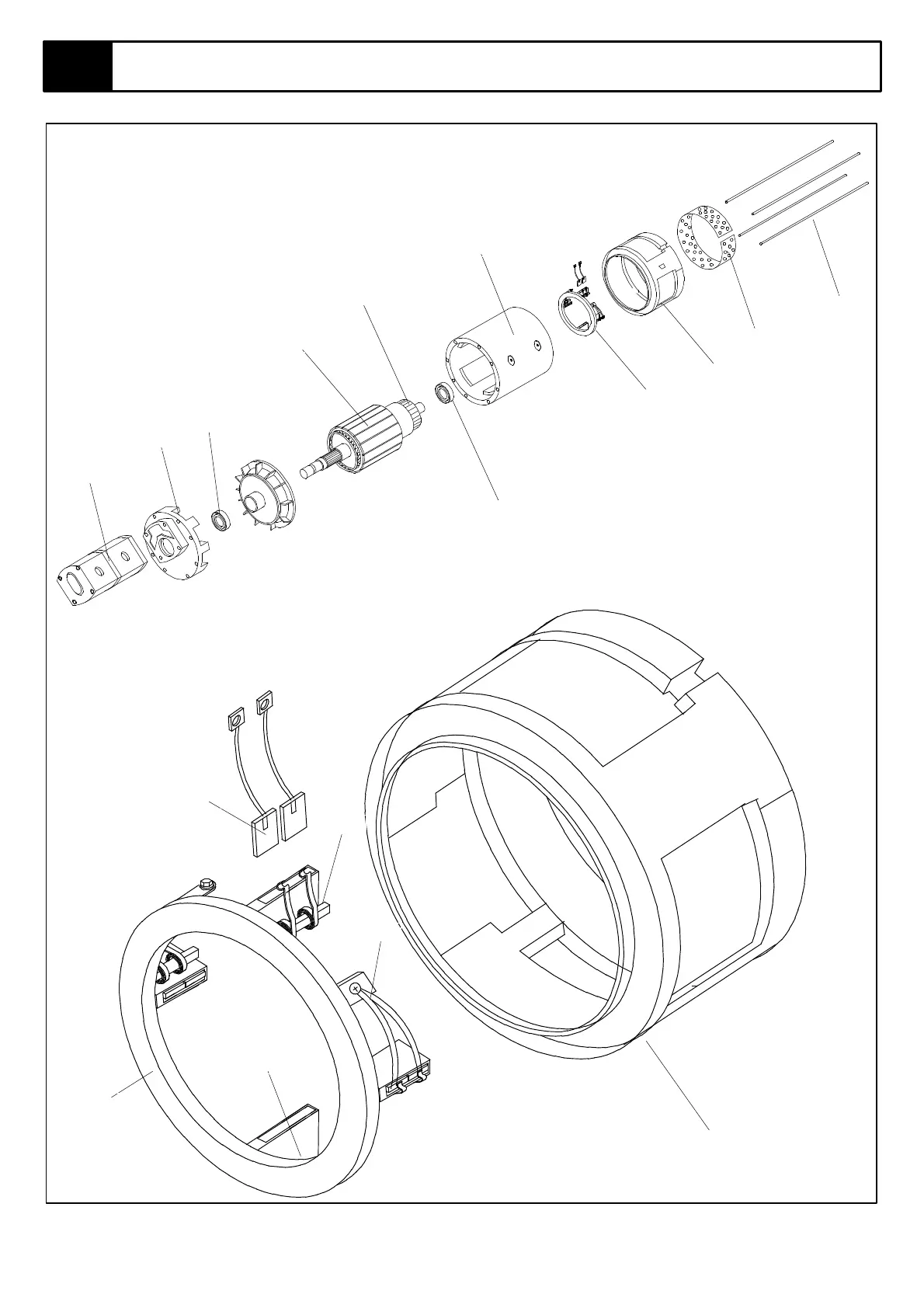

Figure 4-17: Electric Motor Assembly
9
6
7
5
13
8
4
3
2
1
11
10
13
12
15
8
1. Pump
2. Pulley End Cover
3. Pulley End Bearing
4. Armature
5. Commutator
6. Stator Housing
7. Bearing
8. Brush Housing support
9. Through Bolts
10. Brushes
11. Brush Retaining Springs
12.
Brush Cable Locking Screw
13. Commutator End Cover.
14. Inspection Screen
15. Brush Holders
