Maintenance/Repairs
70
4. Cut open the slip clutch along the marked line (see figure 9/3) with a sharp
knife.
5. Pull off the motor from the slip clutch and lay it down.
6. Pull off the slip clutch from the shaft of the agitator.
7. Pull the shaft of the agitator downwards out of the opening and remove it from
the feed container.
8. Unscrew the trunnion from the shaft; screw on a new trunnion:
9. Remove the bearing bushing from the bottom of the feed container; insert a
new bearing bushing.

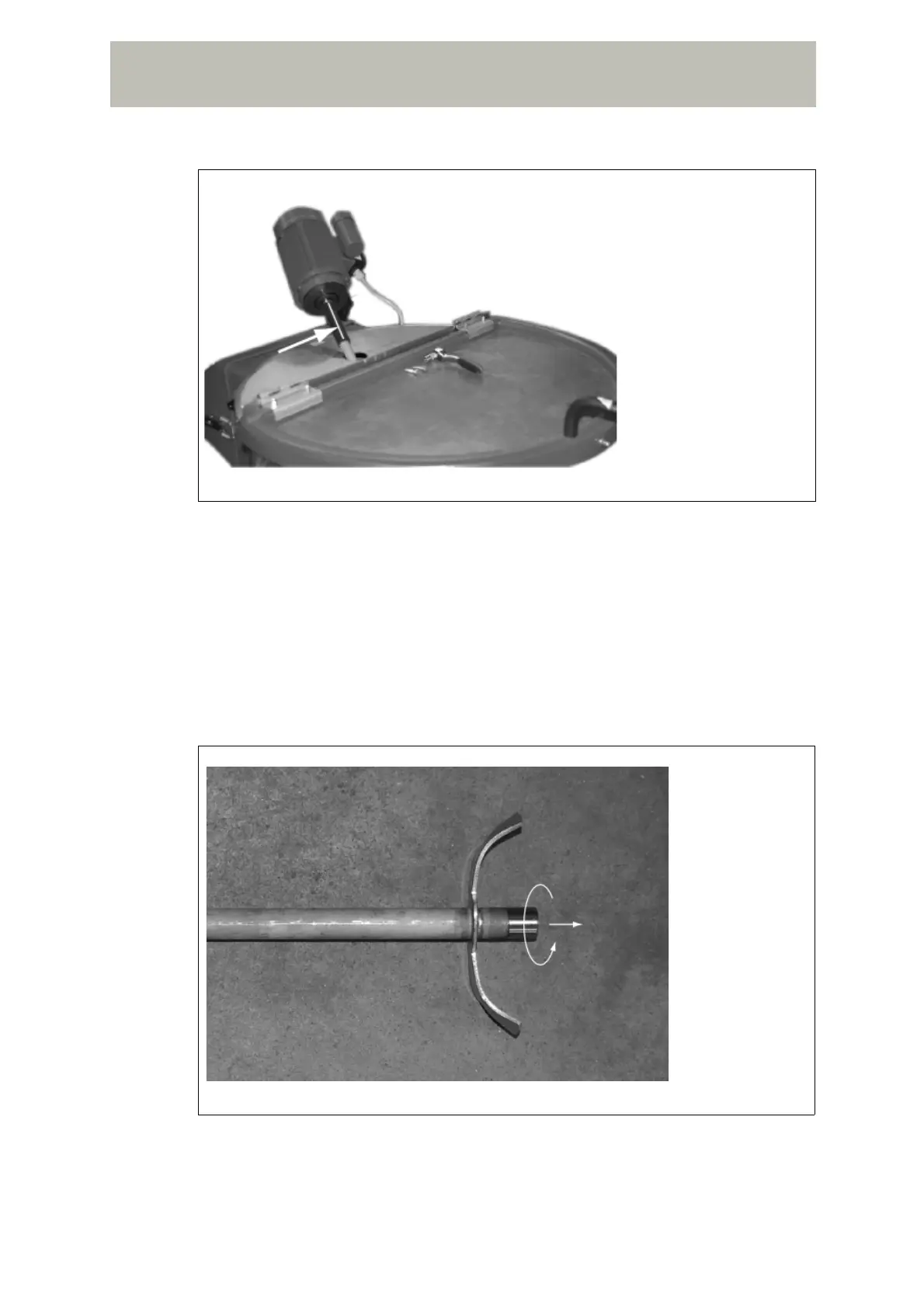

Figure 9/3: Remove slip clutch; remove motor
Figure 9/4: Unscrew the trunnion
